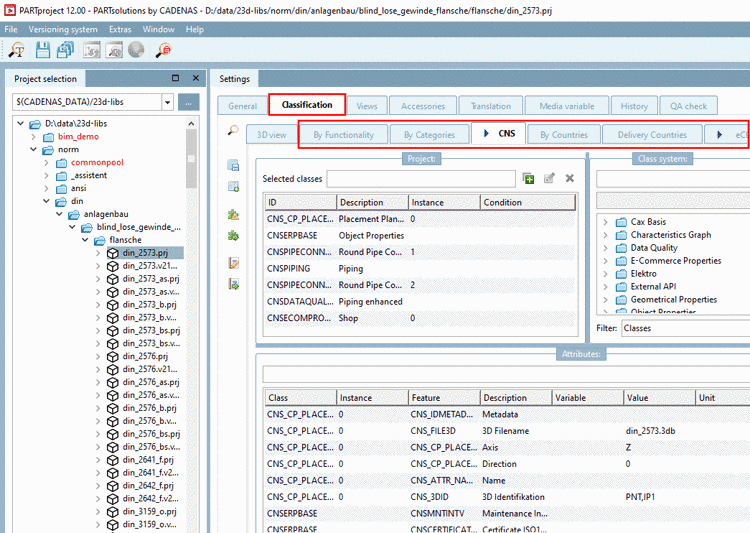

As the classification of connection points plays an important role, this area has a central place under Tabbed page Classification > List field selection 3D view. Connection points are displayed in the preview [Preview] and can be selected directly.

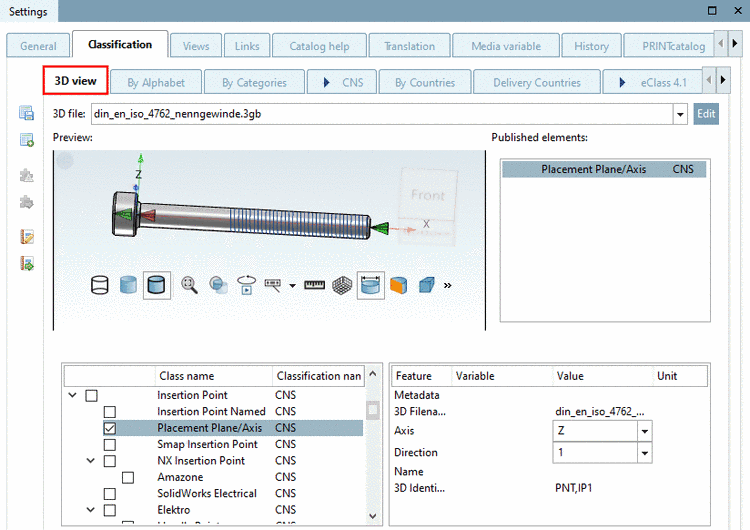

3D view " tab page

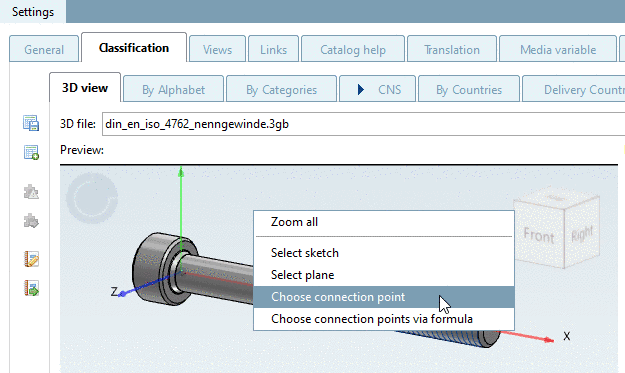

These can also be selected in the preview [Preview] using the context menu command Select connection point [Choose connection point].

	Tip
	The connection point is highlighted in red after selection in the Select connection point [Choose connection point] dialog and the name is displayed in the tooltip on mouseover.

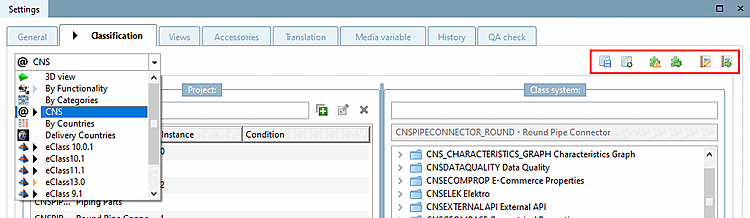

The following additional functions can be found at the top:

(Background Color): Suggested Elements [Suggested items]: Suggestions by automatic mapping that is not written to the project file and not taken into account by export. Change to black font when a value is confirmed.

(background color): Mapped elements: Values that are not in the project file, but will be taken into account by the export. become.

(gray-white background color): Fixed classified values that are entered in the project file (and can also be exported).

(background color): The class can be set on the Catalog root item or subcatalog root item. Table values or conditions are not allowed.

The behavior is analogous to the other class2class mappings.

ARCHICAD

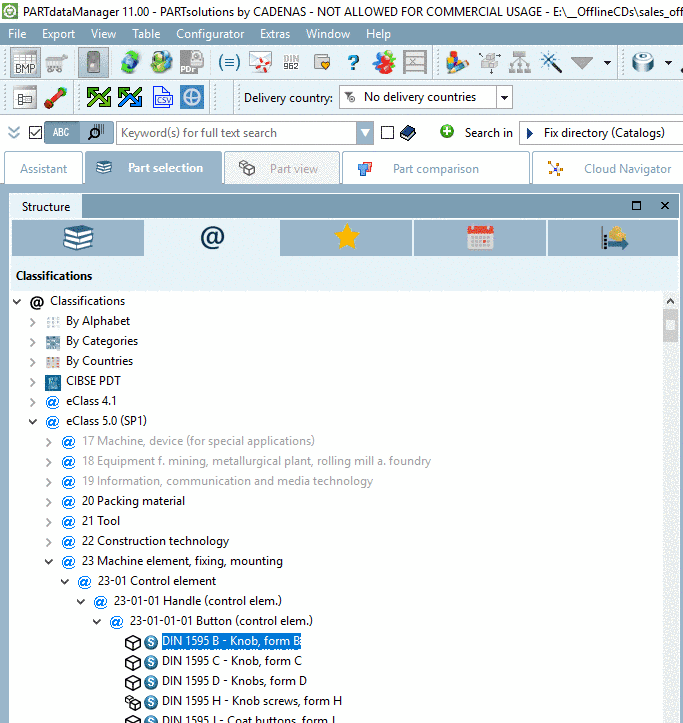

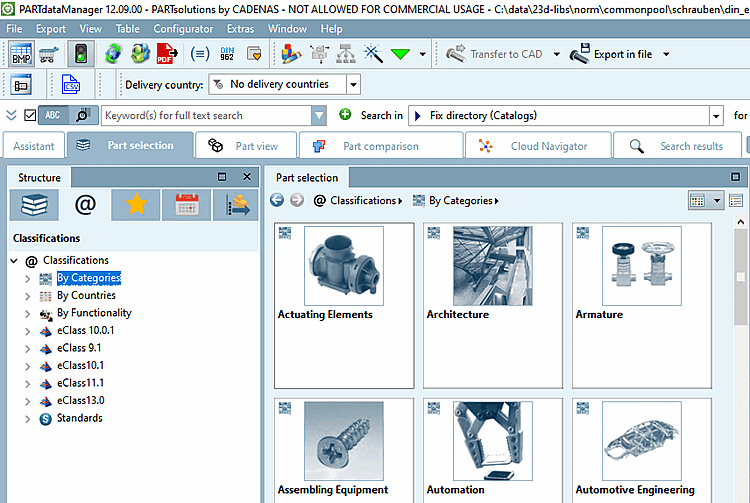

By Categories: Classification according to categories. Details can be found under Section 5.12.3.2, “Classification (By Categories) - (By Countries) - (By Functionality)”.

By Countries: Classification according to countries where the respective company sells products and/or has subsidiaries. Details can be found under Section 5.12.3.2, “Classification (By Categories) - (By Countries) - (By Functionality)”.

By Functionality: Classification according to functions. Details can be found under Section 5.12.3.2, “Classification (By Categories) - (By Countries) - (By Functionality)”.

BIMHawk PDT

CIBSE PDT

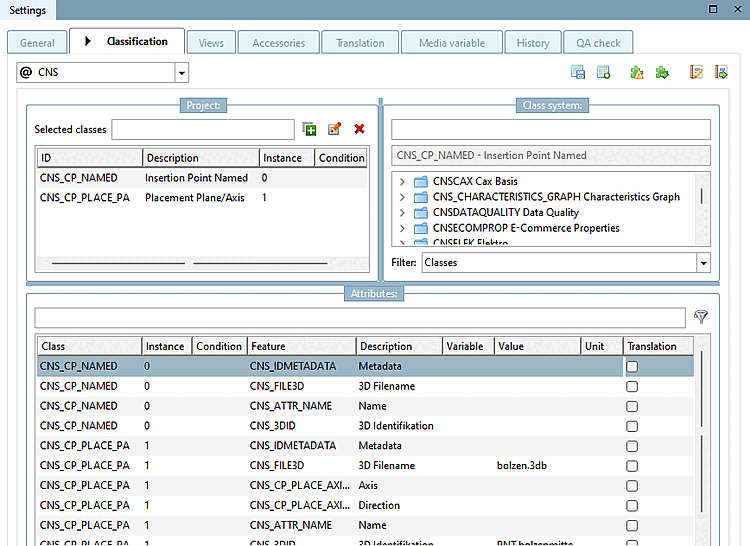

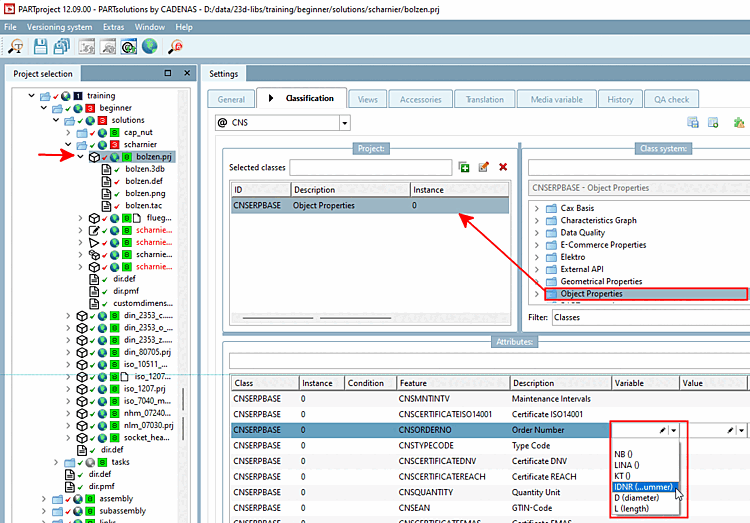

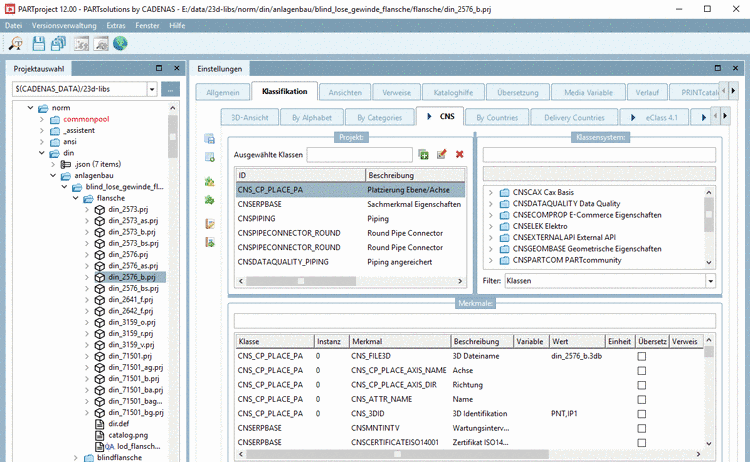

CNS: CADENAS classification used e.g. for CAD integration (placement information, connection point classification and attributes) or order number, type code, certificate information. For details see Section 5.12.3.1, “Classification (CNS) ”.

CoBie:

Delivery Countries

eCl@ss: Standardized classification system for product groups and product characteristics with the aim of enabling the electronic trading of classified products.

eCl@ss is offered as standard for the exchange of information between supplier and customer and is characterized by a four-stage hierarchical classification key with a catchword index of thousands of terms.

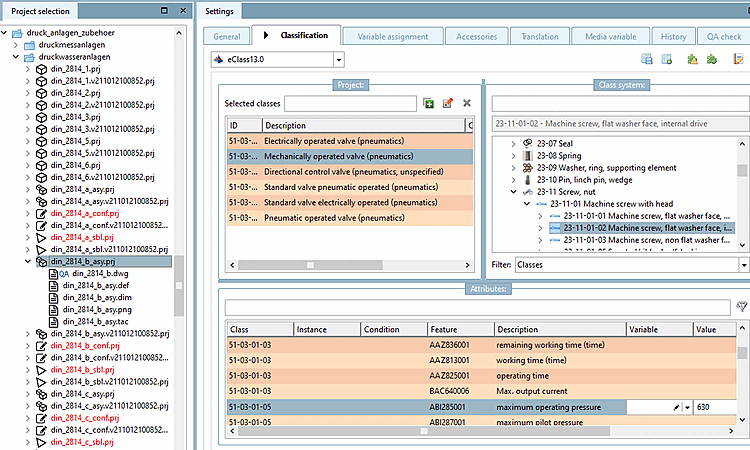

Table variables from the standard or manufacturer catalogs or fixed values can be assigned to eCl@ss characteristics via the Class variables dialog box. These eCl@ss characteristics (terms) can later be searched for in the PARTdataManager can be searched for later.

Class variables using the example of eCl@ss

Electro Quality

ETIM (ElectroTechnical Information Model) 4.0 to 9: Classification based on the requirements of the electrical industry

FSF: Classification for track and rail vehicles

FCSI:

ICS (International Classification Standards): International classification system for recording all economic sectors and activities in which technical standards are applied

IFC: Classification according to an international open standard for the exchange of building models

IFC4

OmniClass

OmniClass 2006

PDT

Revit

Standards: Standardization system supplied by CADENAS. It is structured in three levels according to the DIN number.

Standards BN

Standards GN

Standards Wuerth

Uniclass 2015:

UNSPSC: Product classification specified by the United Nations. The standard represents a universal classification scheme for a wide variety of product groups for worldwide use.

VDI 3805: Technical building services
