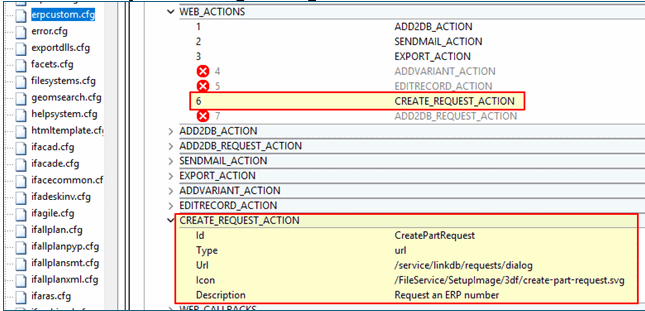

The user only has the CREATE_REQUEST_ACTION button (6) visible (and the export button). This calls up a creation dialog where the user can, for example, select the desired material and enter a comment.

[WEB_ACTIONS]
3= EXPORT_ACTION
6=CREATE_REQUEST_ACTION

Button from CREATE_REQUEST_ACTION: /

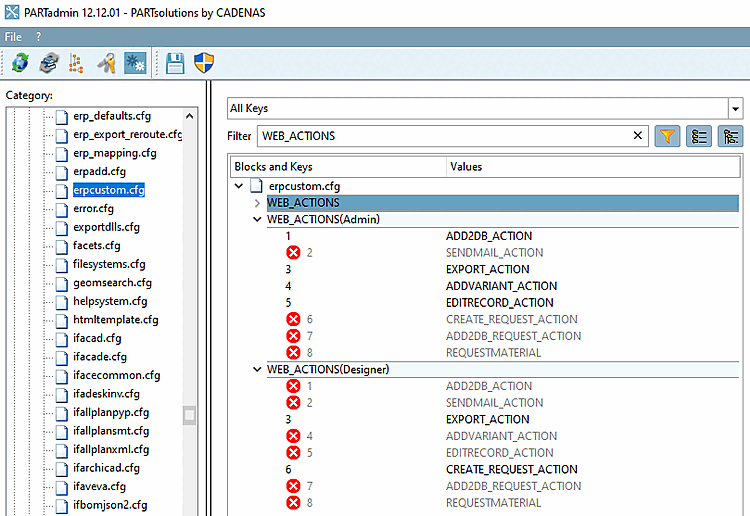

The admin has the option of creating new rows (1), creating variants (4) or fully editing a data record using EDITRECORD_ACTION (5).

[WEB_ACTIONS]
1= ADD2DB_ACTION
3= EXPORT_ACTION
4= ADDVARIANT_ACTION
5= EDITRECORD_ACTION

The dialog for requests is created in the [REQUESTDIALOG] block (similar to [USERDIALOG]).

Example:

[REQUESTDIALG]
Werkstoff= CNS_MATERIAL,Werkstoff:,1,1,,1,1,CNS_material.cfg,full,.+,

As a rule, fewer fields are displayed here than in the [USERDIALOG] block, as the requesting user does not need many of them and is not allowed to set them.

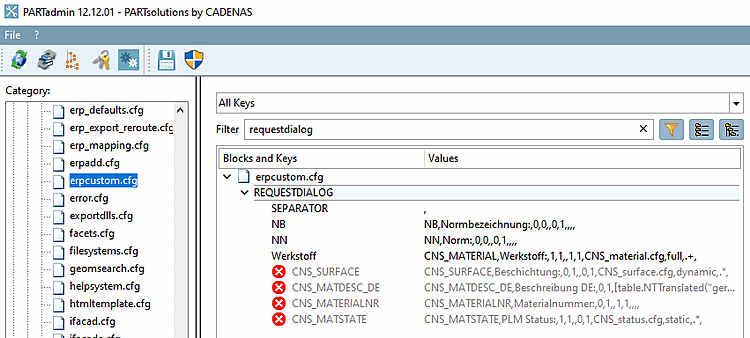

The illustration shows only the input field for the material next to NB and NN.

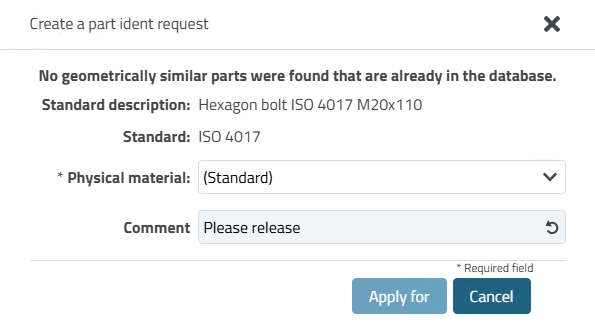

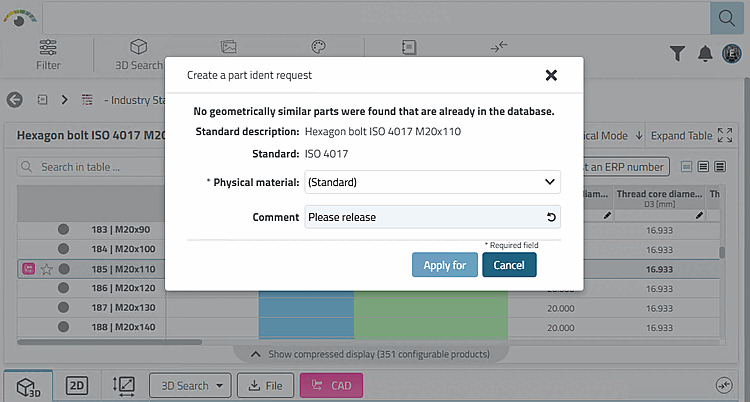

Input window "Apply for ID number [Create a part ident request]" according to the above setting

The [USERDIALOG] block is used for processing by the admin, standards body and key user.

Note The [USERDIALOG] block is always used in the workflow at Section 5.23.8.3.3, “Request with attachment in the Part Number Manager plus LinkDB entry ” and specifications are always made via roles.
