3.1.10.1.2.2.  Scaling and Paper formats
3.1.10.1.2.2.1. Scale, position sketch elements in 2D view
3.1.10.1.2.2.2. Adjust paper format in 2D view

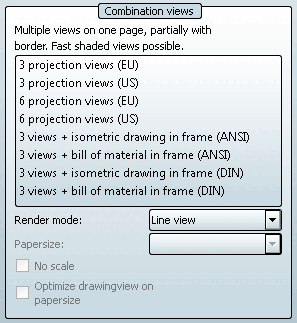

For the following views, the display can be exported with a sketch frame or with a sketch frame and integrated BOM-list.

  • 3 views + isometric drawing in frame (ANSI)

  • 3 views + isometric drawing in frame (DIN)

  • 3 views + isometric drawing in frame (JIS)

  • 6 views + isometric drawing in frame (JIS)

  • 3 views + bill of material in frame (ANSI)

  • 3 views + bill of material in frame (DIN)

[Note]Note

Depending on type the respective paper formats are displayed. On this see under Section 3.1.10.1.2.2.2, “Adjust paper format in 2D view”.

The following adjustments may be made:

See the following sections for more information.

3.1.10.1.2.2.1.  Scale, position sketch elements in 2D view

Scale sketch elements:

  1. Activate the editing mode [Edit mode]:

    • Click into the view area with the right mouse button.

      Activate the editing mode [Edit mode] in the context menu

    • Or click on the respective button in the toolbar alternatively.

  2. Click into the sketch element.

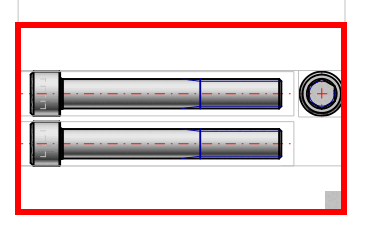

    -> The red frame with the finger shows up in the right bottom corner.

Activate edit mode [Edit mode] Activate edit mode

Activate edit mode [Edit mode]

  1. Deactivated:

    -> The view changes either steplessly or gradually in defined scales. See "No scale [No scale] " in the next point.

Scale - 1: 10

Scale - 1: 10

No scale

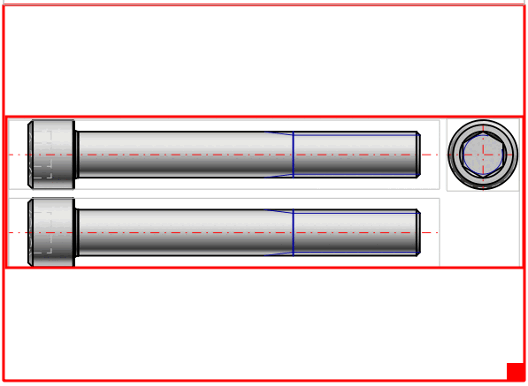

No scale

No scale

  • Option No scale deactivated (scale used):

    Within the given frame the most fitting scale is used. The scale is displayed in the title (possibly only visible after enlargement).[100]

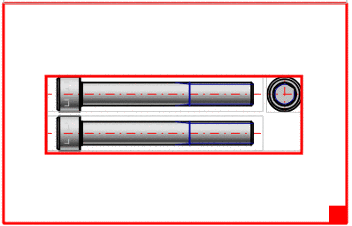

    Scale 1:10

    Scale 1:10

    Scale 1:10

    Scale 1:10

    Scale 1:5

    Scale 1:5

  • Option No scale activated:

    Within the given frame the entire available space is used. (Usually the derivations then increase in size.)

3.1.10.1.2.2.2. Adjust paper format in 2D view

Select the desired format in the list field under Paper formats (either A0 to A4 for DIN or A to E for ANSI)[101]

Select paper format

Select paper format

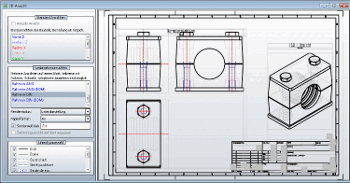

Paper format A3 -> Default scaling 2:1

Paper format A3 -> Default scaling 2:1

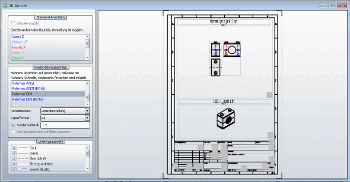

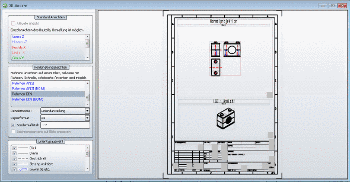

Paper format A4 -> Default scaling 1:2

Paper format A4 -> Default scaling 1:2

-> Scaling is adjusted automatically. As described under Section 3.1.10.1.2.2.1, “ Scale, position sketch elements in 2D view”, you may change it.



[100] The possible scales are administratively defined in the configuration file. See Section 1.6.5.2, “ 2dscales.cfg - Apply scale for 2D view ” in PARTsolutions Administration - Manual .

[101] Default values for the paper formats are specified in the configuration file. See Section 7.11, “Docking window "2D derivation " - Create your own combination views (*.dw) ” in eCATALOGsolutions - Manual.
