Each part export creates a new entry with the defined characteristic values in the corresponding CADENAS Routing Part Library (mm or inch).^[59]

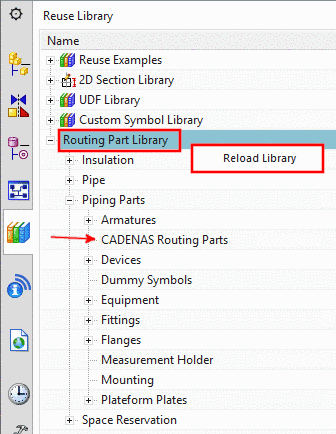

To ensure that all available parts are also displayed, please execute the Reload Library command.^[60]

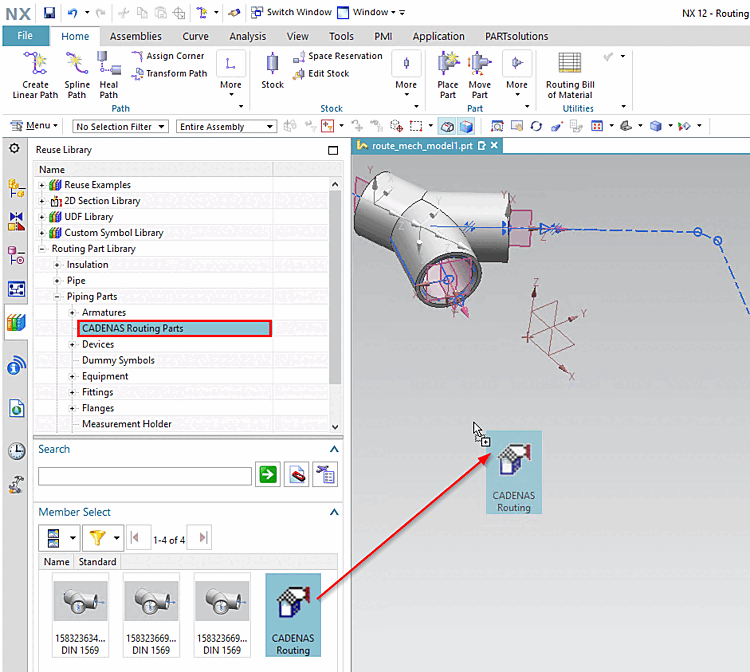

Parts can directly be drawn by Drag & Drop into an opened assembly.

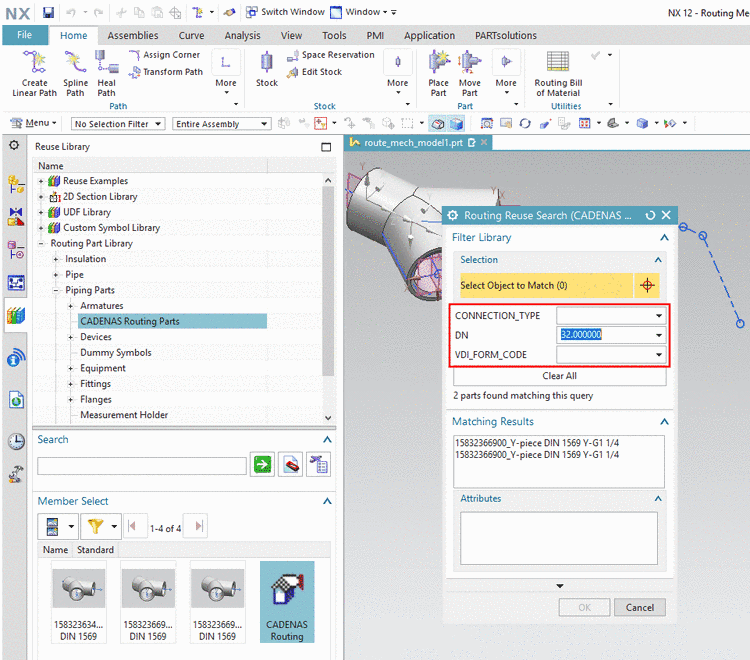

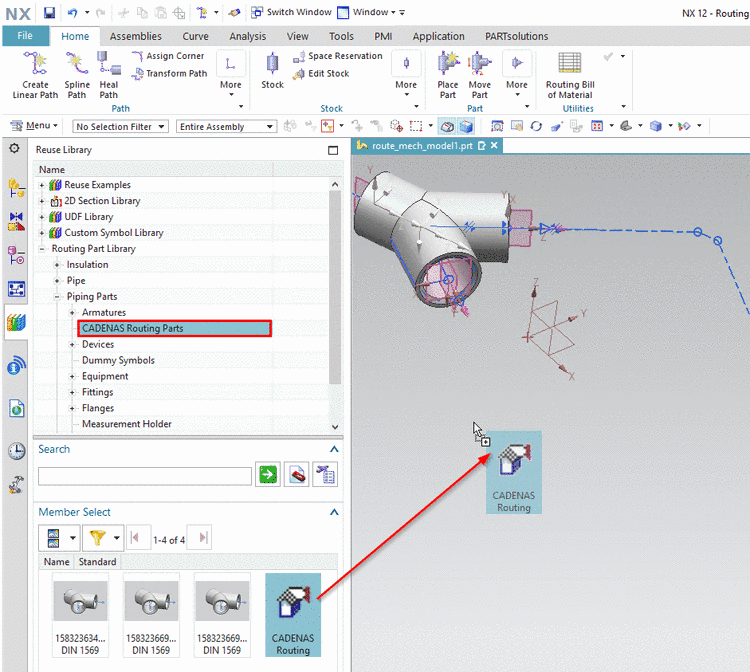

If the CADENAS routing node is dragged into the component, the Routing Reuse Search dialog box (CADENAS Routing Parts) opens. You can filter the library parts accordingly by selecting values in the list fields.

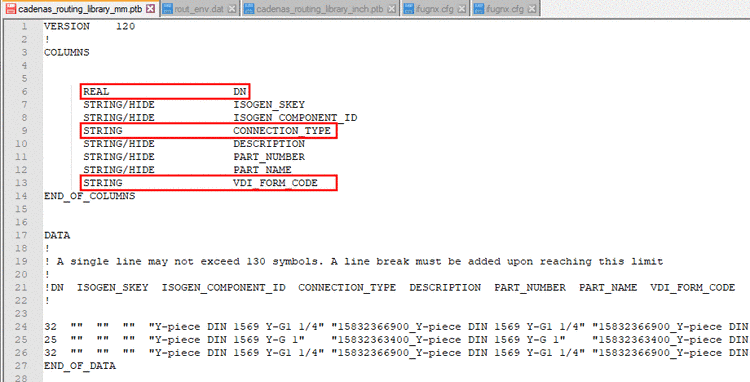

The list fields displayed correspond to the characteristics created in cadenas_routing_library_mm.ptb and cadenas_routing_library_inch.ptb(which are not set to HIDE).

Information on adding further attributes can be found under Section 5.12.13.6.5, “Transfer additional classification attributes”.
