7.7.1.2. Call within a component

7.7.1.2.4. Context menu on the side wall of an ellipse

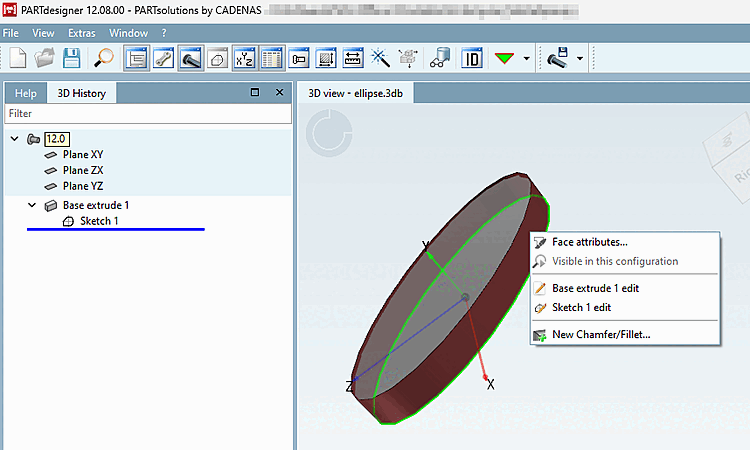

Docking window "3D view" Context menu on the side wall of an ellipse

Area attributes [Face attributes]
Area attributes can be displayed & created / edited. Here you will find a detailed description of the function: Area attributes
Edit creating elements
Allows you to edit the basic areas. Here you will find detailed information on the basic functions: Extrude / Rotate / Edit
Create new chamfer/rounding... [New Chamfer/Fillet...]
Creates a new chamfer or rounding on the selected surface.

	Note
Component surfaces with few or no configuration options in the context menu The context menu is severely restricted for some shapes or surfaces of a component. These include the side wall of an ellipse, the connecting surfaces of a sweep and the individual parts of pipes. For the side wall of an ellipse, you can view/add or change the surface attributes, edit the base surfaces and add a chamfer/rounding. The context menu of the connecting surfaces of a sweep, the individual parts of pipes, points and lines only offer editing of the basic surfaces.

Note

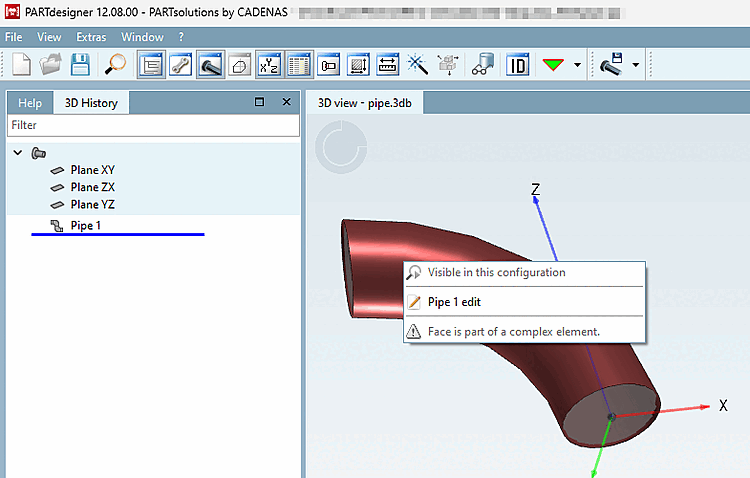

Component surfaces with few or no configuration options in the context menu

The context menu is severely restricted for some shapes or surfaces of a component. These include the side wall of an ellipse, the connecting surfaces of a sweep and the individual parts of pipes.

For the side wall of an ellipse, you can view/add or change the surface attributes, edit the base surfaces and add a chamfer/rounding.

The context menu of the connecting surfaces of a sweep, the individual parts of pipes, points and lines only offer editing of the basic surfaces.
