5.10.2.5. Add dimensioning directly before transferring to PARTdataManager

You can add a dimensioning to a 2D derivation directly before exporting.

Hereto proceed as follows:

  1. Select a standard view such as Front +Z.

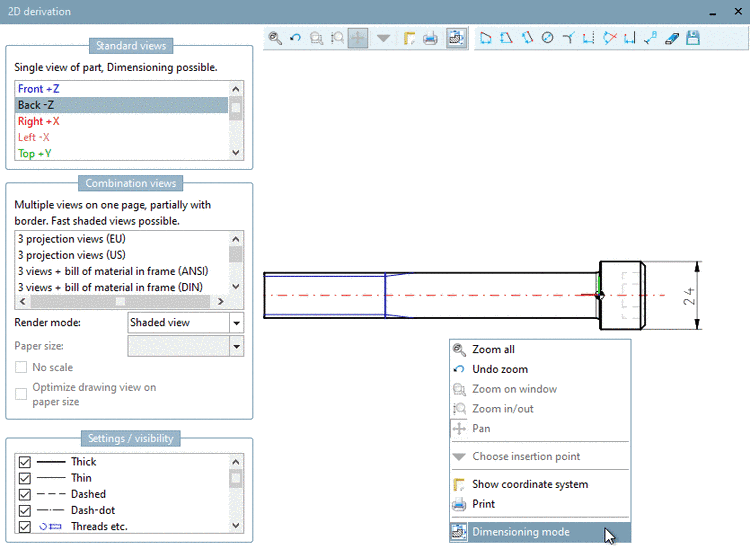

  2. Execute the Dimensioning mode command in the context menu of the view.

  3. Set the desired dimensioning.

  4. Click on Transfer to CAD.

  5. The part is transferred to the CAD system with dimensioning.

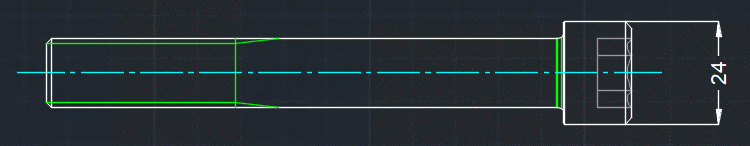

    Part in AutoCAD

    Part in AutoCAD

[Note]Note

Detailed information on the single toolbar tools can be found under Section 7.9.3.15.3, “ Attributes -> Dimensioning mode ”.
