Topology variables can be displayed alongside the standard table information. Use the Topology variables checkbox to activate / deactivate the display as required. Characteristic values are not necessarily displayed in the characteristic attribute table, especially for own parts catalogs. The display is particularly useful here.^[49]

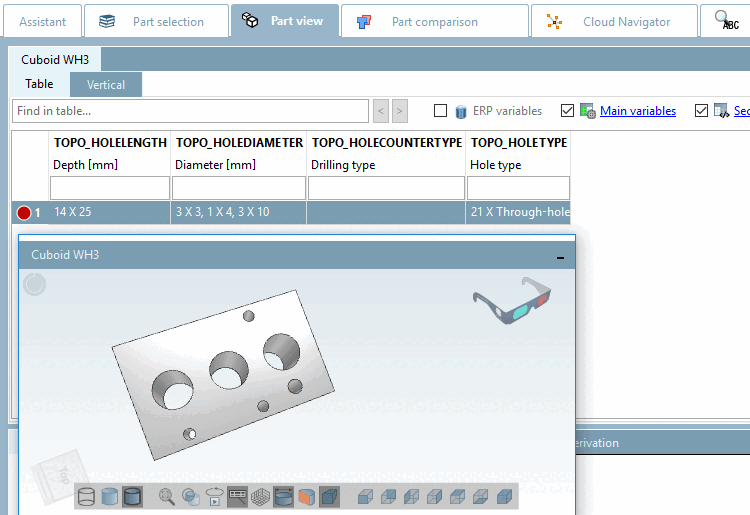

Topology variables in table

The prerequisite is that the desired topological columns have been defined in the settings dialog. To do this, open the settings dialog by clicking on Table settings and activate the checkbox under Show topology values [Show topological values]. You can then activate/deactivate the desired topology types.

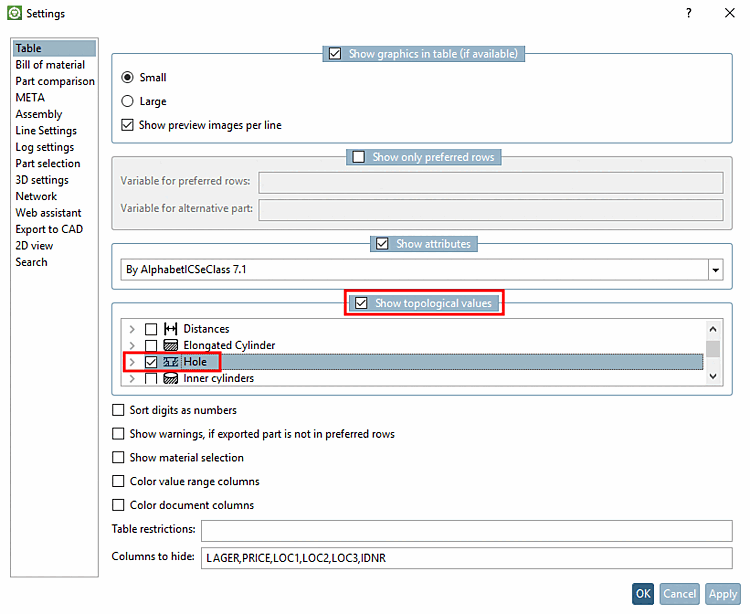

Settings: Display topology values [Show topological values]
