1.3.3.6.6.4. LinkDB search index

Create LinkDB search indexes [Create LinkDB search index] / Create all LinkDB search indexes [Create all LinkDB search indexes] / Create non-existent [Create not existing LinkDB search index] LinkDB search indexes / Update LinkDB search indexes (at project level)

[Note]Note

Please note that the LinkDB search index must be regenerated if you manually add projects to the link database or change role settings.[a]

The server requirement is at least 32GB RAM.

[a] In productive use, this will usually take place automatically in the night update (see Section 4.13.3.3, “Automated and cyclical update of data ”).

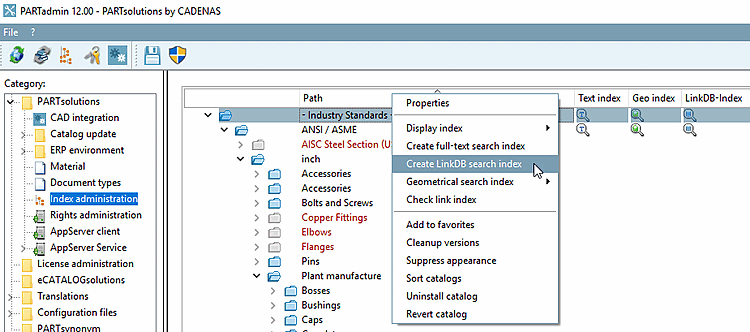

You can find the corresponding command in PARTadmin -> Index management [Index administration] -> Context menu command of the catalog.

The blue database icon shows that a LinkDB index is available (but not necessarily up-to-date), otherwise it is gray with a red x .

The blue database icon The blue database icon shows that a LinkDB index is available (but not necessarily up-to-date), otherwise it is gray with a red x . shows that a LinkDB index is available (but not necessarily up-to-date), otherwise it is gray with a red x The blue database icon shows that a LinkDB index is available (but not necessarily up-to-date), otherwise it is gray with a red x ..

The LinkDB [LinkDB search index] search index contains all role information.

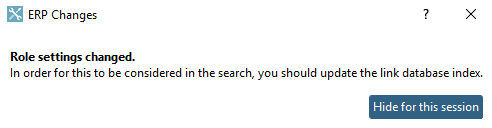

In case of role changes, a note is displayed in PARTadmin that it is necessary to update the LinkDB search index.

Ideally, the LinkDB search index should be updated for all catalogs used. (The time required is manageable)

Relevant role changes are: (see Section 4.7.3.1, “ Roles: General " tab page ”)

  • Preferred ranges

  • Filter condition for datasets

  • Viewing condition for table rows

  • Columns to be displayed

  • Columns not to be displayed (export only)

  • Display condition for parts selection

If the PARTdataManager Search indexes are not available without errors, the message Missing search indexes appears.

When starting PARTdataManager the system checks whether all indices are available without errors. If not, the Missing search indexes dialog is displayed with a corresponding message.

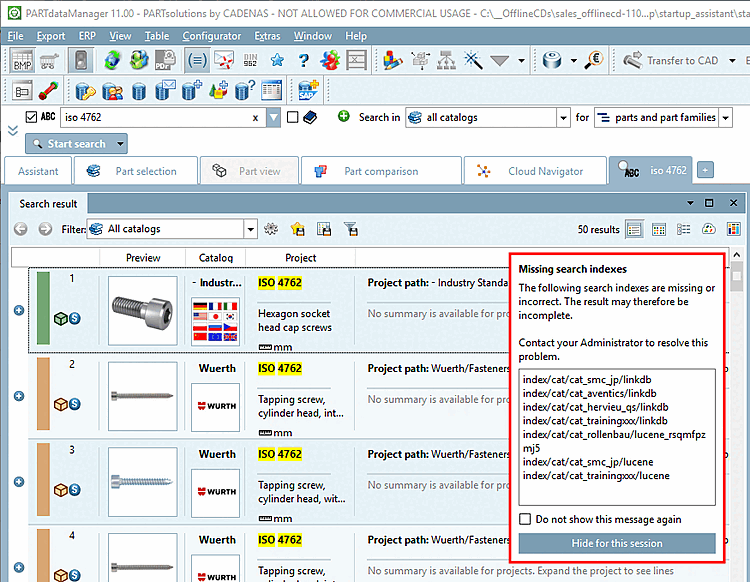

Exemplary message in PARTdataManager

Exemplary message in PARTdataManager
