2.6.2.5.  Insert model - Pattern recognition

If there are patterns in the placement section, these are recognized and a corresponding dialog appears.

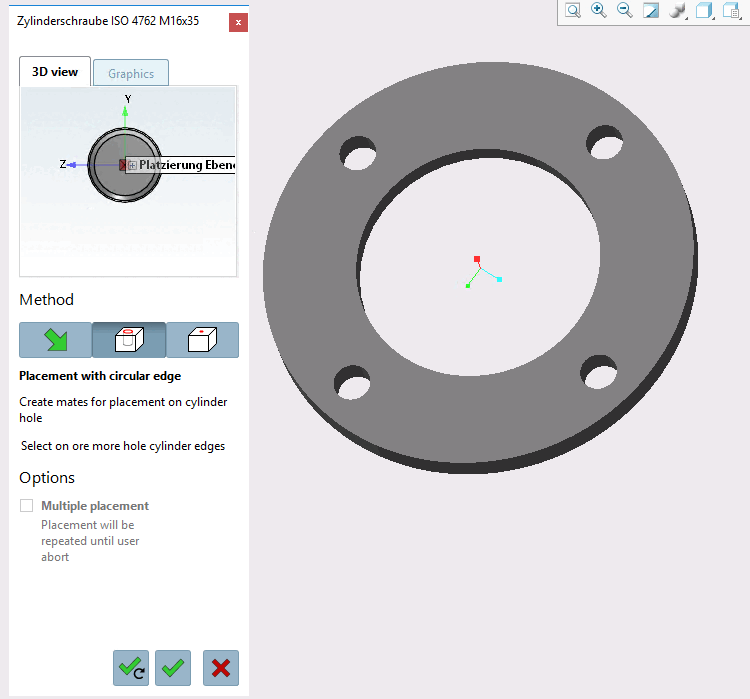

Initial situation: After you have transferred the placement part to the CAD system using Transfer to CAD the view switches back to CAD and the placement dialog opens.

The PARTsolutions placement dialog opens.

The PARTsolutions placement dialog opens.

  1. Click on the In hole button.

  2. Select one or several holes.

    One hole selected

    One hole selected

  3. Click on the Place multiple button (dialog remains open at the end) or Place once .

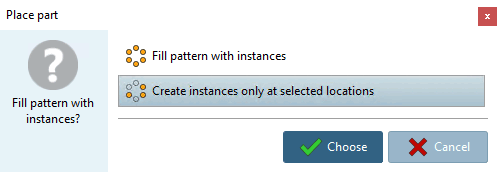

    -> The Place component [Place part] dialog box appears with the query "Would you like to fill the design with instances? "

    Now you have two options:

    • Fill pattern with instances

    • Create instances only at selected locations

    Click on the Select [Choose] button.

    -> The desired instances will be placed.

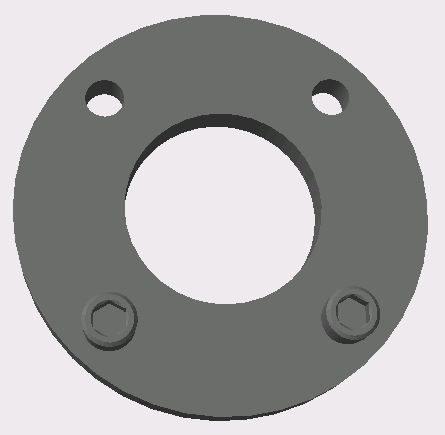

    Instances only at selected positions

    Instances only at selected positions

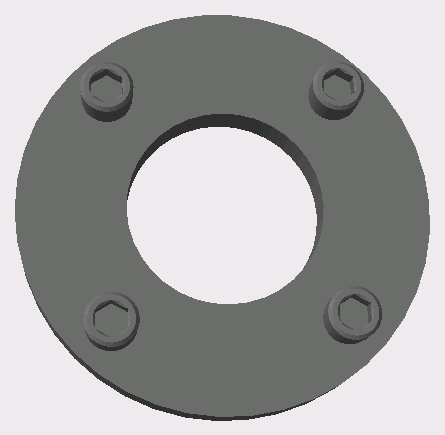

    All instances filled

    All instances filled

  4. If necessary, close the PARTsolutionsplacement dialog using Close dialog .
