3.1.6.1.4.  Start standard search or Cloud Navigator or Cloud Map?

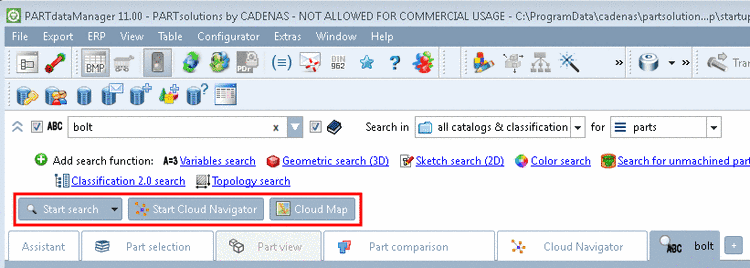

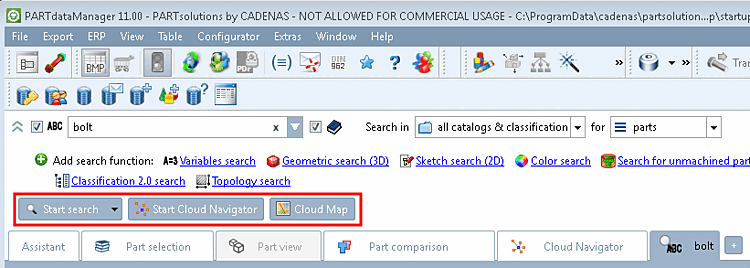

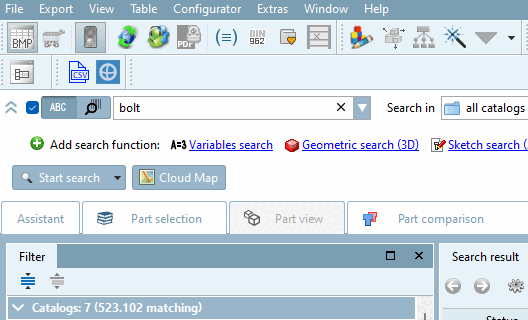

"Start search [Start search] " or "Start Cloud Navigator [Start Cloud Navigator] " or "Cloud Map [Cloud Map] "

"Start search [Start search] " or "Start Cloud Navigator [Start Cloud Navigator] " or "Cloud Map [Cloud Map] "

The quality of search results is identic independent of the chosen mode.

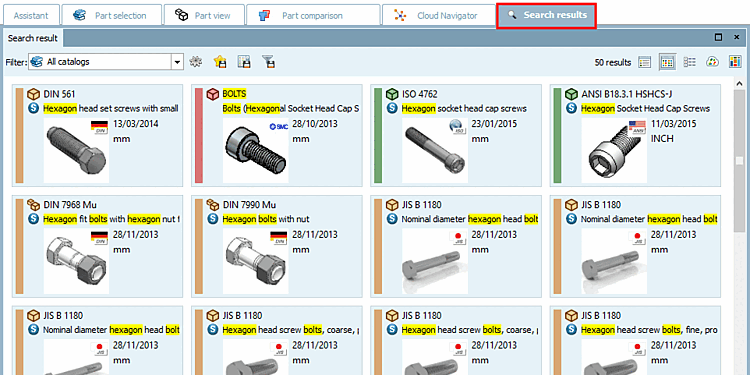

  • When you Start search, the search results are displayed below on the Search results tab page.

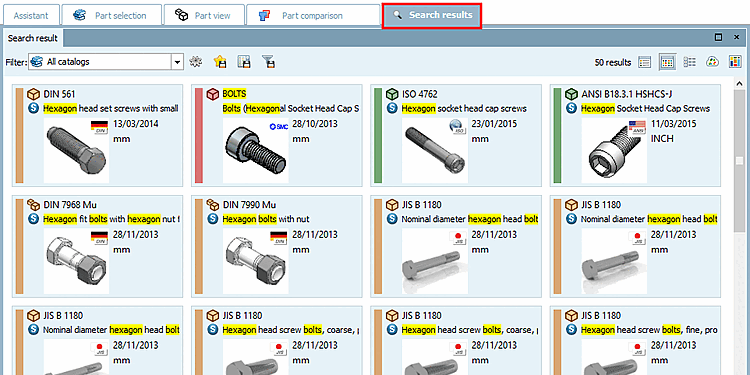

    Search results with "Symbols [Symbols] " display option

    Search results with "Symbols [Symbols] " display option

    Detailed information can be found at Section 3.1.6.7, “ Search results ”.

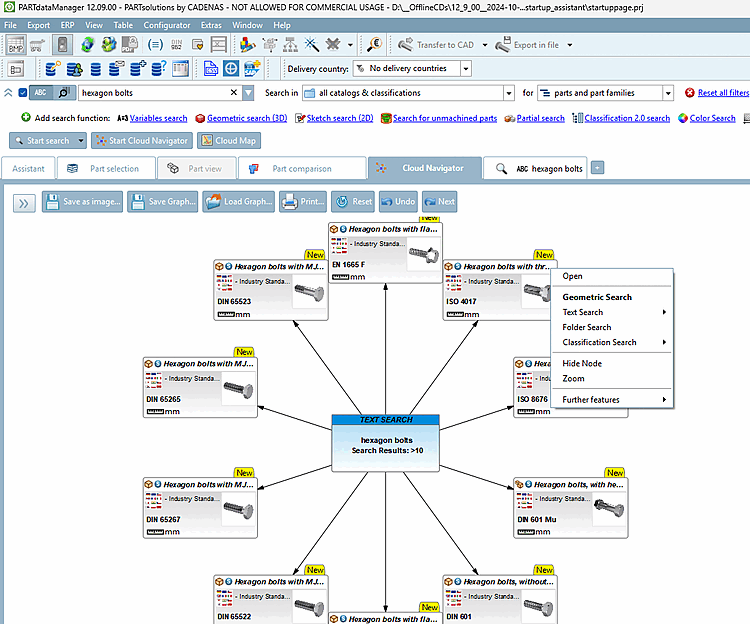

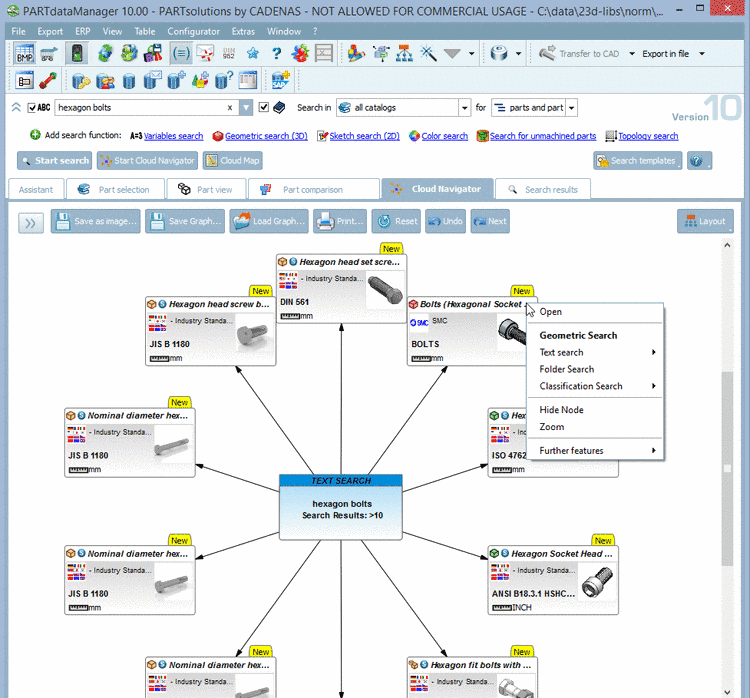

  • When you Start Cloud Navigator, the search results are displayed below on the Cloud Navigator tab page.

    You can find detailed information on this under Section 3.1.6.11, “ Cloud Navigator ”.

    The Cloud Navigator is a completely independent mode.

    The determination of the search method, the search result output and the subsequent determination of another search method takes place within a graphic depiction (the cloud).
