5.1. Translate values in ERP fields

Values in ERP fields can now be translated.[52]

Example

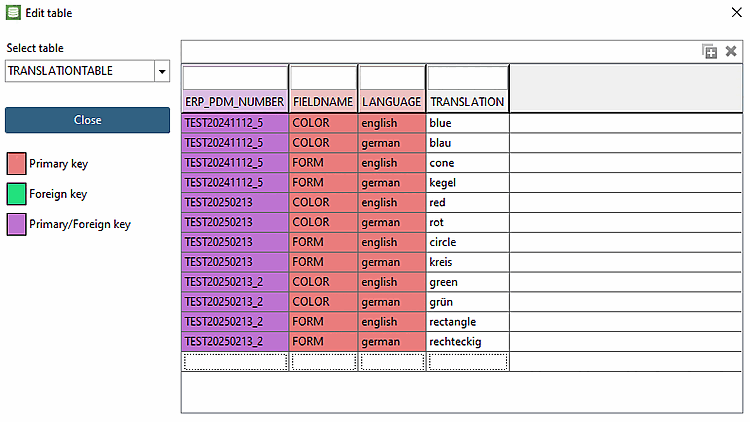

  1. Fill the TRANSLATIONTABLE with the desired values.

    PARTlinkManager > "Extras [Extras]" menu > Database > Edit additional tables

    PARTlinkManager > "Extras [Extras]" menu > Database > Edit additional tables

    [Note]Note

    As a rule, filling is automated via scripting.

    Translations can be added, fetched and removed in vbs/c++:

    • addRecordToTranslationTable

    • getValuesFromTranslationTable

    • removeRecordFromTranslationTable

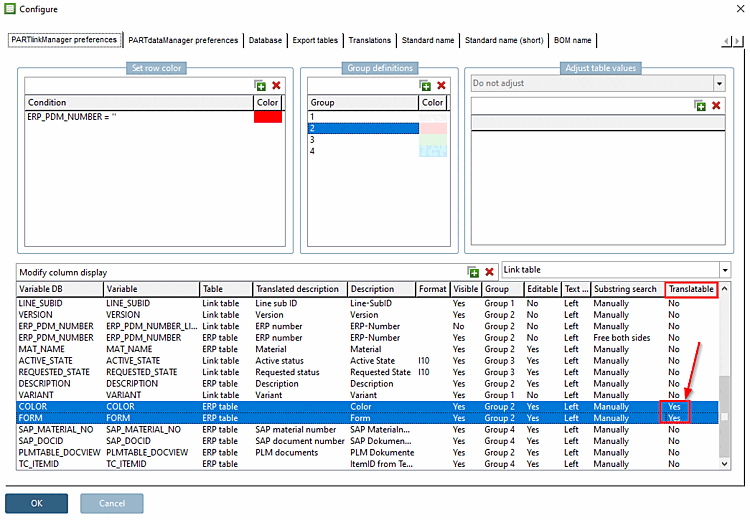

  2. Under Configure column display [Modify column display], set the option to Yes in the Translatable column for the desired variables.

    PARTlinkManager > "Extras [Extras]" menu > Configure ERP environment

    PARTlinkManager > "Extras [Extras]" menu > Configure ERP environment

  3. Open 3Dfindit or PARTdataManager.

    -> The values are displayed in the language of the respective user interface.

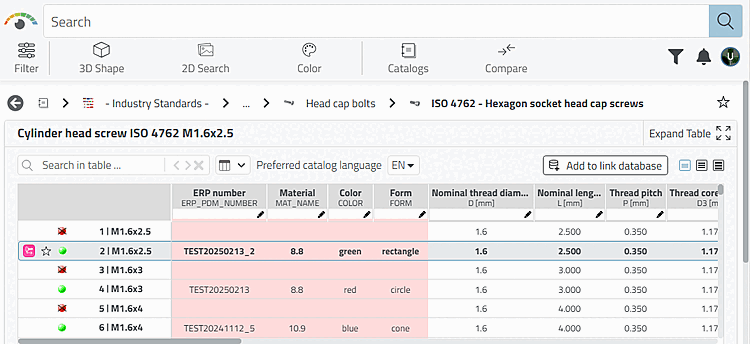

    Example: 3Dfindit with English user interface

    Example: 3Dfindit with English user interface

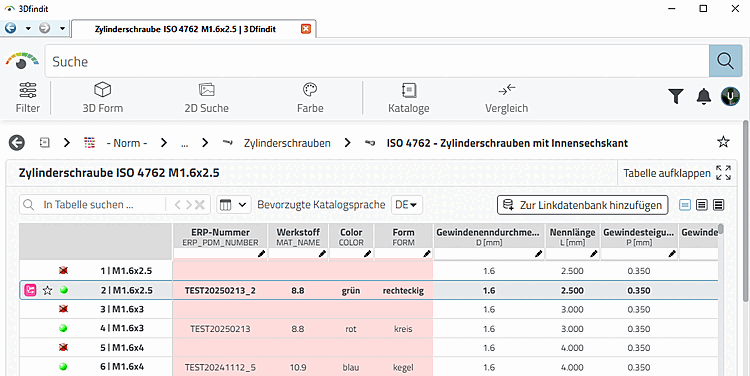

    Example: 3Dfindit with German user interface

    Example: 3Dfindit with German user interface

See also Section 5.11, “ Configure column display - plinkcommon.cfg -> Block [LINKDBFIELDS] - ” in ENTERPRISE 3Dfindit (Professional) - Administration.



[52] #165581
