Provide the required preview images in the directory structure.

Note Preview images have to be provided in the size of 400x400 Pixel in the PNG format with 8 Bit.

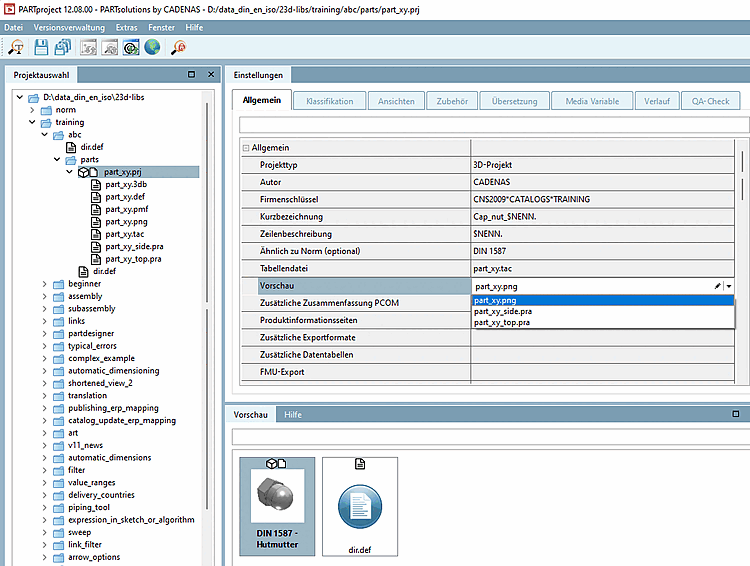

Select the desired project and under tabbed page General -> Preview, in the list field, set the desired preview image.

-> Only now the preview image is displayed in the directory structure of PARTproject.

Select „part.png“.

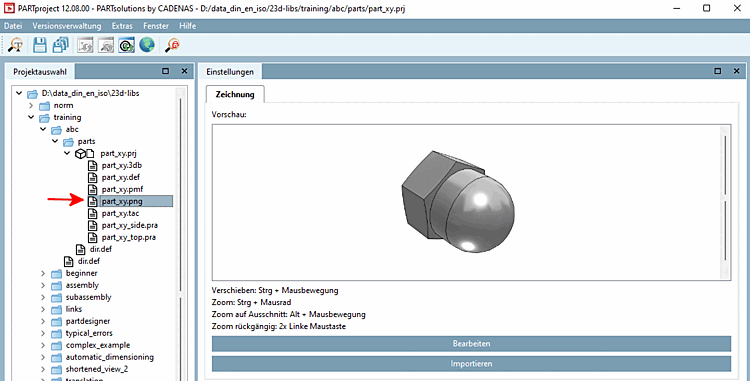

-> In the dialog area Edit project, the preview image of the part is displayed under Preview.

Optionally, if you want to replace the preview image by another:

Click the Import button and choose the new preview image in the Explorer.

-> In PARTproject, now the preview image of the cap nut is replaced and the preview is shown now.

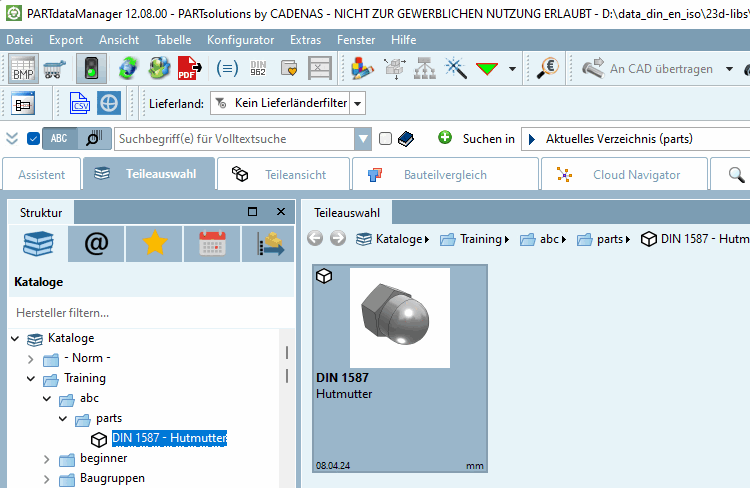

-> Later, when calling the project, the respective preview image is displayed in the Part view of PARTdataManager:^[16]

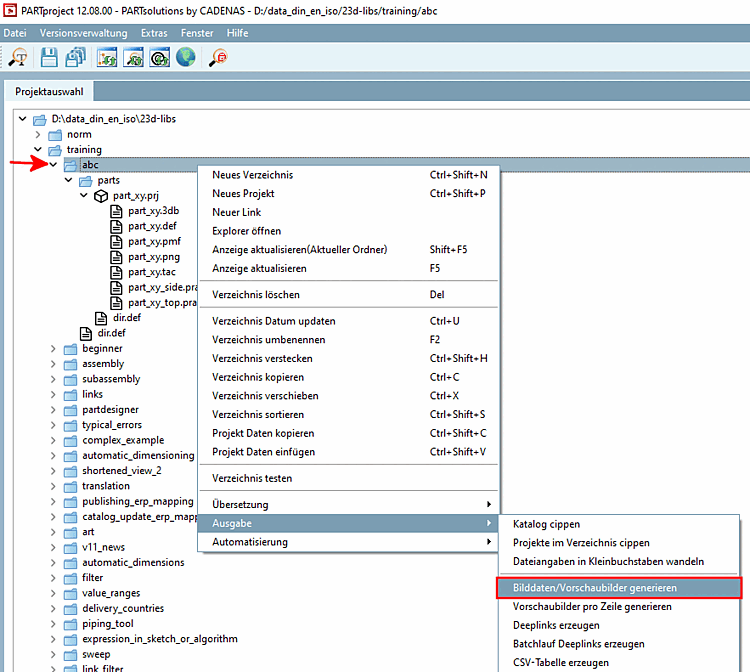

Note Via context menu command Generate image data/preview images you can create preview images in an automated process. See Section 5.8.2.1.14.3, “ Generate image data/preview images with batch run ”.
