Zoom all

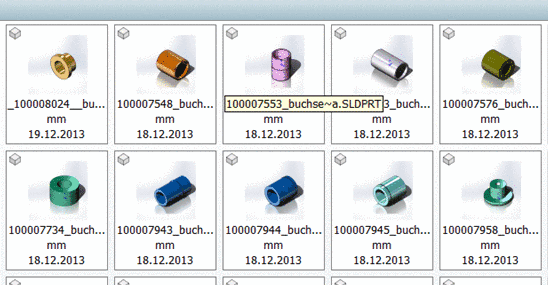

Animation:

Views:

Define cutting plane. [Define section cut...]..: See Section 2.1.7.6.7, “ Define section cut... ”. (The functionality is the same as in the part view [Part view] )

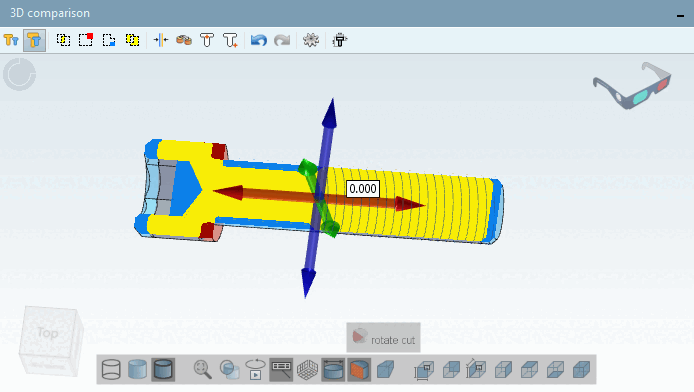

The component differences are immediately recognizable in the section plane. You can select the colors under Settings .

Measure. [Measure...]..: See Section 2.1.7.6.3, “ Measuring 3D parts ”. (The functionality is the same as in the parts view [Part view] )

Measuring grid

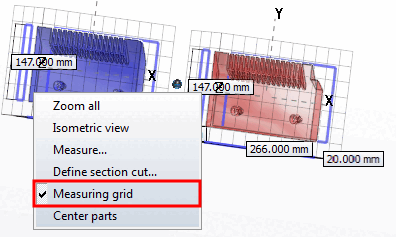

Activate the Measurement grid [Measuring grid] menu item in the 3D comparison context menu. -> The maximum dimensions are displayed.

Print
