DXF files are often imprecise. During the DXF import the DXFHealer automatically conducts an error correction so that problems do not arise later during export to the CAD system.^[97]

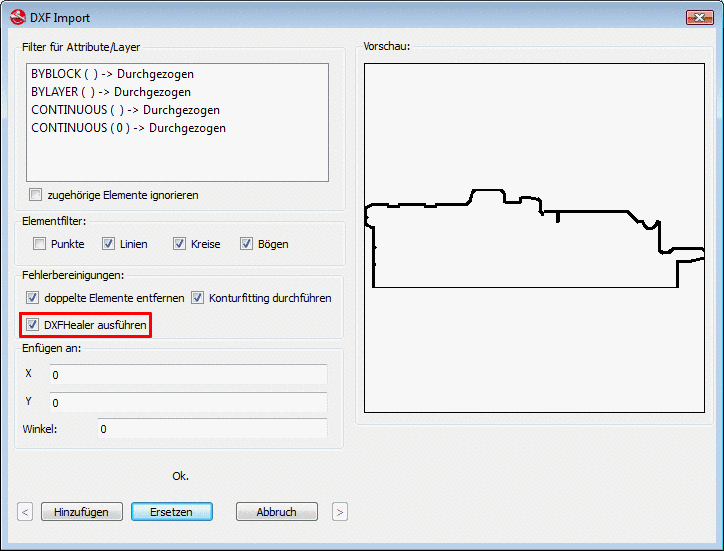

Activate the checkbox Execute DXFHealer on the DXF Import page. (The dialog page shows up in PARTdesigner, in the Sketcher during the sketch import when choosing *.dxf)

For an already imported sketch, open the DXFHealer via the button from the button bar.

Examples

The following examples show the results of an error correction:

Example 1 before

Example 1 after

Example 2 before

Example 2 after

Message window

If changes were made, these are shown in the message window. If nothing was issued, then nothing was changed.

Example message

The following messages are possible (also more):

More information under Section 7.9.3.2.2, “Dialog box „DXF Import“ (*.dxf file) ” in eCATALOGsolutions Manual.
