Each export of parts results in a new entry with defined attribute values in the respective CADENAS Routing Part Library (mm or inch).^[59]

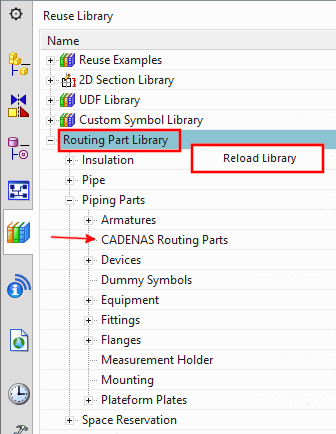

To make sure that all available parts are really displayed, perform the command Reload Library.^[60]

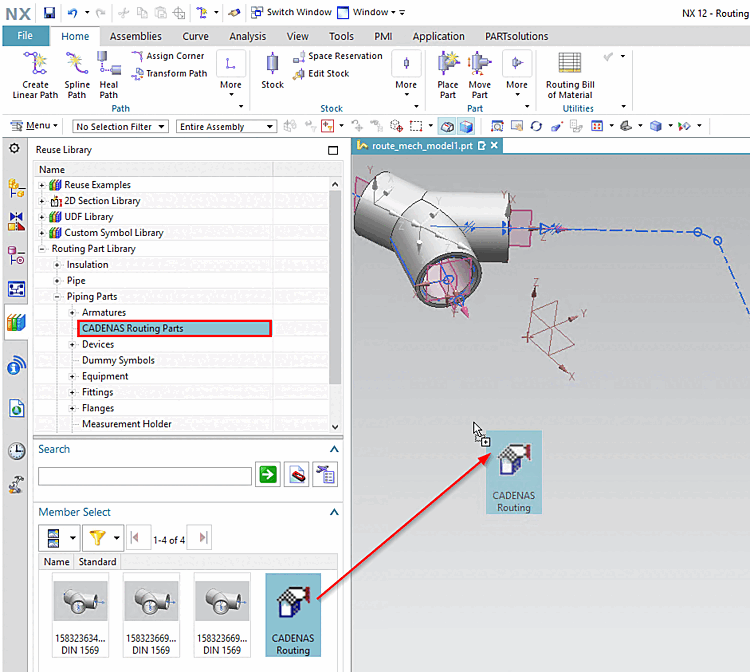

Parts can directly be drawn by Drag & Drop into an opened assembly.

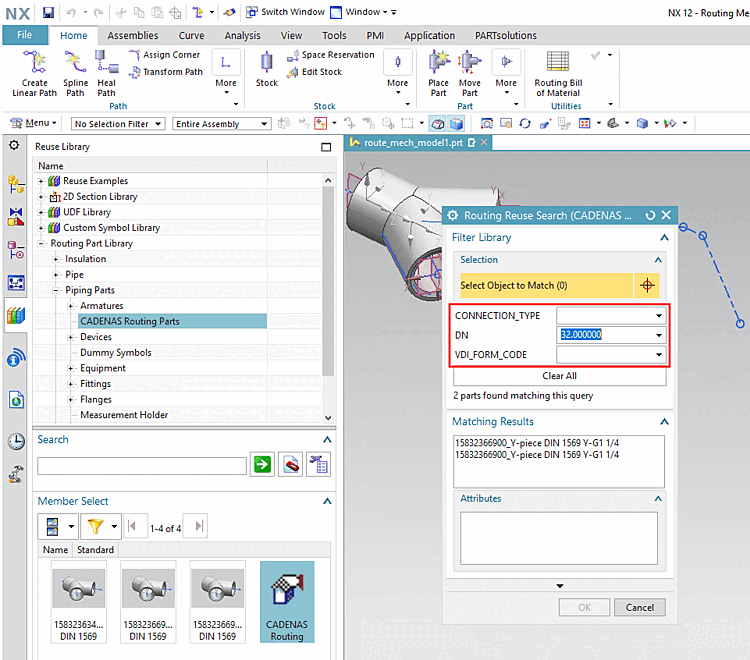

When dragging the CADENAS Routing node into the assembly area, the dialog box Routing Reuse Search (CADENAS Routing Parts) is opened. There, you can filter the library parts by selecting single values in the list fields.

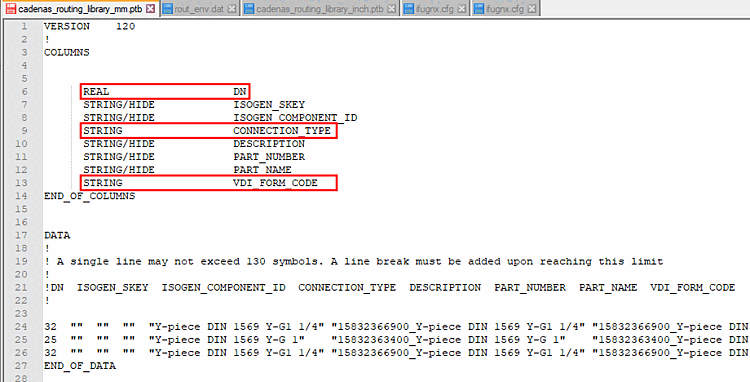

The displayed list fields correspond to the attributes in cadenas_routing_library_mm.ptb And cadenas_routing_library_inch.ptb (which are not set on HIDE).

Information on adding further attributes can be found under Section 5.12.14.6.5, “Transfer additional classification attributes”.
