5.23.8. Standard workflows for CAD & PLM/PDM environment 5.23.8.1. Add ERP number to link database
|  |
| Prev | Next |
For
Admins / key users will
the function /
To the link database
add is [Add to link database] probably always needed. In simple environments, the
button may also be linked to a parts request on the part of
standard users.

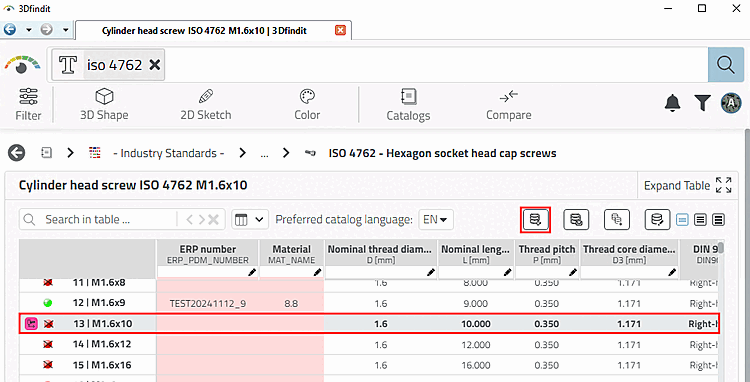

Select a line (empty line or one with an existing ERP number to create another line with a different material).

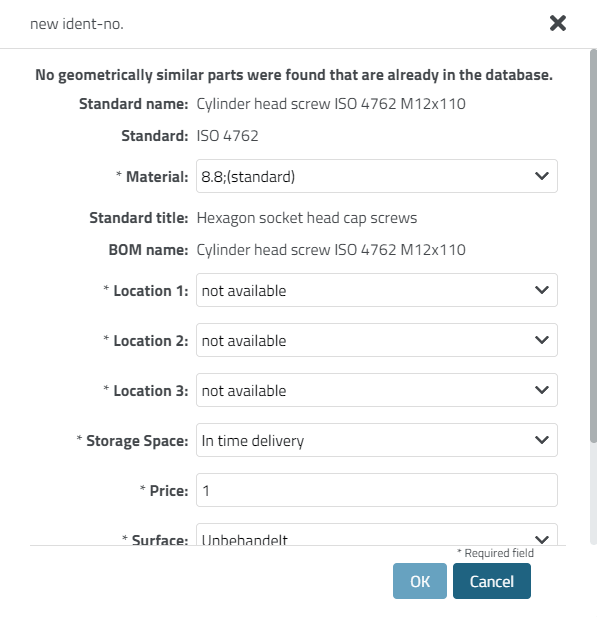

-> The New Ident Number [new ident-no.] dialog box opens.

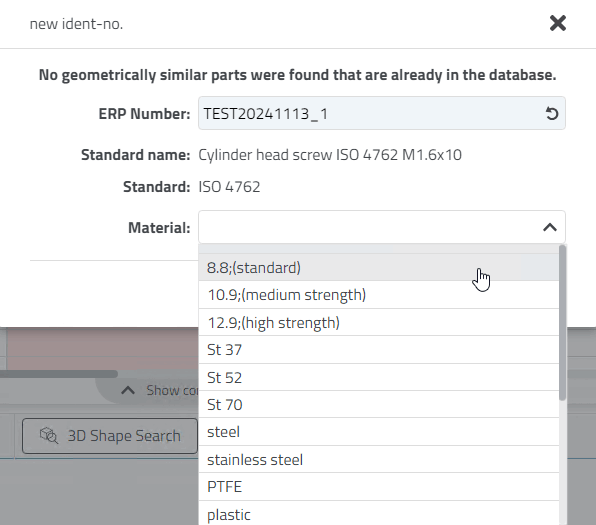

The input fields can be extended as required, so they do not necessarily look like the example here.[82]
Make the desired entries and confirm with .

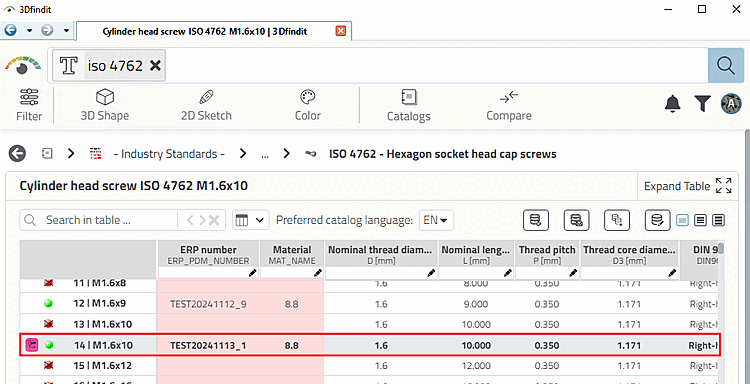

-> ERP number and material have been entered.
[82] Administrative information on this can be found in the Section 5.12, “ Design "New ident number " dialog box - erpcustom.cfg -> Block [USERDIALOG] ”.
