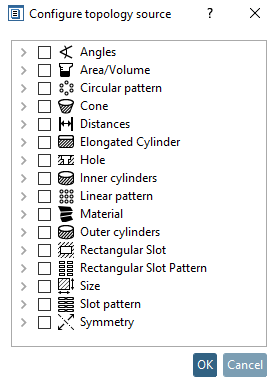

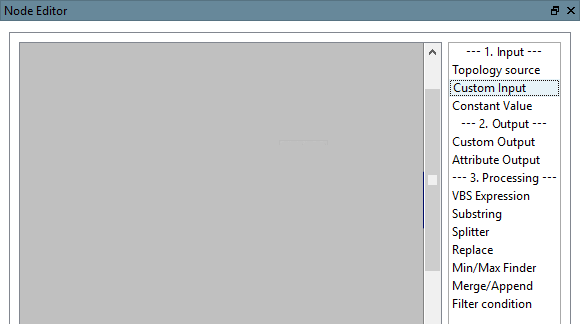

Topology source: You can directly access certain topological properties in the corresponding dialog box.

Configure topology source [Topology source]

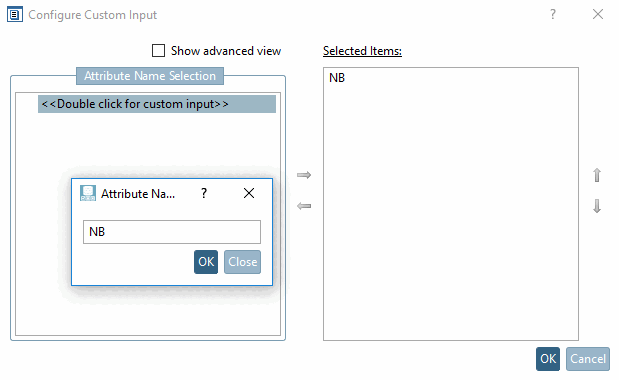

User-defined input:

Double-click on the entry under Select attribute name [Attribute Name Selection] and enter the desired attribute name in the input field. If you confirm with OK, this is automatically entered under Selected elements.

The Show extended view [Show advanced view] option is only intended for experts.

Constant value [Constant Value]:

configure "Constant value [Constant Value] "

You can find a small usage example under Filter condition.

User-defined output:

The dialog corresponds to the one under User-defined input.

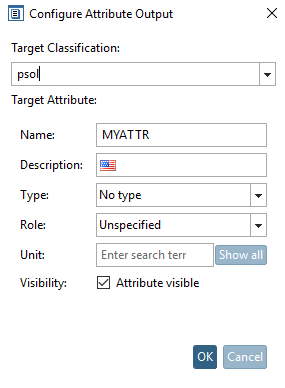

Output [Attribute Output] attribute:

configure "Output attribute [Attribute Output] "

Set the target classification [Target Classification] and name. The other settings are optional.

VBS Expression [VBS Expression]:

Expressions of unlimited complexity can be used.

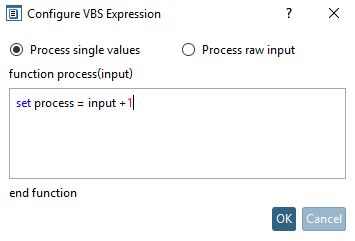

Simple example with option Process single values: (If the input is "Double" values (e.g. for "Value.Number", not "Value.Text"), this option can be used)

"Configure "VBS Expression [VBS Expression]

Process input data directly [Process raw input]: Here, the input would be a container (such as a list). (In this case, a simple "+1" would not work)

Substring:

In the list field following options are found:

Example: The following setting can be used to filter out a file name from a path specification.

configure "Substring [Substring] "

Split [Splitter]:

configure "Split [Splitter] "

Split [Splitter] splits a string into individual elements using a separator.

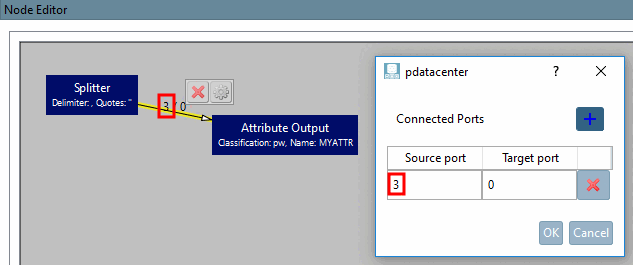

If you want to process all elements of a list in a node, you should activate the option Output all elements as a list [Output all items as list], otherwise you can have a specific element of the list passed on using the port setting:

Assuming you have the string "A,B,C,D,E" and want to pass on "D", you would have to deactivate the option Output all elements as a list [Output all items as list], set the separator "," and set the source port in the continuing edge to 3 (index of the value; 0 = A, 1 = B, ...). (Quotation marks are useful here if the separator also appears in the value (e.g. "'A,A','B,B'")

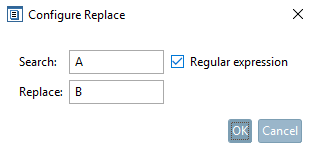

Replace:

configure "Replace [Replace] "

Min/Max Finder [Min/Max Finder]:

configure "Min/Max Finder [Min/Max Finder] "

Example: If, for example, the topology value "Inner cylinder" is read out, this may contain several values. The largest or smallest value can then be used.

Merge/Append:

configure "Merge/Append [Merge/Append] "

You can find a small usage example under Filter condition.

Filter condition:

General rule: Input[0] = Value to check the condition, Input[1] = Value to pass, if condition matches.

configure "Filter condition [Filter condition] "

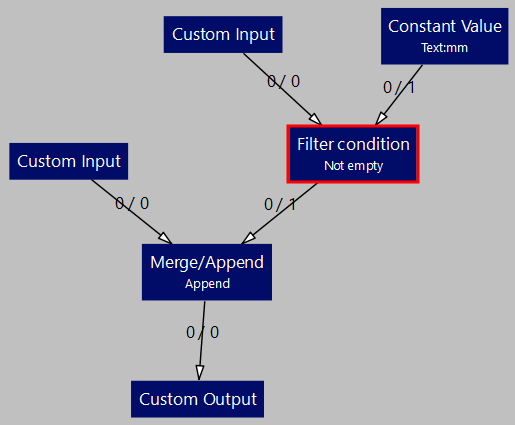

Example with filter condition "Not empty [Not empty] "

If the filter condition is fulfilled (i.e. the value under User-defined input ) is not empty, the constant value "mm" is to be passed on. This is then appended to the numerical value from User-defined input using the Merge/Append node.

Example with filter condition
