6.10.2.4.10. Merged projects with fixed values

The tables of the projects din_15413_a.prj and din_15413_b.prj have been merged in one project din_15413.prj.

In order to create the mapping proceed as follows:

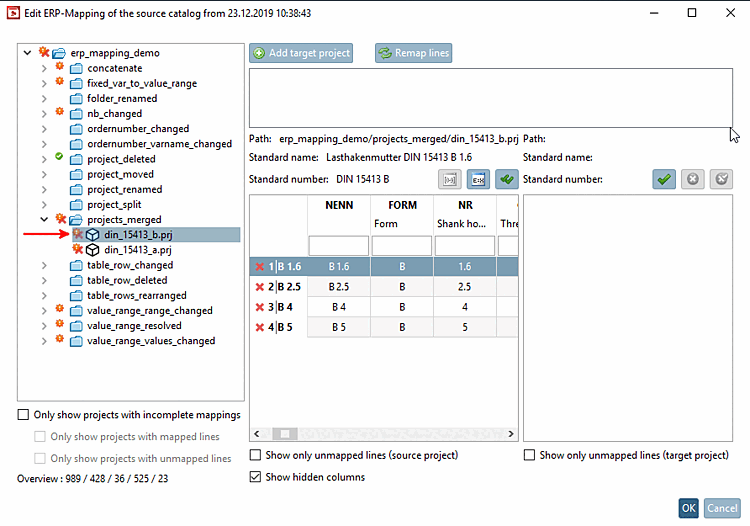

  1. Initial situation: Select the first project to be merged. In the dialog the target project's table is missing.

  2. Click on Add target project to add the new merged project.

  3. Repeat the procedure for the second project.

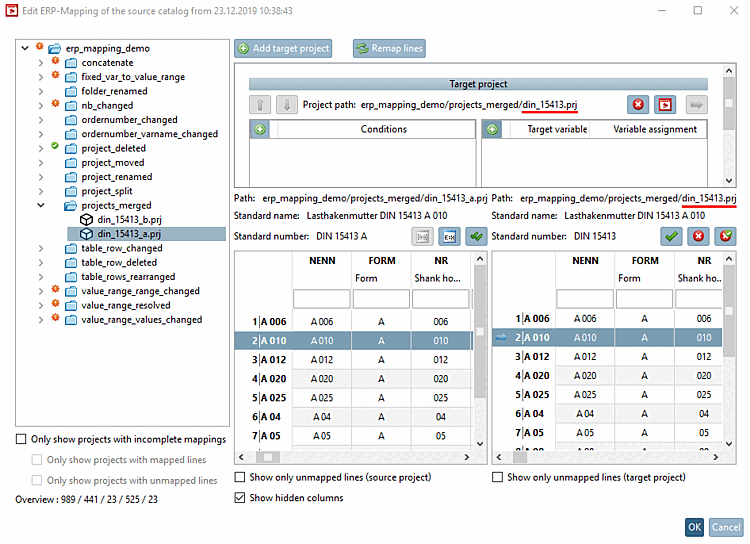

    -> Once selecting a row in the left table, on the right, the correct target project is shown.

  4. Verify the assignments by clicking on Confirm all assignments [Verify all mappings] the assignments.
