3.1.9.1.2.  Filter " tab page

You can optionally make the following settings on the Filter tab page:

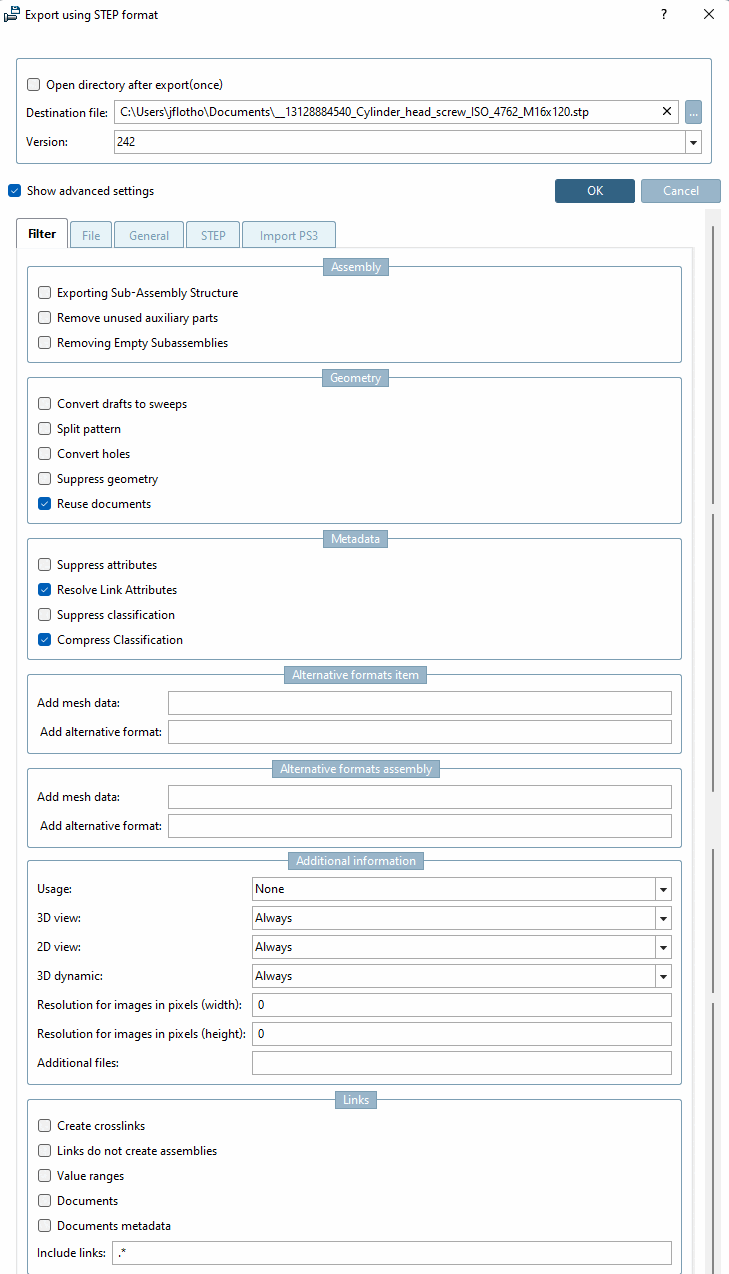

Filter " tab page

Filter " tab page

  • Assembly group [Assembly]

    • Export subassembly [Exporting Sub-Assembly Structure] structure:

      This allows parts lists of the substructure parts to be evaluated in CAD for all parts marked with Transfer to parts list [Transfer to Bill of Material].

      The following two figures show an example of the result in NX, once without and once with a sub-assembly structure.

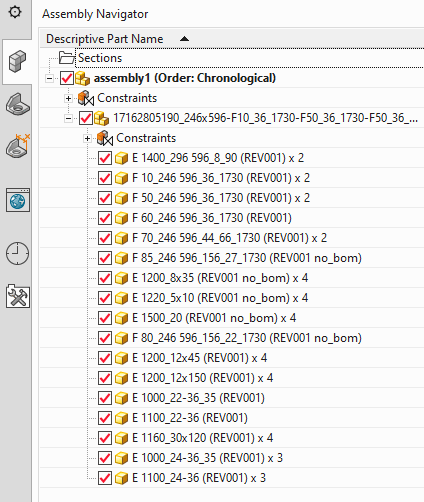

      Assembly without subassembly structure

      Assembly without subassembly structure

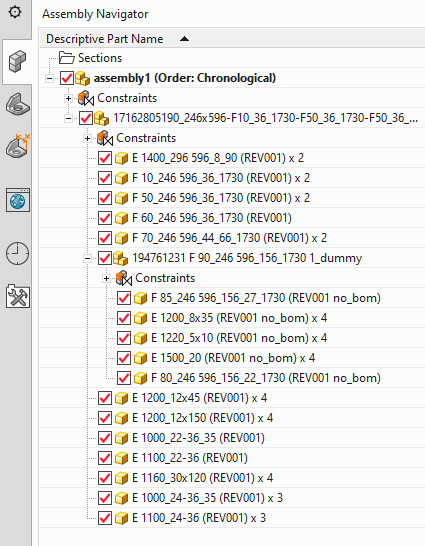

      Sub-assembly with sub-assembly structure

      Sub-assembly with sub-assembly structure

    • Remove unused auxiliary parts:

    • Remove empty sub-assemblies [Removing Empty Subassemblies]:

  • Geometry

    • Resolve [Convert drafts to sweeps] draft as sweep:

    • Resolve pattern [Split pattern]:

    • Dissolve drill holes [Convert holes]:

    • Suppress geometry:

    • Reuse documents:

  • Metadata

    • Suppress attributes

    • Resolve link attributes [Resolve Link Attributes]

    • Suppress classification

    • Compress classification [Compress Classification]

  • Alternative formats Individual part [Alternative formats item]

    • Add mesh data

    • Add alternative format

  • Alternative formats Assembly [Alternative formats assembly]

    • Add mesh data

    • Add alternative format

  • Additional information

    • Use [Usage]

      • Main part only [Only main part]

      • All elements

      • None

    • 3D view

    • 2D view

    • 3D Dynamic [3D dynamic]

    • Resolution for images in pixels (width)

    • Resolution for images in pixels (height)

    • Additional files

  • Links

    • Create links [Create crosslinks]

    • Links do not create assemblies

    • Value ranges

    • Documents

    • Documents Metadata [Documents metadata]

    • Include links
