5.12.13.2.1. Classify part

In the following classifying of the part is described:

  1. Select a project file.

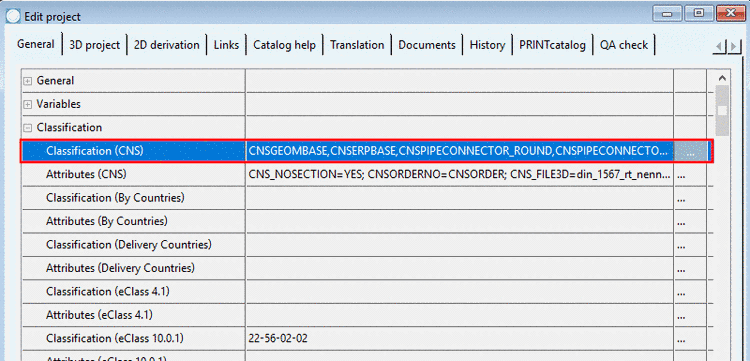

  2. Open the classification (CNS).

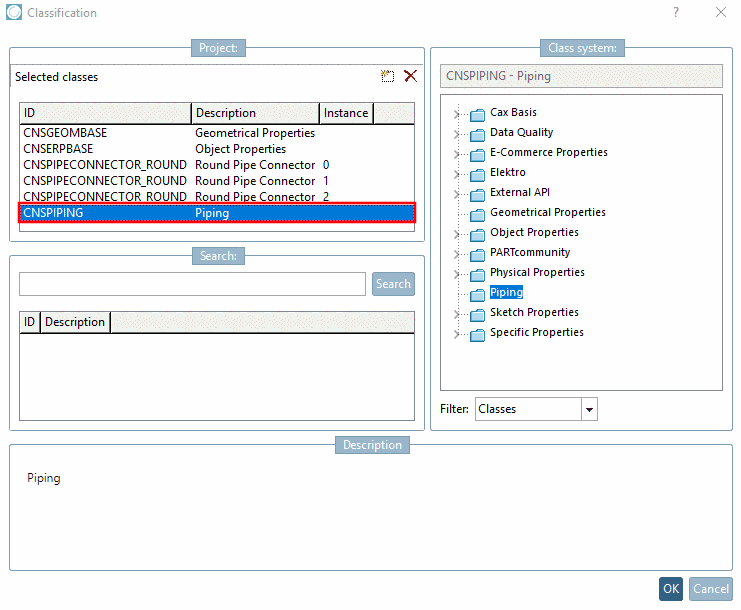

  3. Select the Piping class.

    -> In the Class variables dialog, you can see the available characteristics under Class CNSPIPING.

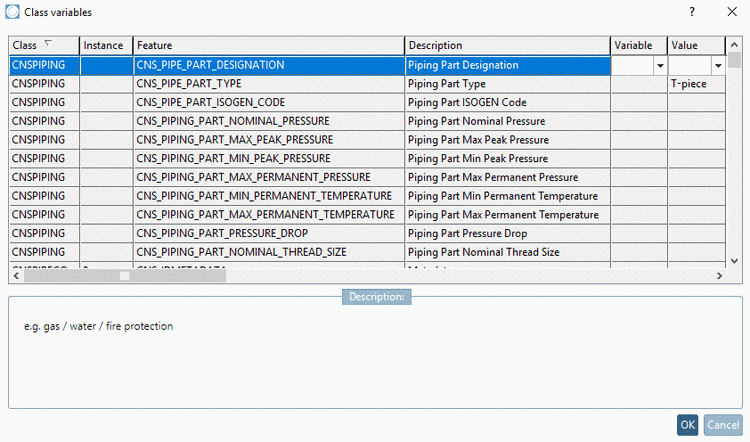

    Example: Class "CNSPIPING" -> Feature "CNS_PIPE_PART_TYPE"

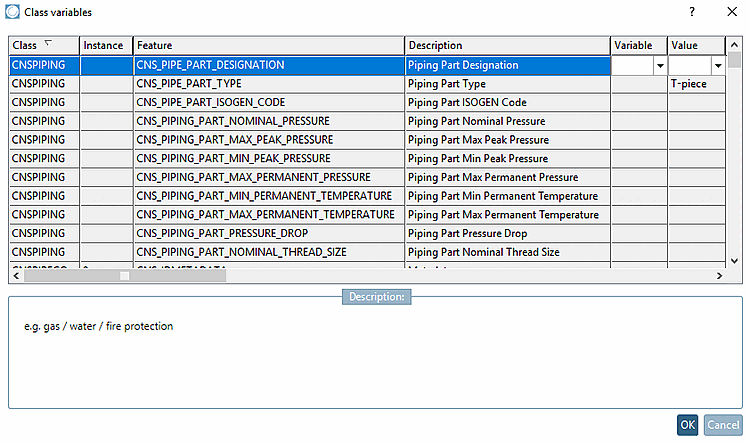

    Example: Class "CNSPIPING" -> Feature "CNS_PIPE_PART_TYPE"

  4. Set the desired variable or value.

  5. Do this for all features of the class CNSPIPING.
