Previously, it was only possible to insert user-defined buttons above the table and the 3D view.^[20]

Now with V12.9 there are more options:

Edit for this under $CADENAS_SITESETUP/3df the file custom_config.json.

The following code example shows the new options:

{
  "defaultLoginMethod": "openid"

  "baseApiPath": "",
  "basename": "/webapps/3dfindit-enterprise",
  "erp": true,
  "startRoute": "CadBim",
  "isEnterprise": true,

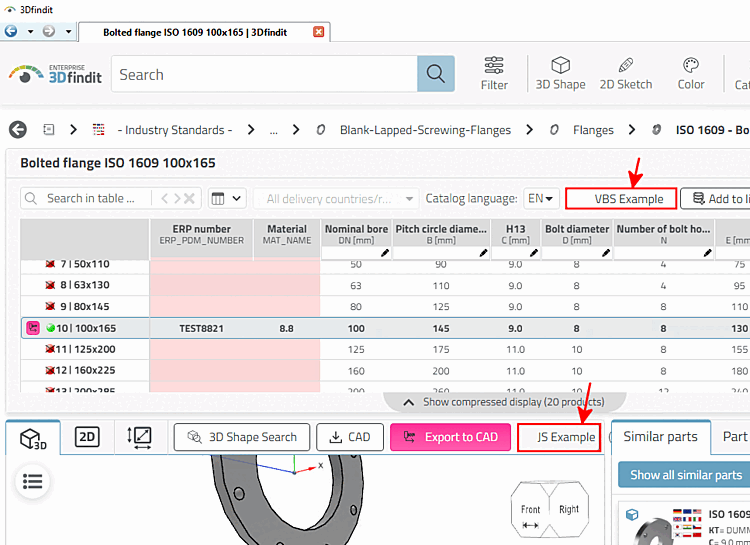

  "toolbars": {
    "viewer": ["exampleButton"],
    "table": ["exampleVBSButton"],

    "mainMenuIcon": "./plugins/img/3dFinditEyeColor.svg",

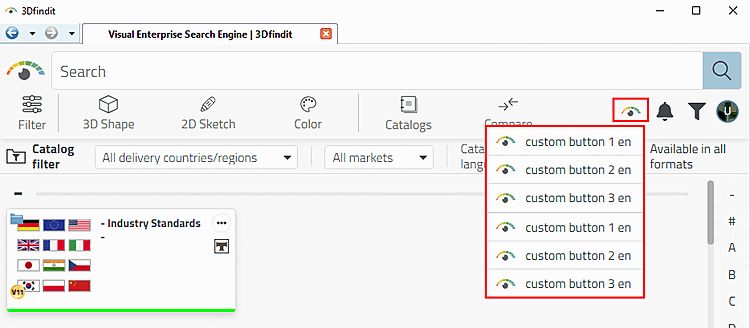

    "mainMenu": [
      ["customButton1_Group1", "customButton2_Group1", "customButton3_Group1"],
      ["customButton1_Group2", "customButton2_Group2", "customButton3_Group2"]
    ],

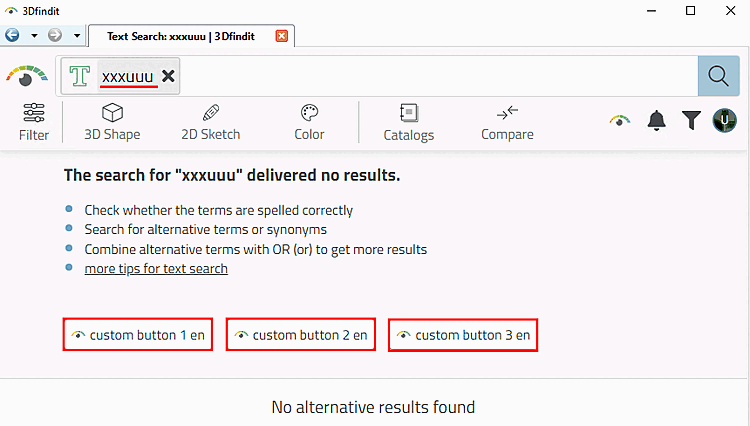

    "noResults": ["customButton1", "customButton2", "customButton3"],

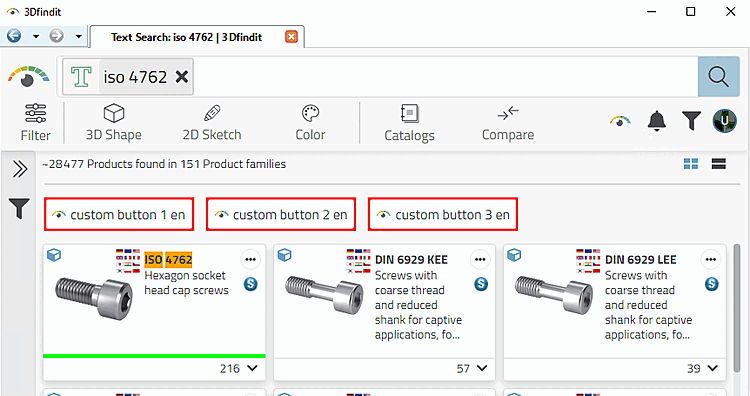

    "searchResults": ["customButton1", "customButton2", "customButton3"],

    "buttons": {
      "customButton1_Group1": {
        "type": "VBS",
        "icon": "./plugins/img/3dFinditEyeColor.svg",
        "name": {
          "de-DE": "custom button 1 de",
          "en-GB": "custom button 1 en"
        },
        "script": "/plugins/vbb/custom1_startup.vbs",
        "tooltip": {
          "de-DE": "custom button 1 de",
          "en-GB": "custom button 1 en"
        }
      },
      "customButton2_Group1": {
        "type": "VBS",
        "icon": "./plugins/img/3dFinditEyeColor.svg",
        "name": {
          "de-DE": "custom button 2 de",
          "en-GB": "custom button 2 en"
        },
        "script": "/plugins/vbb/custom2_startup.vbs",
        "tooltip": {

Details can be found under Section 4.21.3.1, “Adding buttons to the user interface ” in ENTERPRISE 3Dfindit (Professional) - Administration.
