1.3.4.3.2.19. Background information

1.3.4.3.2.19.1. Automatic splitting of search terms

In V12 the search term is automatically split into single subterms what can be useful especially in German with its many compound words.

For example, radial shaft seal ring in radial-shaft-seal-ring

For all resulting combinations, searches are performed, and in this case it really makes sense because there are different spellings over all catalogs.

Radial-Wellendichtring

Radialwellen-Dichtring

Also a turn of single parts leads to desired results.

Dichtring Radialwellen

With correct sequence even a phrase search would lead to the desired results, so for example:

"Radial Welle"

In V11 there were only hits with exact accordance compared to the search term.

1.3.4.3.2.19.2. Toleration of wrong divisions in strings

A combination of characters, numbers and signs is automatically fragmented in its subparts internally at empty spaces, separators and transitions between different types of characters (numerical/alphanumerical), so that at these places also divergent separations will be tolerated.

  • 89AB123.567

    In this case the following search would be successful as well:

    123 567
  • With the input of

    ABC1234DEF

    or

    ABC-1234-DEF

    becomes

    ABC 1234 DEF

    is also found.[23]

1.3.4.3.2.19.3. Ranking
  • Words in the beginning of a field are ranked higher (NN, NT and NB)

  • In compound words (only concerns German), the last component has a higher rank.

    For example, when searching for screw, the result hexagon screw is weighted higher than screwdriver.

  • When searching for multiple words, results where these words are in the same order are ranked higher.

  • Exact word matches receive a higher rank.

    Example:

    A search for screw prioritizes the word screw over cylinder screw.

    This means that hits with the word screw are listed in the search results before hits with cylinder screw.

  • In V11, an accumulation of same words reduced the rank. This is removed in V12.

1.3.4.3.2.19.4. Find order numbers with empty spaces and special characters

In V12, order numbers with empty spaces and special characters are also found even if the spelling is not quite correct.

Example:

The following order number contains empty spaces.

XVEWO NW 10 HL

It is even found when searching without empty spaces.

XVEWONW10HL

1.3.4.3.2.19.5. Extraction of zeros from search terms

If a search terms includes zeros, the search is performed both with the original search term and in addition with extracted zeros. If both methods lead to results, exact accordances are higher ranked and so are listed on top.

1.3.4.3.2.19.6. Search for values of value range fields

In V12, you can search for values of value range fields (if they do not depend on others).

In the search result and in the part view the searched value is set and marked.

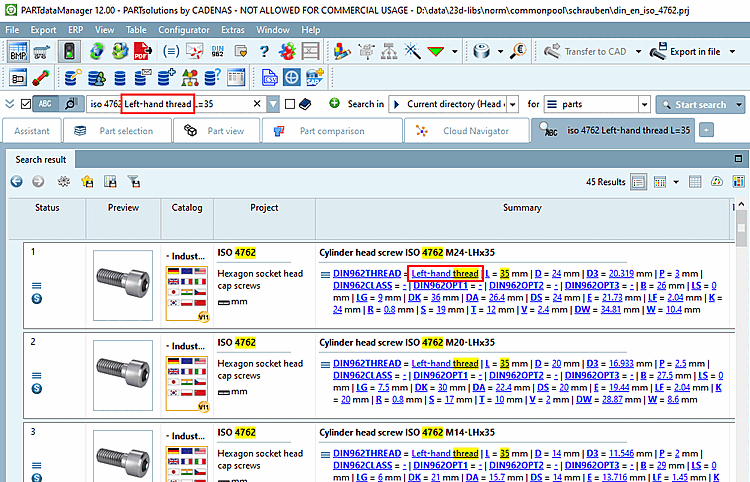

Search result: Searched value set

Search result: Searched value set

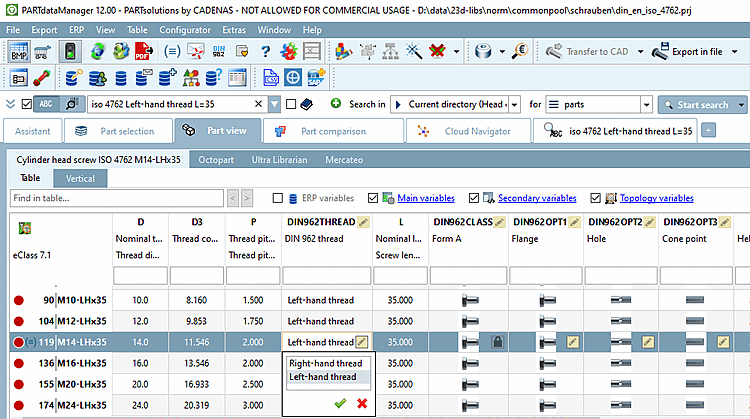

Part view: Searched value set

Part view: Searched value set




[23] Special characters other than the hyphen are also treated in this way.
