Default storage location for the pool

Default value for CADENAS_POOL with a Reinstallation is PRODUCT_DATA\POOL.

Important Was the pool in V11 below by CADENAS_DATA, this may not work in V12 in all cases. [a]

[a] #146789

Installation Notes: For details on installing ENTERPRISE 3Dfindit, see the Section 4.5, “ENTERPRISE 3Dfindit Installation ” in Installation section.

Version update within V12: Simply run the MSI installer for the update version .

Note In exactly the same way, you can also perform a downgrade.

Server-Client-Installation

The server must already be set up and running.

The server, client, and even the CAD version must be identical.^[90]

Not only must the CAD interface be fully installed on the server, but also the CAD system itself.

Update V11 -> V12

An existing V11 installation and an installation using the V12 ENTERPRISE 3Dfindit Consulting Installer access the same environment variables and paths. To avoid any interference, it is best to uninstall any existing V11 installation first.

Note The existing V11 SITESETUP cannot be carried over to V12 without modifications. (For example, UI commands and the mechanism for showing and hiding buttons have changed.)

If, however, you plan to run the system in parallel, be sure to follow the instructions at Section 5.24.7, “Parallel use of V11 and V12”.

Installation cadenas_threads.cip

Please install the latest cadenas_threads.cip.

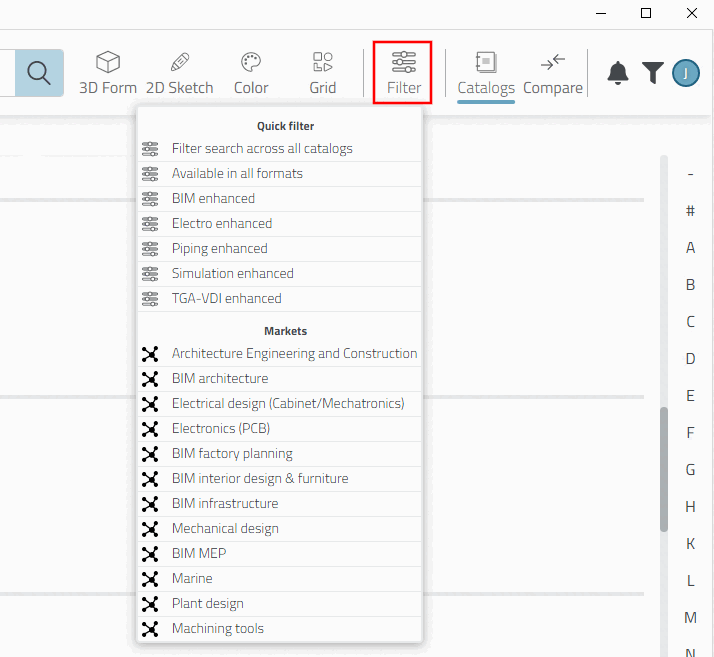

Various markets are defined under the " Filter " function. Otherwise, they are not visible. Additional quick filters are also available.

As soon as a new cadenas_threads.cip file is available, it will be offered online during the catalog update. Otherwise, the file can cadenas_threads.cip be targeted via Catalog Update To Be Installed Offline (available at \\Server name\cip_v9\catalogs\_CNS\Threads ).
