7.9.3.6.2.  Insert rectangle over center point

Insert rectangle over center point

[Note]Note

This feature is only officially available for future versions and is only an internal test version with V12.13 and is therefore hidden in the standard version.

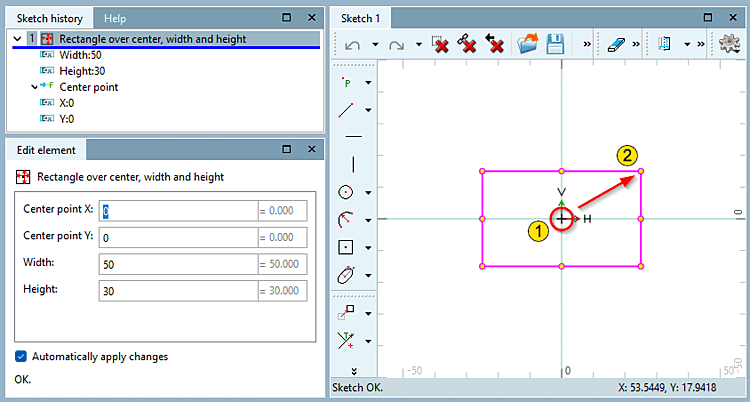

  1. Click on the center point and drag the rectangle with the mouse.

  2. Fix the end point with a mouse click.

  3. Determine the exact position (center point X and center point Y ) and the dimensions (width [Width] and height [Height] ) in the Edit element docking window.
