7.9.3.6.3.  Insert hexagon

hexagon Insert [Insert hexagon]

Create a hexagon using the center point [Center point] and width across flats [Width across flats].

  1. Click on the center point.

    [Note]Note

    If you want the center point to snap to the grid, you must activate Snap to grid in the quick settings.

    Snap onto the grid [Snap to grid]

    Snap onto the grid [Snap to grid]

    [Note]Note

    The center of [Center point] a hexagon does not represent a catch later!

  2. Pull the hexagon up to the desired width across flats and fix it with a mouse click. If necessary, you can make an approximate adjustment to the rotation.

    [Note]Note

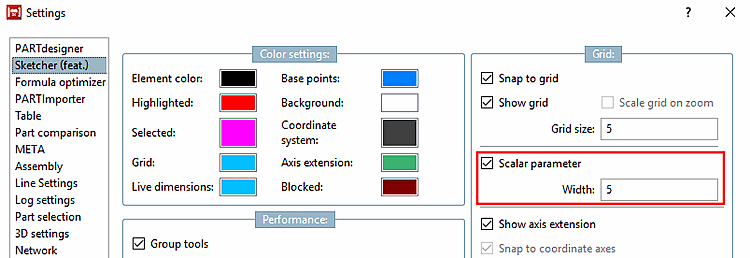

    If you want the width across flats to snap to certain increments, you must activate Scalar parameters in the settings.

    "Scalar parameters [Scalar parameters]" activated

    "Scalar parameters [Scalar parameters]" activated

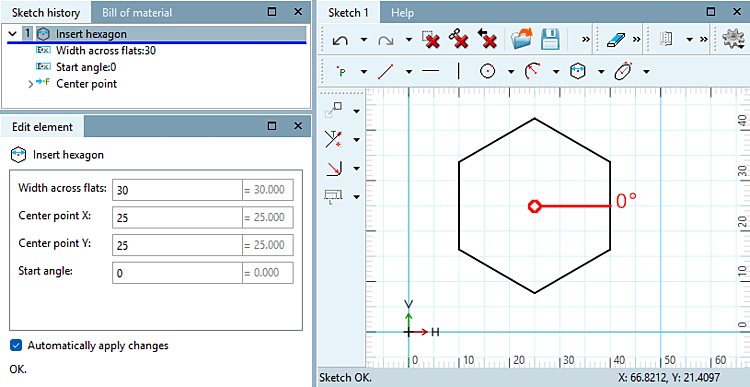

    → The corresponding parameters are displayed in the Edit element docking window.

  3. Adjust the parameters as required:

    • Width across flats (inside diameter of the hexagon)

    • Center point X

    • Center [Center point] Y

    • Starting angle [Start angle]
