By means of Configuration file replace_std.cfg you can use expired and replaced projects in the product selector with special icons , display hint dialogs and export to the CAD system block:

	Note
	The method described here can be used administratively within the company. The method under PARTproject -> Tabbed page Settings -> Tabbed page General -> Menu item Expiration date (End of Life) is similar in result, whereby this is used by the catalog manufacturer. See Section 5.9.2.12, “Menu item: Expiry date (End of Life) ” in eCATALOGsolutions - Manual.

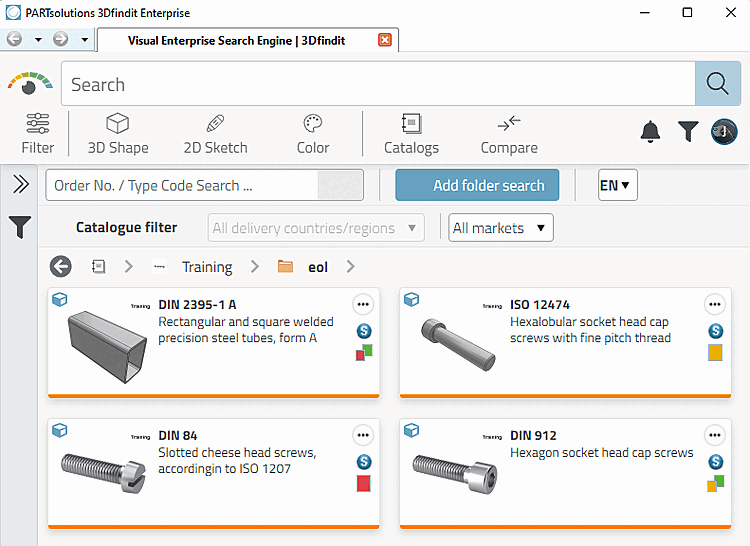

3Dfindit: Icons in product selection

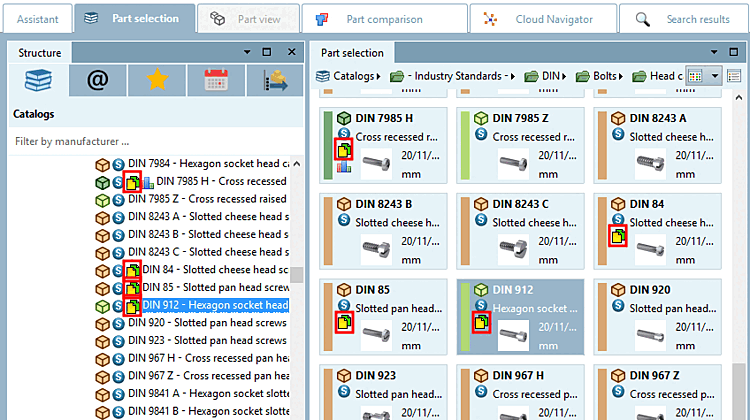

PARTdataManager: Icons in directory tree and "Symbols" view

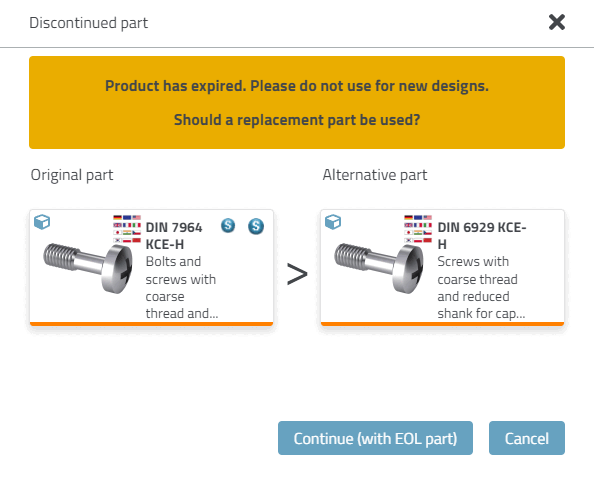

3Dfindit: Hint dialog

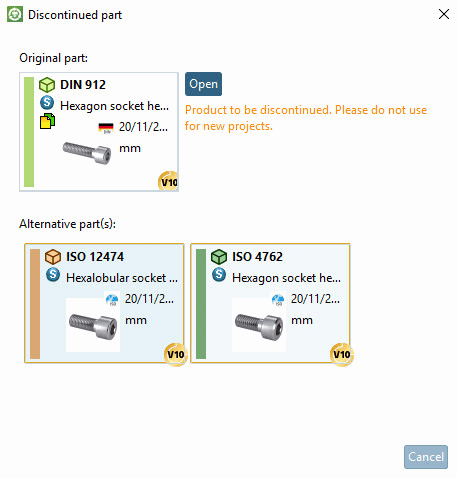

PARTdataManager: Hint dialog

Tip

The following part markings complement each other: Parts to be replaced (description in this section) Parts to avoid (see Section 7.8.15, “Mark parts to be avoided ” in eCATALOGsolutions - Manual ) The function is controlled via a separate CNSAVOID column in the characteristic attribute table. The control via configuration file $CADENAS_DATA/datasetup/avoid_parts.cfg is no longer used! Expired parts ( Section 5.9.2.12, “Menu item: Expiry date (End of Life) ” in eCATALOGsolutions - Manual)

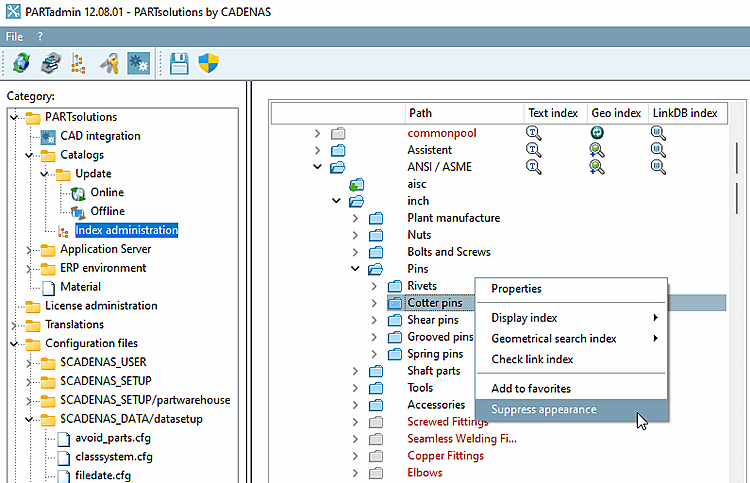

The Using replace_std.cfg is an alternative to the function under PARTadmin -> Index Management [Index administration] -> context menu command Suppress display [Suppress appearance] (see Section 1.3.3.6.6.11, “ Suppress display / Restore display ” ).

However, the directory structure remains visible when using replace_std.cfg, even if the parts cannot be used. This variant is generally preferable.
