3.1.15.3.1. Classification icons

Piping information

Icon

Meaning / Tooltip

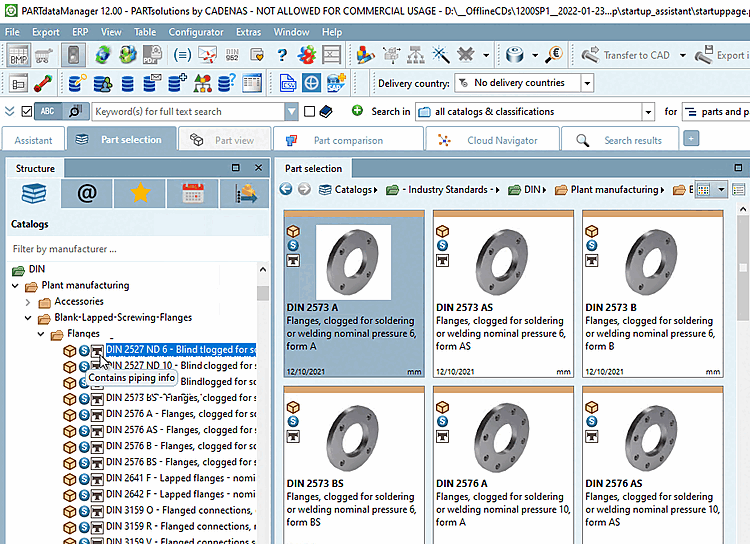

Contains piping information

Parts classified accordingly can be used for piping in NX, Creo or Revit, for example.

Standards classification

Icon

Meaning

S = Classified according to Standards Classification

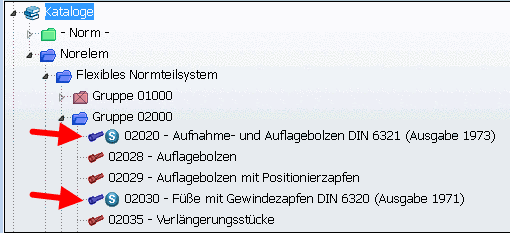

All parts from standard catalogs are part of the Standards Classification and are marked with the Standards icon in the top left corner.

All parts from supplier catalogs, which part information has a reference to a Standard part, are assigned to the Standards Classification together with the respective part from the Standard catalog in the respective class.

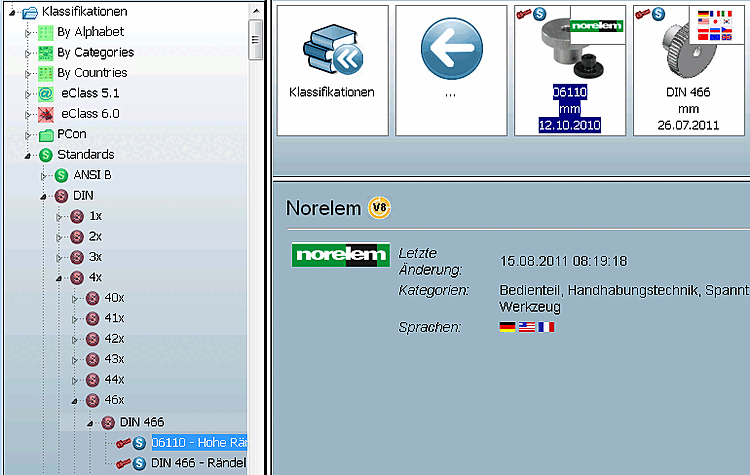

Parts selection [Part selection] - "Classes [Classes] " tab page - Classification standards

Parts selection [Part selection] - "Classes [Classes] " tab page - Classification standards

If you select Standards in the list box in the References dialog box, only standard parts are displayed.

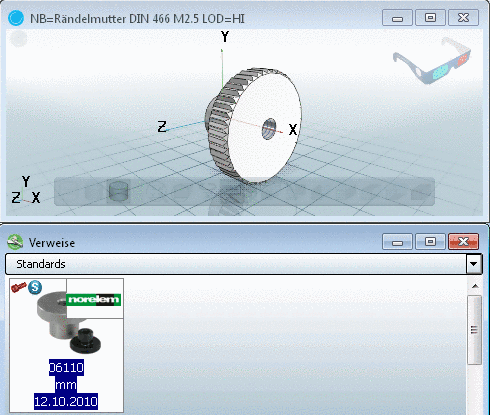

Parts view [Part view] - "References [Links] " dialog box

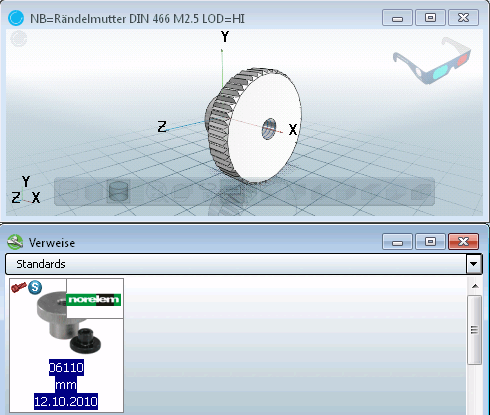

Parts view [Part view] - "References [Links] " dialog box

In the case of PARTsolutions with ERP integration some more possibilities are given:
