4.9.4.  Adjust table values -> Adjust color with condition / plinkcommon.cfg -> Block [COLMAPPING_<column name>] -> Key "COLORCOND<number>"

Use the Adjust color with condition option to set a condition to control the color depending on the size of the value.

The setting applies to PARTdataManager /3Dfindit and PARTlinkManager in equal measure.

Setting in configuration file $CADENAS_SETUP/plinkcommon.cfg:

Block [COLMAPPING_<variable name>], key COLORCOND<NUMBER>. The first value contains the condition; use logical operators such as <, <=, >,>=, = . The following values represent the color in the RGB code.

Example:

[COLMAPPING_PRICE]
COLORCOND0="PRICE>=20","255","0","0"
COLORCOND1="PRICE<20","0","128","64"

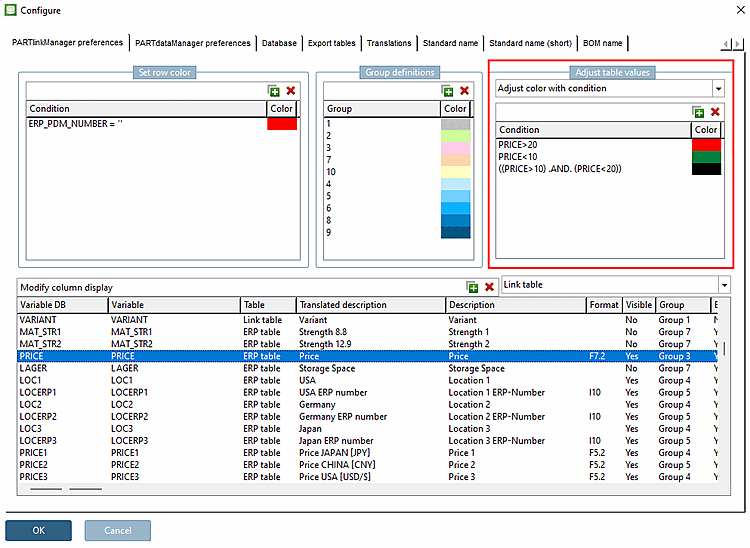

Setting in user interface under PARTlinkManager -> Extras menu -> Configure dialog window -> tab page PARTlinkManager settings [PARTlinkManager preferences] -> dialog area Adjust table values -> Adjust color with condition

Example for "PRICE" column:

Condition Color
PRICE > 20red
PRICE < 10green
(PRICE>=10).AND.(PRICE<20))black

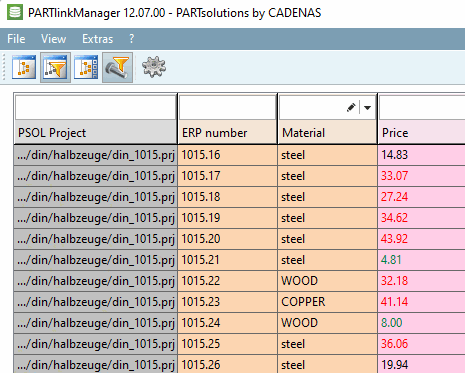

Display in PARTlinkManager

[Note]Note

The color display is the same as in PARTdataManager.
