3.1.13.4.8.3.  PDF

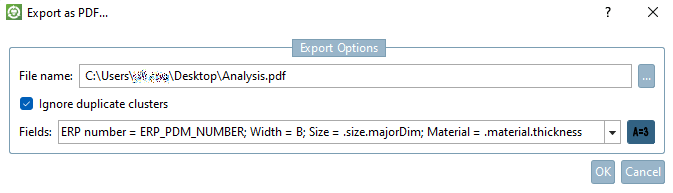

If PDF is selected, the Export as PDF [Export as PDF...]... dialog box opens. dialog box opens.

Export as PDF...

Export as PDF...

  • File name: Select via ... Export path and file name.

  • Fields: Here you specify the variables [Variables] or topological attributes whose values are to be included in the CSV file.

    [Tip]Tip

    Already used settings are saved.

    In the list field, select the variable combination to be used in the report. When moving the cursor over an entry, all variables are shown with their description in a tooltip.

    Otherwise determine other variables and attributes.

    Click on the button button opens the User-defined variables [Custom variables] dialog box.

    First click on Add to insert a new line.

    • Variable type:

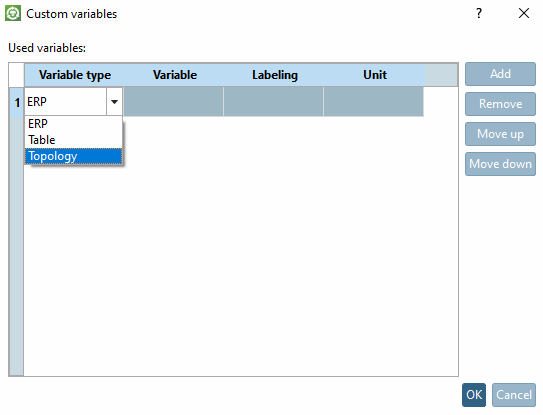

      Double-click in the line under Variable type to open a list box with the following selection options:

      • ERP

      • Table

      • Topology

      Select an option and then click in the field under Variable.

    • Variable:

      • Input options for variable type ERP:

        When selecting "ERP" the ERP variables of the table are read and shown in a list. You can also enter the value yourself.

      • Input options for variable type Table:

        When selecting "Table" the table variables of the search directory (search source) are read and shown in a list. You can also enter the value yourself.

      • Input options for variable type Topology: First, the term "Topology" is displayed in the cell. Click on it.

        -> Now a dialog showing all topological features is opened.

        At desired attributes, check the option.

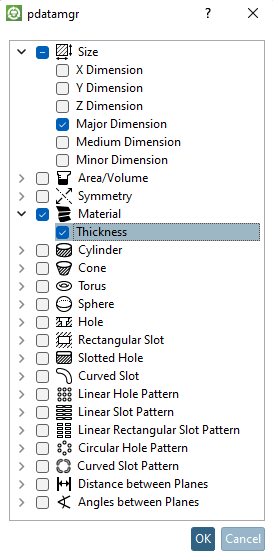

        In this example, the topological attributes "Major dimension" and "Material thickness" are activated.

        In this example, the topological attributes "Major dimension" and "Material thickness" are activated.

    • Labeling:

      Enter a labeling by clicking on it. This will be displayed in the report later.

    • Unit:

      Optionally you can state a unit.

      If the variable has no own unit, the entered unit is displayed.

      If the variable has a unit, the value is converted. (Currently conversion is only possible at the type "Variable".)

      Example:

      The diameter in the table is given in inches. You have stated mm as unit. -> The value is automatically converted from inches to mm.

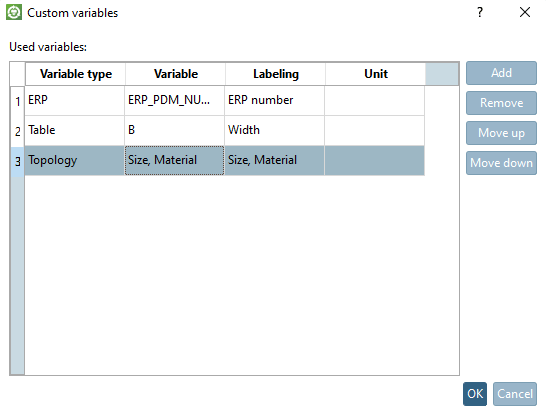

    In this example, ERP variable (ERP number), Table variable (Width) and topological attributes "Major dimension" and "Material thickness" is activated.

    In this example, ERP variable (ERP number), Table variable (Width) and topological attributes "Major dimension" and "Material thickness" is activated.

Finally, confirm with OK.

-> The analysis is exported.

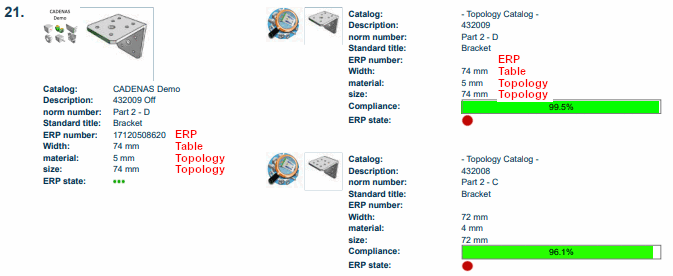

Here, the variable for ERP number, table variable for Width and topological attributes "Material" and "Size" have been added to the analysis result.

Here, the variable for ERP number, table variable for Width and topological attributes "Material" and "Size" have been added to the analysis result.
