6.3.5.6. Export to CAD

/ Export to CAD

The button is only visible if 3Dfindit has been started from CAD.

  1. Select the desired line.

  2. Click on the button.

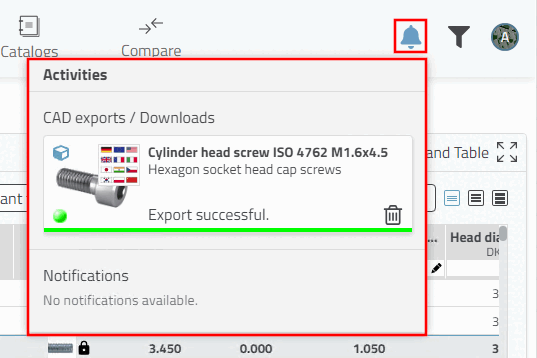

    -> The export progress is displayed in the Activities dialog box.

    -> The CAD opens for placing the component

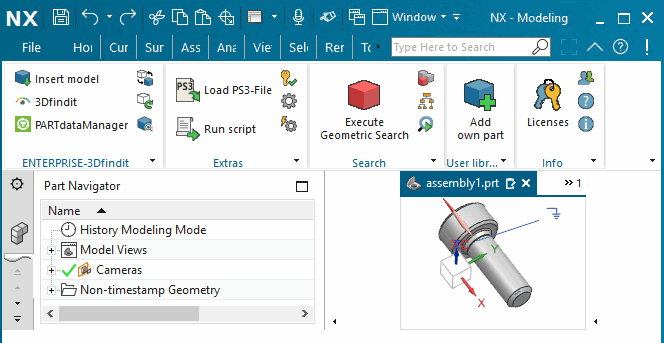

Fig. exemplary with NX

Fig. exemplary with NX
