PARTsolutions supports several user databases. One or more of them can be active at a given time. However, only Windows allows for automatic login within the clients. In all other cases, the manual input of the password is mandatory at login time.

To display the users/groups on the Rights assignment [Assign rights] tab page, place a checkmark under Active on the corresponding tab pages. The order of the evaluation corresponds to the order of the tabs: Windows, then ERP, then the others...

Example: Tabbed page "Windows"

Limit for queries: Maximum value is 999999.
Limitation can be helpful, on the other hand it can lead to incomplete results.
From a quantity of >9999 entries in AD at the latest, the search function under Rights assignment [Assign rights] -> Known users/groups will definitely no longer work reliably, but possibly even earlier, although this can be intercepted using the Add manually. [Add manually ...].. button.

In general the behavior strongly depends on the concrete AD server.

1.3.5.8.1.2.1. Register page "OpenID "

1.3.5.8.1.2.1.1. Microsoft Azure AD / Entra ID

Configuration of SSO via Microsoft Azure

Note: OpenID does not work in batch processes (therefore Windows must also be activated under user databases [User databases] ).

In the following you can find a detailed description, which has just to be modified for your own environment.

1.3.5.8.1.2.1.1.1. Azure App registration

In the first step add an APP registration for CADENAS PARTsolutions/3DFindIt in your company in Microsoft Azure.

Go to https://portal.azure.com.

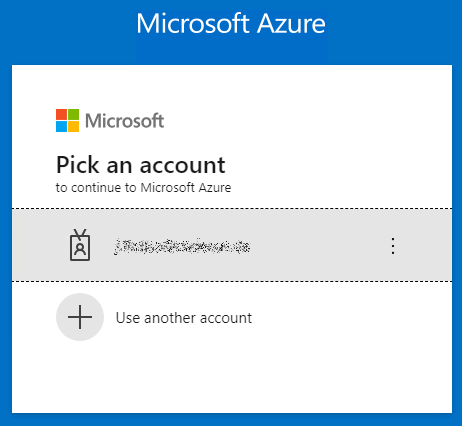

Pick an account in Microsoft Azure.

Microsoft Azure -> Pick account

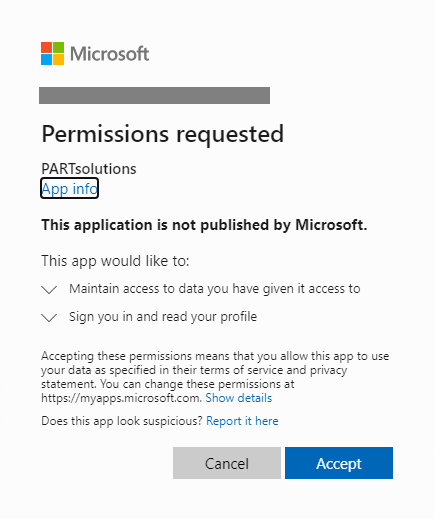

If API authorizations have been set, the following query also appears, unless an admin consent has been set for all users by the administration. Otherwise, each user must give their own explicit consent. See below.

Microsoft Azure -> Authorizations required
Click on App registrations.

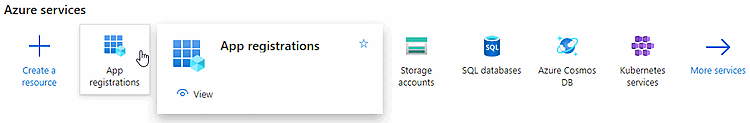

Microsoft Azure "App registrations"

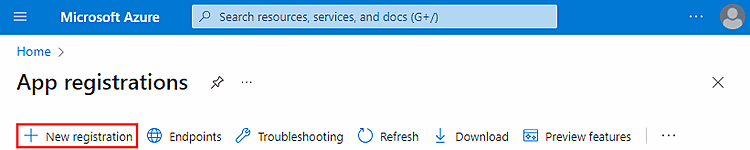

Click on New registration.

Microsoft Azure "New registration"
Complete the Register application dialog and then click Register.
- Name: Enter any display name (e.g. "CADENAS PARTsolutions /3Dfindit").
- Supported account types: Select the option Only accounts in this organization directory (only "<your company>" - single client) (in the exemplary figure "CADENASTechnologies AG"),
- Redirect URI (optional): Select Public client/native (mobile and desktop) in the list field and enter http://localhost/auth/login in the input field.

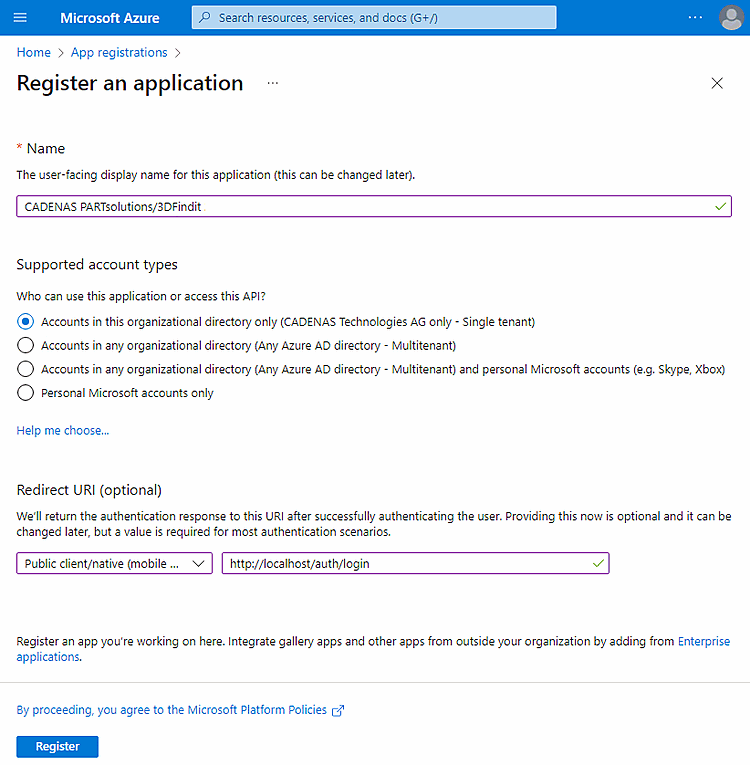

Microsoft Azure "Register an application"
Filter for the just registered application.

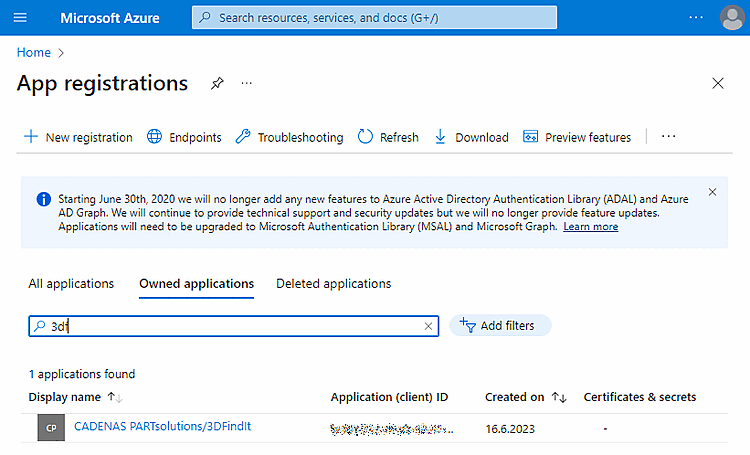

App registrations -> Filter

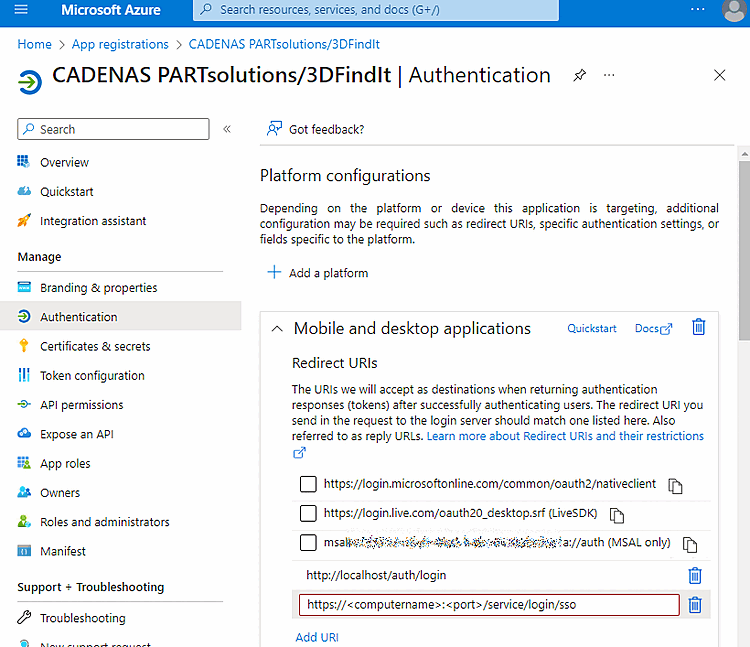

Select the Authentication item.

Microsoft Azure "Authentication" -> "Mobile and desktop applications"
Click Add URI and enter the following lines:
- Returning authentication to AppServer in standard case:
```
http://localhost/auth/login
```
- For web applications such as 3Dfindit, for example, the Appserver has to be explicitly stated:
```
https://<computername>:<port>/service/login/sso
```
Click Save.

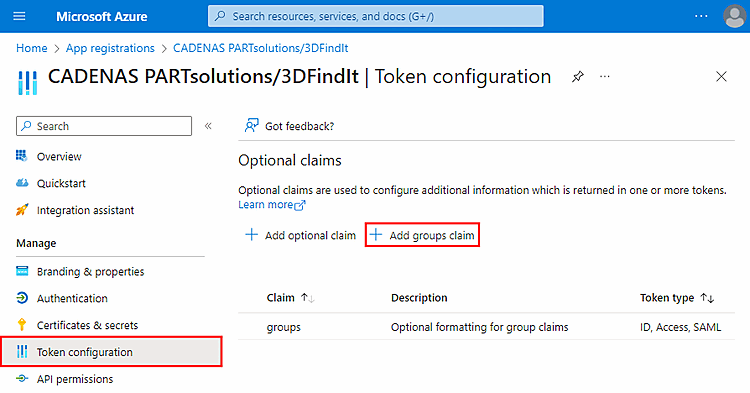

Select the item Token configuration and click on Add group claim.

Microsoft Azure "Token configuration" -> "Add groups claim"
Complete the Edit group entitlement dialog page as follows:
- Activate security groups.
- Under ID, select the option NetBIOSDomain\sAMAccountName.
- Under Access, select the option NetBIOSDomain\sAMAccountName.

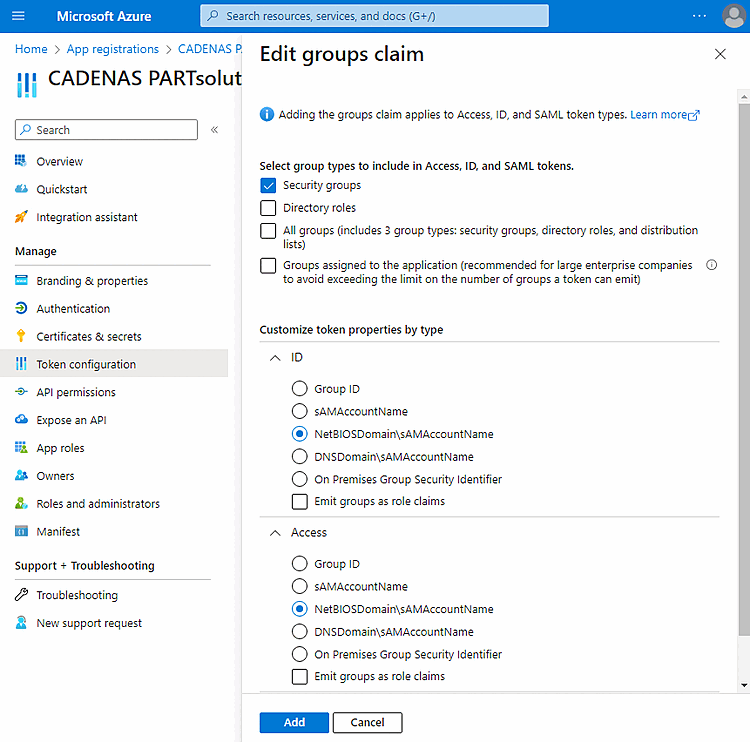

Microsoft Azure "Token configuration" -> "Edit groups claim"

Confirm with Add.

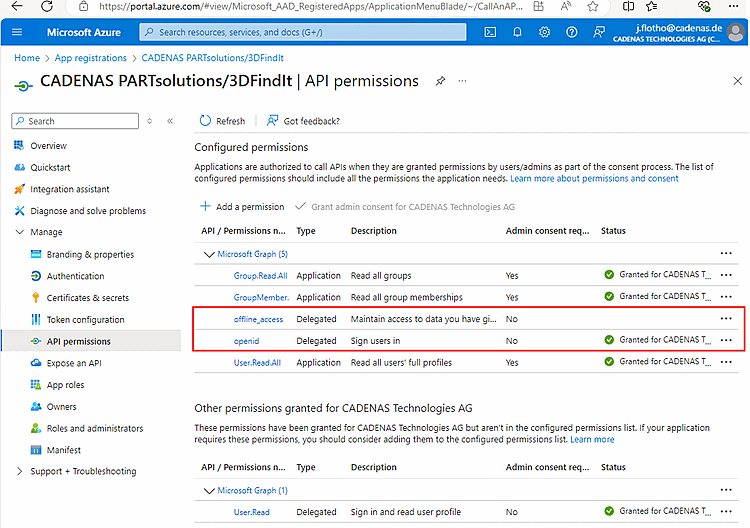

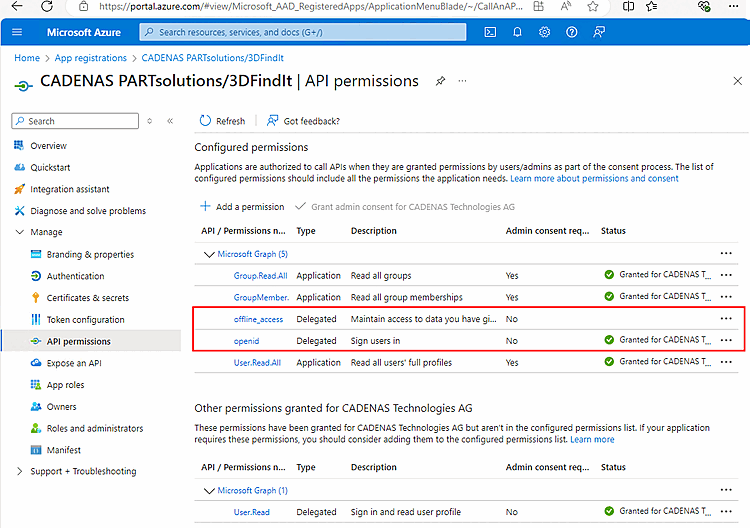

The following API authorizations must be set for the login to work:
- offline_access
- openid
The type must be set to "Delegated".

If Group.Read.All and GroupMember.Read.All and User.Read.All additionally set then within PARTadmin the users and groups can be can be listed. For pure authentication, this is not needed.
Open the summary. Here you can copy the desired IDs to the clipboard in order to paste them into PARTadmin.

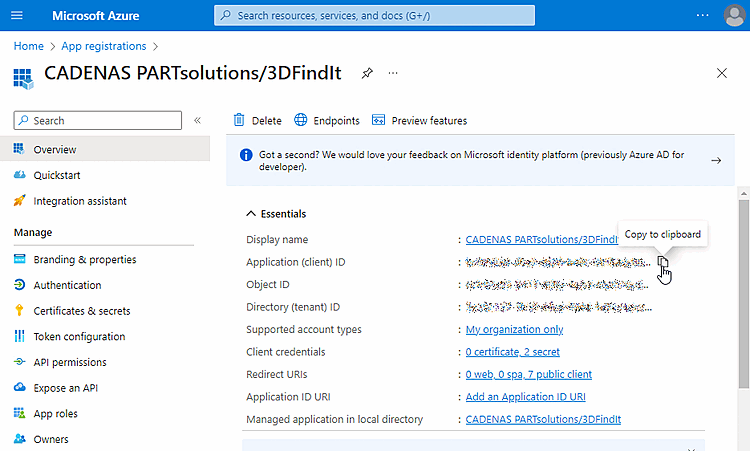

Microsoft Azure "Overview"

1.3.5.8.1.2.1.1.2. Register page "User databases "

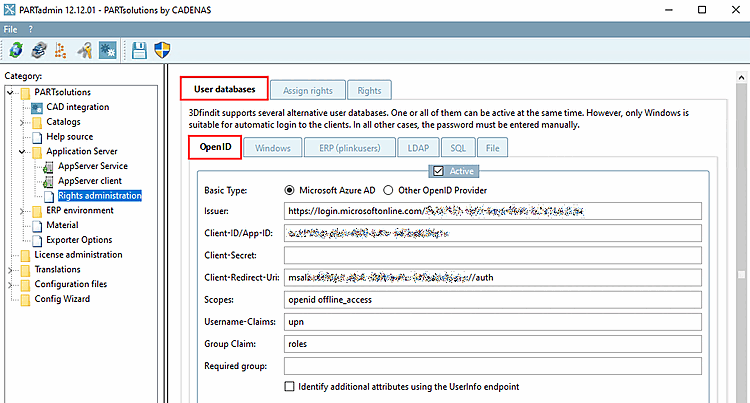

In PARTadmin, select the User databases tab page and the OpenID subpage under the Rights management [Rights administration] category.

Under Basic Type, select the Microsoft Azure AD option.

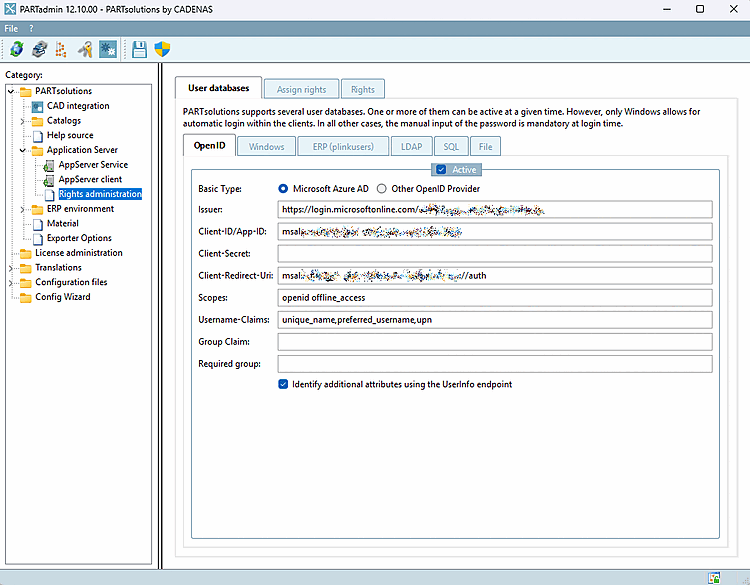

User databases -> OpenID

Fill out the individual fields according to the data from Microsoft Azure:

Issuer: This url specifies the path to the OpenID provider realm or the Azure tenant [This url specifies the path to the Openid provider realm or Azure tenant.]
Microsoft Azure:
```
https://login.microsoftonline.com/<Tenant-ID>/
```

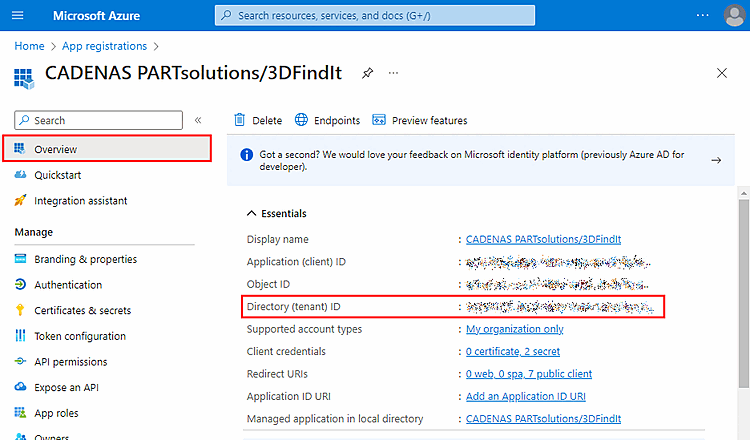

Microsoft Azure "Overview" -> "Directory (tenant) ID"
Client ID/App ID: The application ID or client ID for PARTsolutionsin the OpenID provider (AppId in the application registration of the Azure portal) [The application ID or client ID for PARTsolutions in the OpenId provider (AppId in the application registration of the Azure portal)]

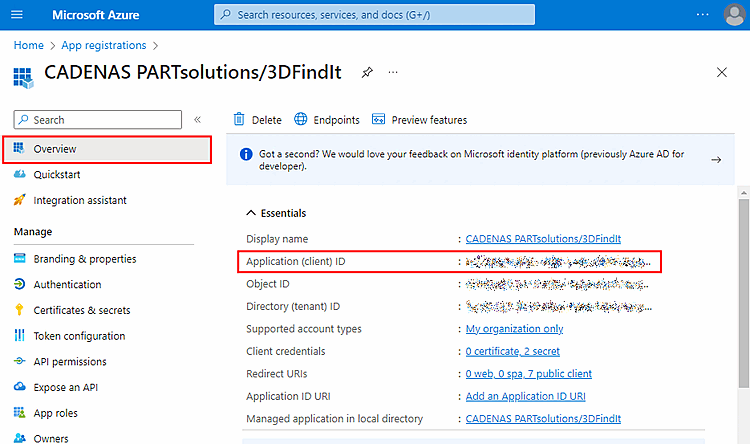

Microsoft Azure "Overview" -> Application (client) ID
Client secret [Client-Secret]: The client secret that is stored in the app registration for this client. Can be omitted if no listing of users/groups via the graph api is required. Only relevant for Azure [The client secret that is stored in the app registration for this client. Can be omitted if there is no need to list the users/groups via the Graph API. Is only relevant for Azure.]
The desired group can also be added manually by first using Test... to determine the correct group name. is used to determine the correct group name.
Normally, the option is not necessarily required unless the option Determine additional attributes via the UserInfo endpoint [Identify additional attributes using the UserInfo endpoint] is set.
You can create and read IDs under Certificates & secrets.

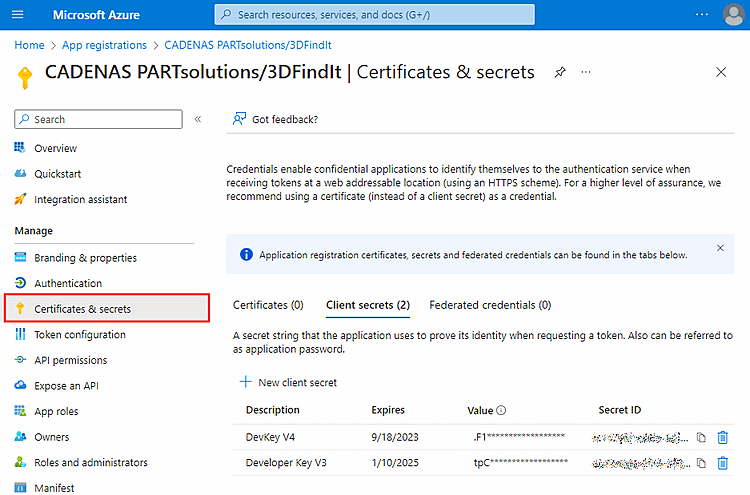

Microsoft Azure "Certificates & secrets"
Client-Redirect-Uri: If a client has problems setting up the OpenID, they should use this setting and the msal URI of their app registration page.
The redirect URI stored in the app registration that is to be used is entered here. If this field is empty, https://localhost/auth/login is used. This URI must then be allowed in the app registration. This entry is only intended for the mobile device and desktop applications platform. It is not used in the web application for 3Dfindit, but only for the login to PARTadmin or PARTdataManager. The URI entered here can be completely fictitious, as it is only relevant for the evaluation of the redirect from the OpenID provider. [The redirect URI stored in the app registration that is to be used is entered here. If this field is empty, https://localhost/auth/login is used. This URI must then be allowed in the app registration. This entry is only intended for the mobile device and desktop applications platform. It is not used in the web application for 3dfindit, but only for the login to PARTadmin or PARTdataManager. The URI entered here can be completely fictitious, as it is only relevant for the evaluation of the redirect from the OpenID provider.]
Example:
```
msa64992203d-d6b0-4900-c40c-641ba8c06e1a://auth
```
Scopes: Scopes required for authentication, separated by spaces. The default is "openid offline_access" [Required scopes for authentication. Separated by spaces. The default is "openid offline_access"]
Username claims [Username-Claims] (optional): Comma-separated list of claims that should be considered as the source for the user ID. The default setting here is "preferred_username,upn,email,sub" [Comma-separated list of claims to be considered as the source for the user ID. The default setting here is "preferred_username,upn,email,sub"]
Group claim [Group Claim] (optional): Name of the claim from which the group membership is to be extracted. Default is "groups" for Azure and "roles" for everything else. Can be changed to any other claim here [Name of the claim from which the group membership is to be extracted. The default is "groups" for Azure and "roles" for everything else. Can be switched to any other claim here.]
Required group: Name of a group in which the user must be in order to be considered a valid user. If no entry is specified, all users are considered valid [Name of a group in which the user must be in order to be considered a valid user. If no entry is specified, all users are considered valid.]
Determine additional attributes via the UserInfo endpoint [Identify additional attributes using the UserInfo endpoint]: Not relevant for Azure.

1.3.5.8.1.2.1.1.3. Rights assignment " tab page

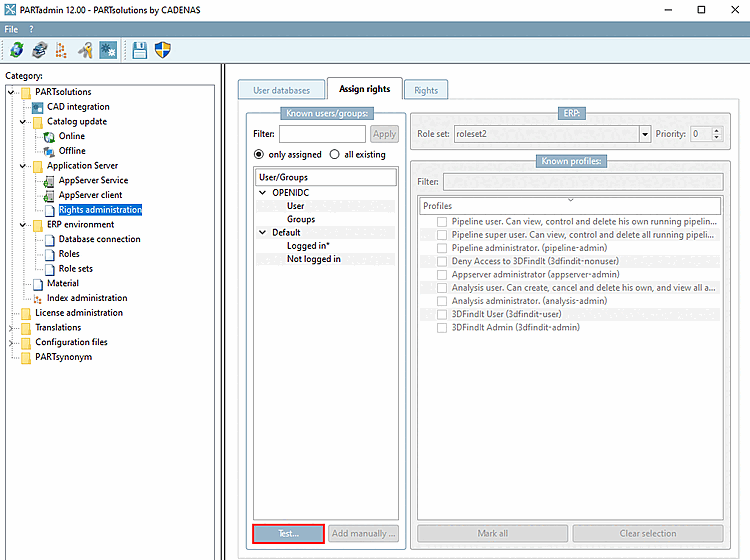

Open PARTadmin -> Rights management [Rights administration] category -> Rights assignment [Assign rights] tab page.

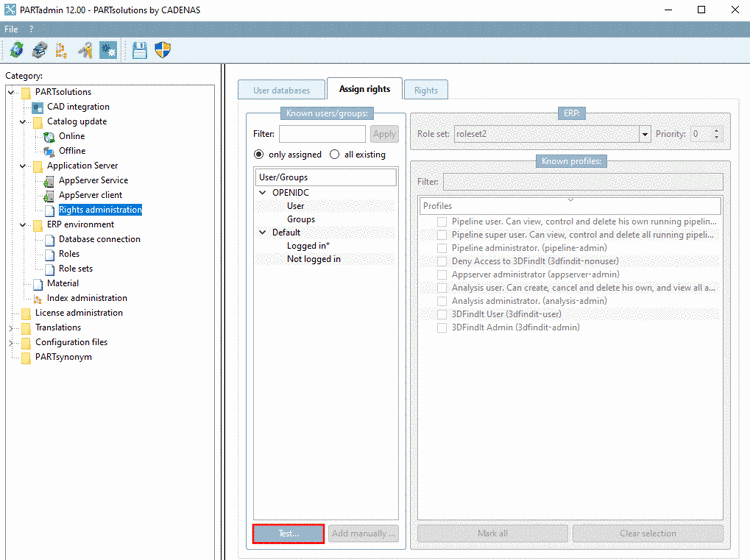

Rights assignment [Assign rights] " tab page
Click on the button Test.... [Test...]
-> The Check authentication [Check authentification...]... dialog box opens.

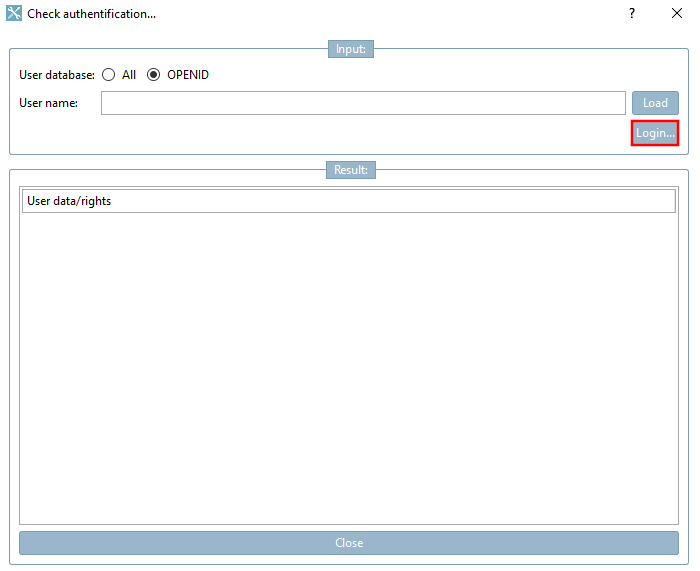

Login with OpenID
Select the OPENID option and click Login.... [Login...]

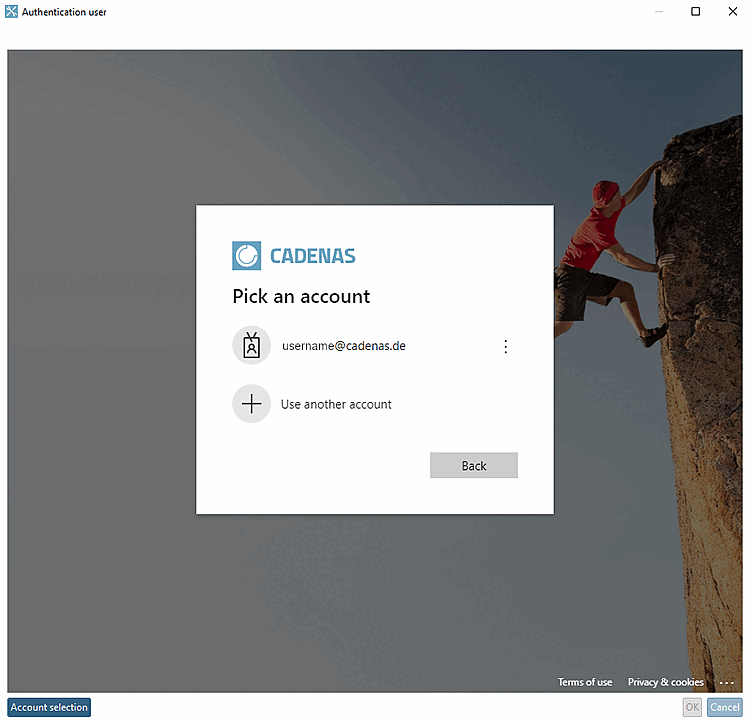

-> The Authenticate user dialog box opens.

OpenID login dialog
Click on your account, enter your password and click Sign in.
-> The data is displayed in the Result dialog area.

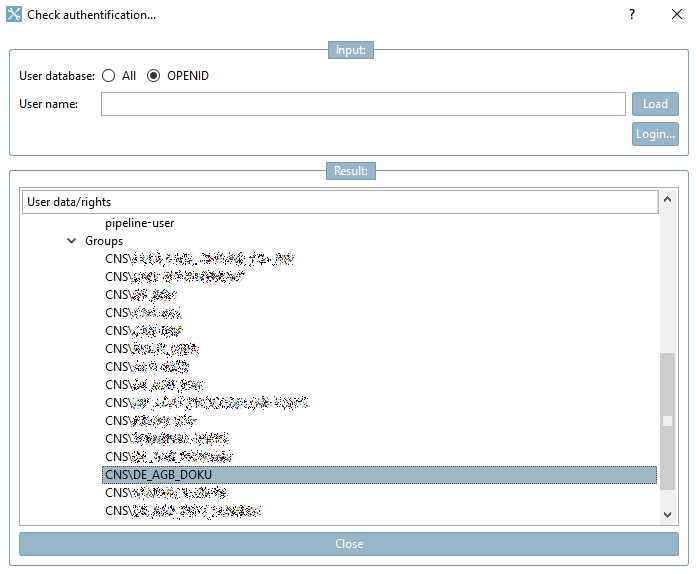

Detect available groups/users
Remember the desired user or group and close the dialog.

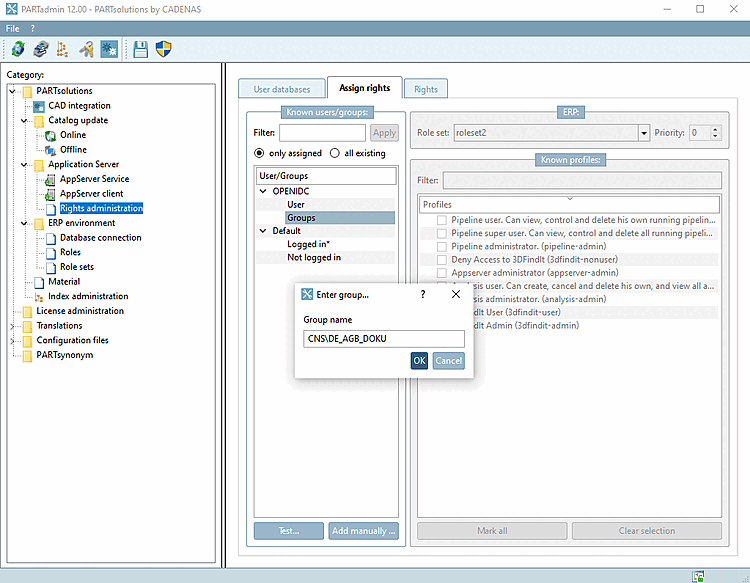

Select the entry User or Groups and click on Add manually.... [Add manually ...]
-> The Enter group [Enter group...]... dialog box opens.

Add group manually
Enter the user or group name and confirm with OK.
-> The entry is set.

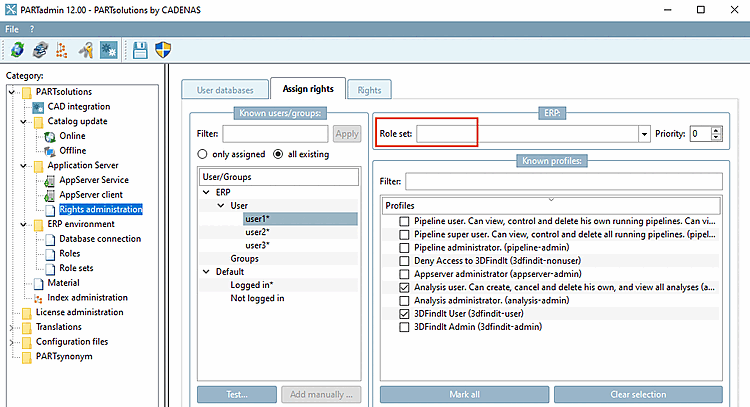

Assign the desired role set to group or user.

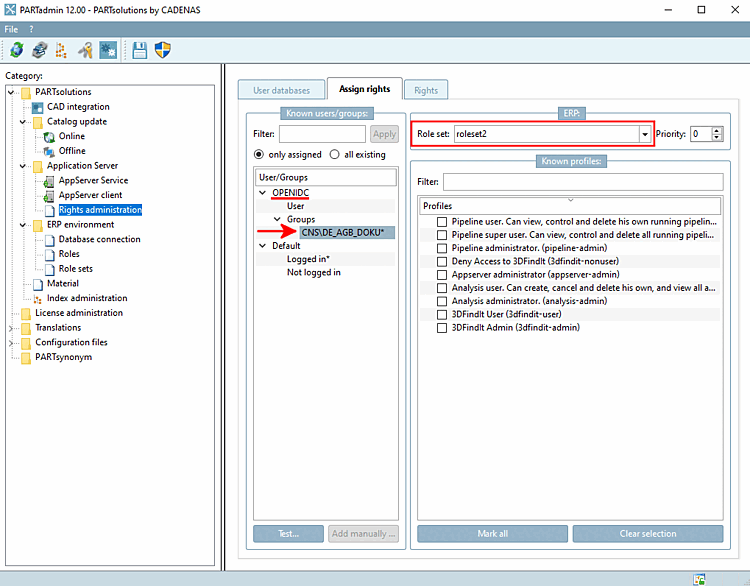

Assign ERP role set

Note
If no profiles [Profiles] are activated for the specific group, those under Logged in * are used.
Save your settings.
To test, start PARTdataManager and click on the Authenticate/change user [Authenticate/switch users] button.
-> The Authenticate user dialog opens.

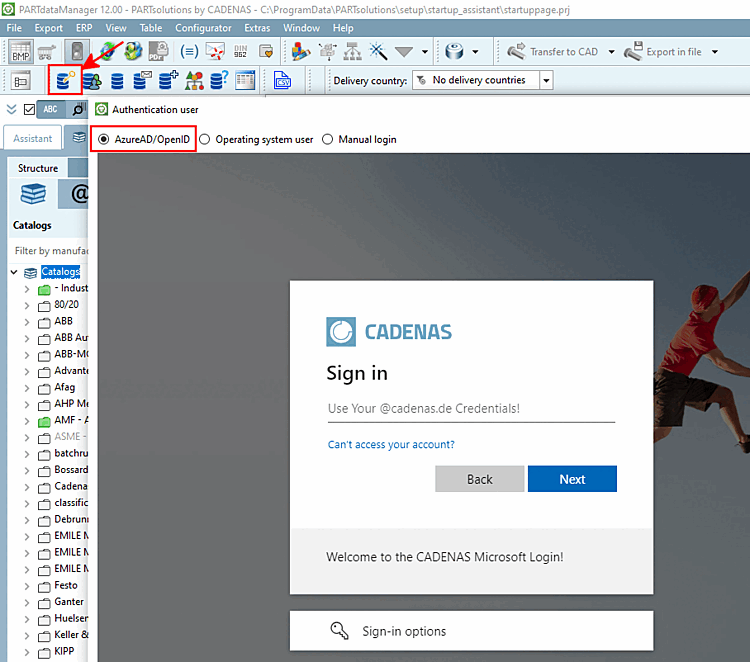

The login happens via "AzureAD/OpenID"
Log in with your username (e-mail) and password.

1.3.5.8.1.2.2. Windows " tab page

If a login via Windows user is to be possible (Autologin), the Active option must be activated on the Windows tab page.

The Active option is activated by default, which makes sense in the vast majority of cases.

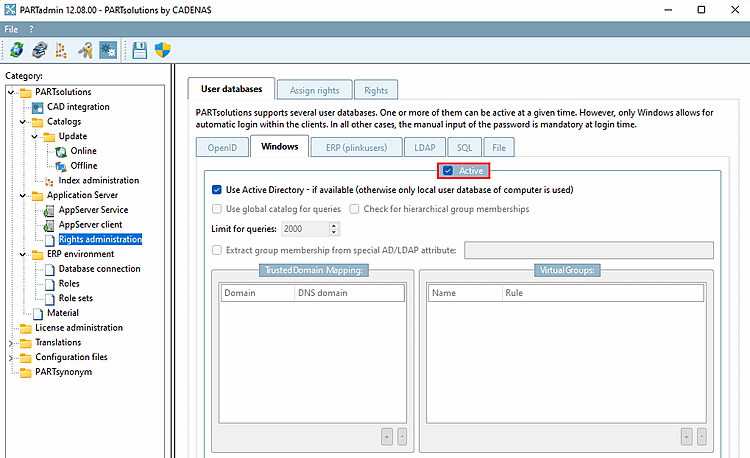

Example: Tabbed page "Windows"

If it becomes deactivated, a Windows-based user authentication is not possible.

Use Active Directory if available (otherwise only the local user database of the computer is used) [Use Active Directory - if available (otherwise only local user database of computer is used)]:

In Azure-ID / Entra-ID scenarios, computers may not be able anymore to resolve AD-Users via access to the AD-Controller (even if they are still joined to a domain).

In such situations it is not recommended attempting to resolve users via AD.

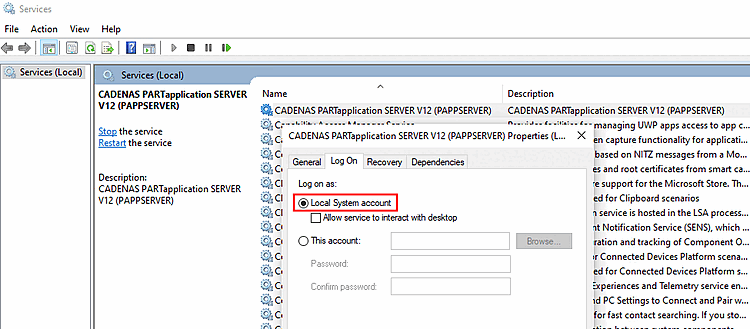

This option allows to disable AD lookups. The local user database still remains usable, since the server will probably run as a local user account.

	Note
	Deactivating the option will also prevent the PARTapplicationServer itself from using AD accounts. So you will not be able to use domain based service users there... You then must use local user accounts to run the service.

Use global catalog for queries: Activate the option for an Active Directory forest (default is "off")
Limitation for queries [Limit for queries]: Please make sure that no 0 is entered!
This happens when you remove the checkmark Active for Windows, then close and restart PARTadmin and then reactivate the user database "Windows".
Take nested group memberships into account [Check for hierarchical group memberships]: The evaluation is carried out recursively via hierarchically higher levels.

Tip
You may also need to use this setting when testing under the Rights assignment [Assign rights] tab page in order to record all affiliations.
Extract group membership from special AD/LDAP attribute:

Troubleshooting

If there are problems with the autologin in PARTapplicationServer via Windows user name, please check the following basic settings:

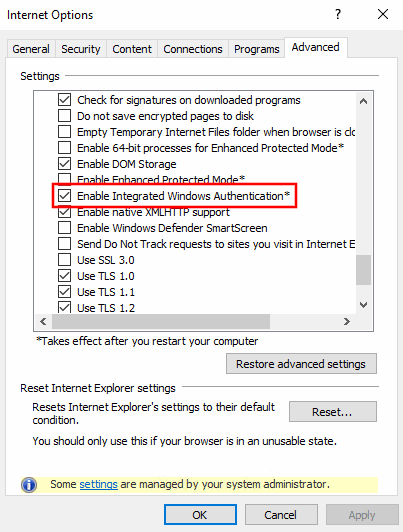

In the dialog "Internet options" -> tabbed page "Advanced", the option "Enable Integrated Windows Authentication" needs to be enabled.

Enable integrated Windows Authentication

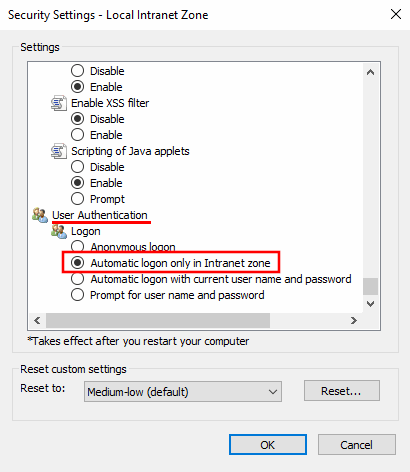

In the dialog "Security Settings - Local Intranet Zone" the option "Automatic logon only in Intranet zone" has to be enabled.

The http address of the Appserver has to be included in the local Intranet zone.

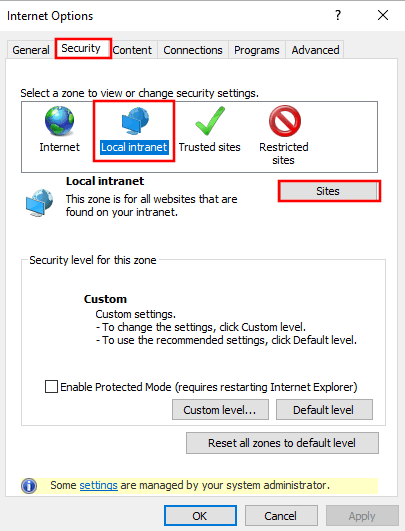

Tabbed page "Security" -> Local intranet -> Sites

1.3.5.8.1.2.3. ERP (plinkusers) " tab page

If login with ERP users is to be possible in the User authentication dialog, the Active option must be activated (default).

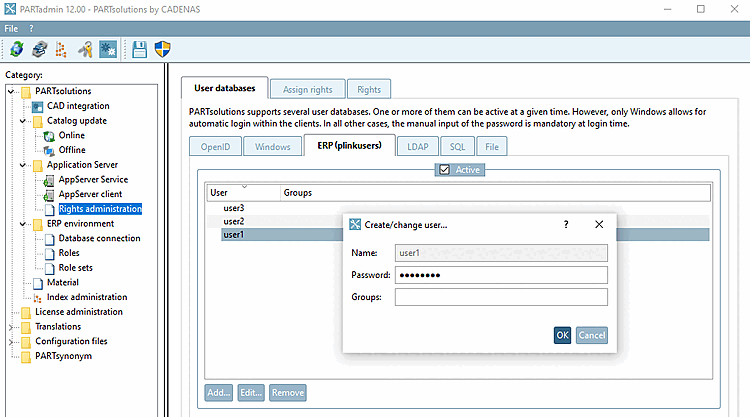

Create users via the Add [Add...]... button. button. Enter a name [Name] and password [Password] in the dialog. If you want to change the password later (via Edit... ), simply set a new one (the old one will not be displayed).

If the above requirements are met, user authentication can be carried out in the Authenticate user dialog with user and password entry.

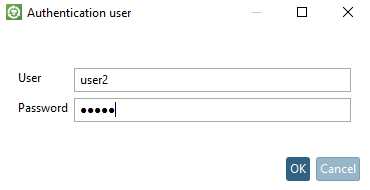

Authenticate user: User and password entry

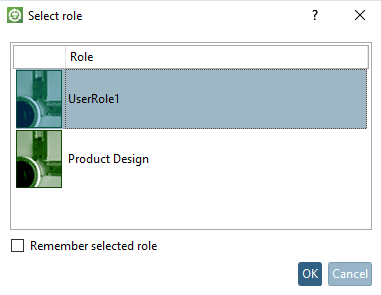

If several roles are available, the Select role dialog box opens.

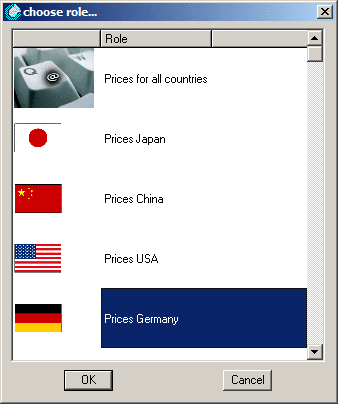

Select role

If no user can be authenticated, the error message Invalid username or password! appears:

Invalid username or password!

This will happen, if ...

... all user databases are deactivated

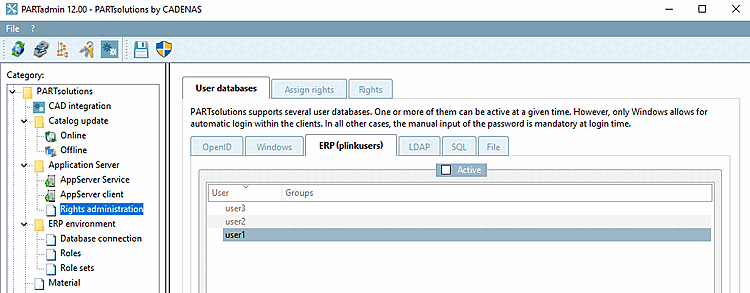

Exemplary user database "ERP(plinkusers)" deactivated
there is no mapping between user and role record (empty field, also no placeholder *).
