Connection elements such as screws, nuts, rings, bolts, etc.

For connection elements such as screws, nuts, rings, pins, etc. the cutting in the 2D view may be excluded. ^[41]

In image 1 below you can see that with activation of the respective classification attribute only the plate is cut and not the screw itself.

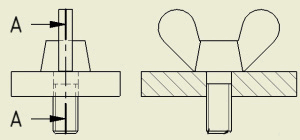

Image 1: Screw not cut

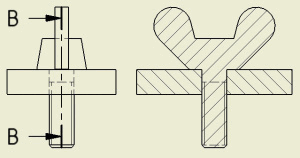

Image 2: Screw cut

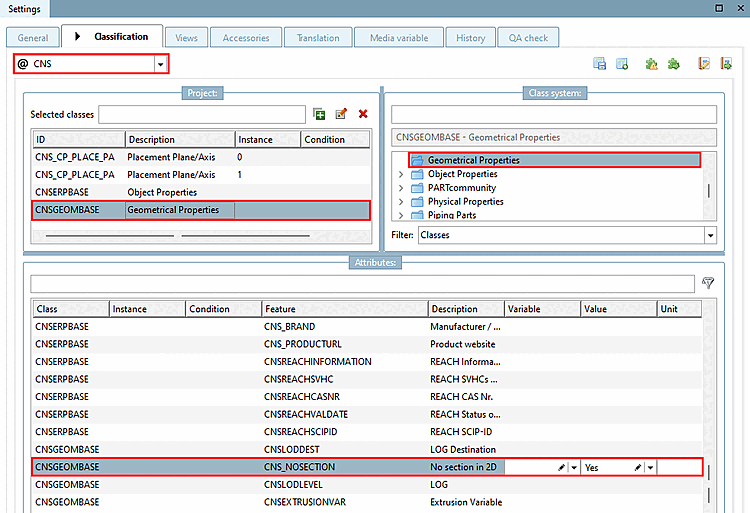

Under Edit project -> General -> Classification > Attributes (CNS), the feature CNS_NOSECTION can be set to Yes.

Note In exceptional cases, Consulting can step in via configuration file and so declare certain directories/projects in this way. Local changes in the project file are not target-aimed, because these will get lost at next catalog update. Changes should be performed centrally during modelling process.

Important Information for regular customers when updating to V11: An Update of CNS classification and affected catalogs is mandatory.
