Click on the icon 2D Sketch.

-> The dialog area is opened.

Draw a sketch (depending on the part's complexity one or up to three) or load a picture.

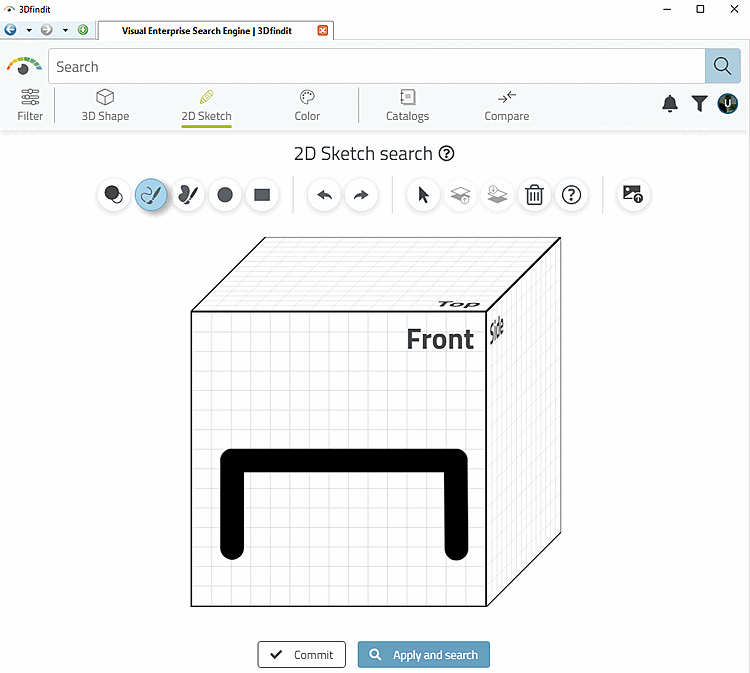

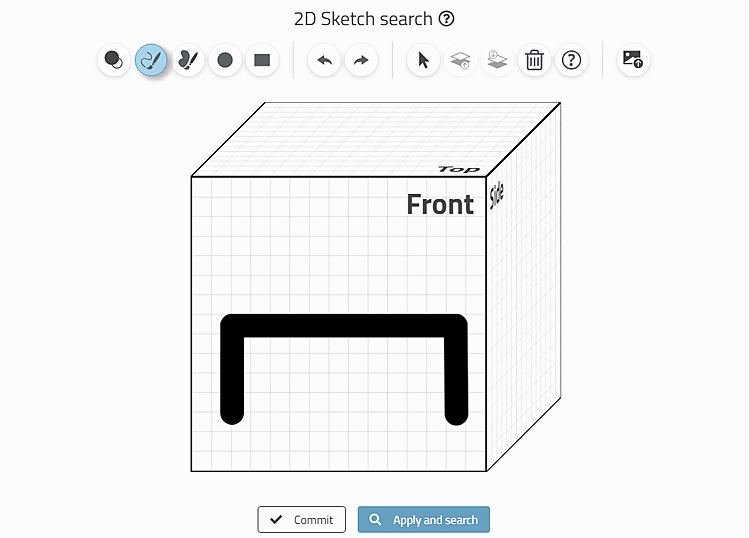

1st Sketch

Enter a value for the minimal Similarity. Default is 75.

Click Apply and search. Optionally filter for a certain manufacturer.

-> The results are displayed.

-> In the search field, the search parameter (or multiple) is displayed.

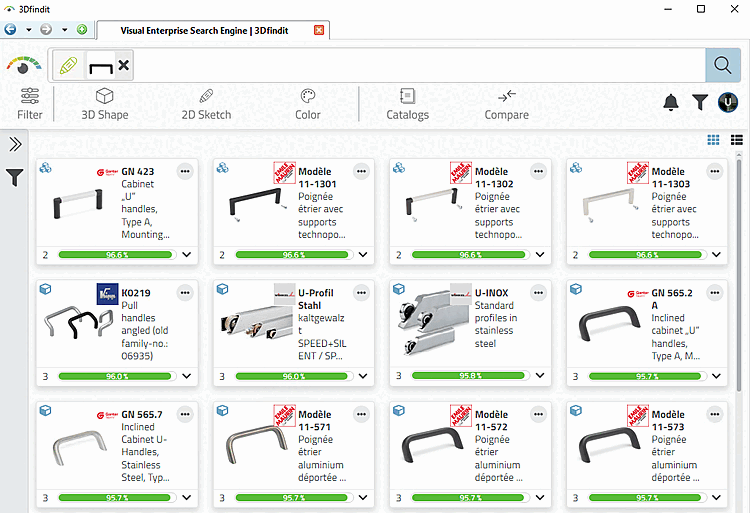

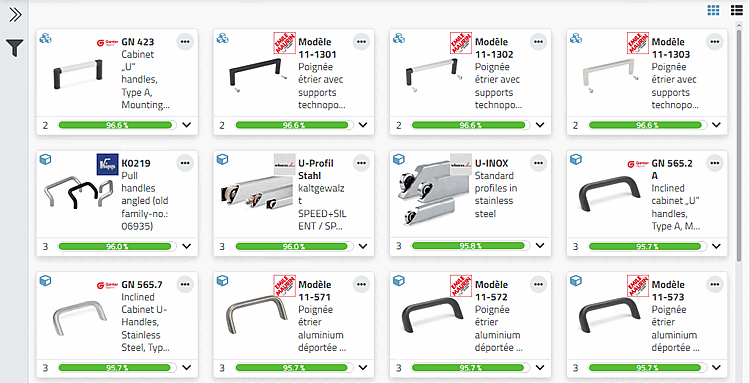

Result with one sketch

Create a second sketch in side view.

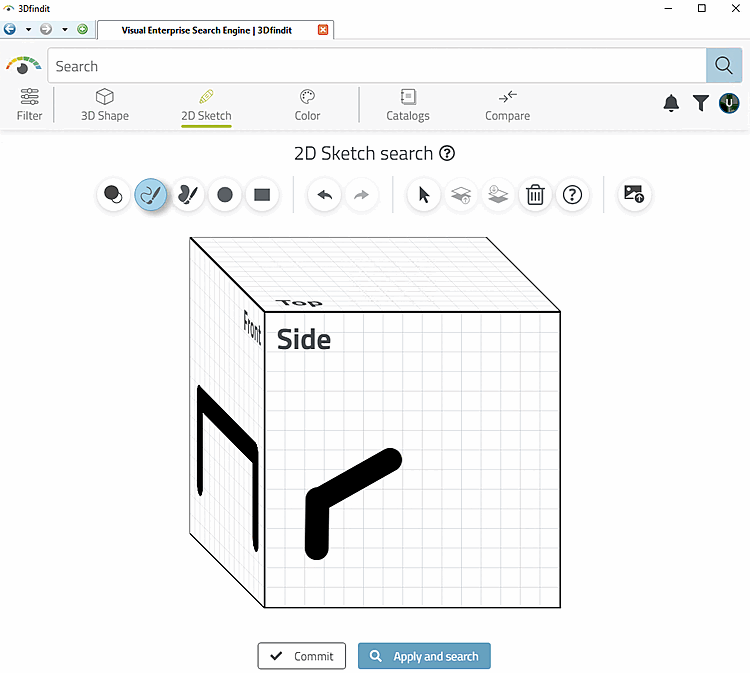

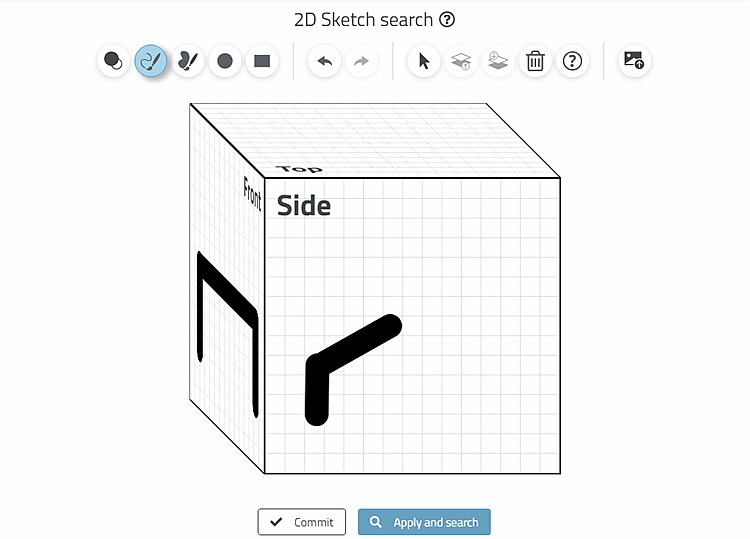

2nd Sketch

Click Apply and search.

-> Now the desired result appears at the first position.

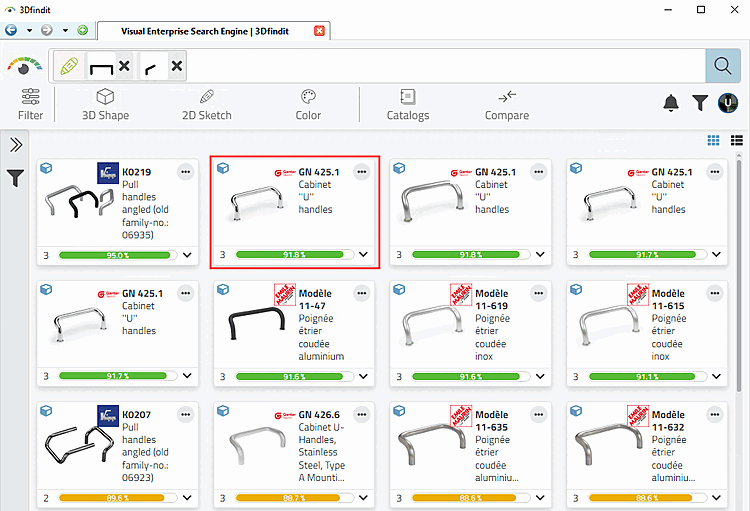

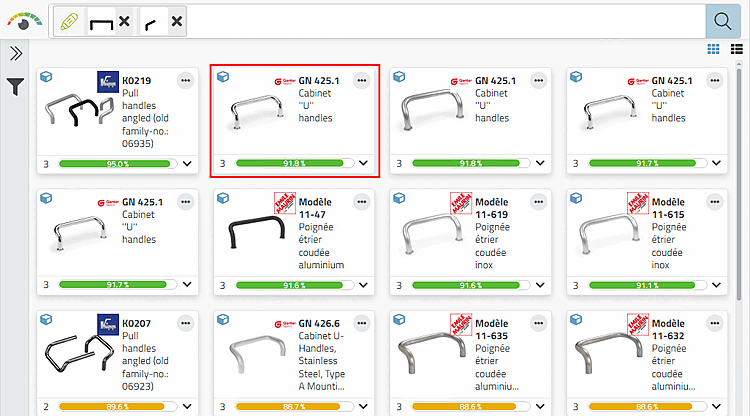

Result with two sketches
