5.10.2.2.  Allocate 2D derivation in PARTproject

The corresponding allocations take place in PARTproject -> tabbed page Views -> dialog area 2D derivation.

Dialog area 2D derivation

Dialog area 2D derivation

  1. Under View choose a standard view if you want to replace this through a modified view

    or

    if you want to add a self created view, enter it with free text input.

    [Note]Note

    If the drawing is saved internally in the 3D model, you must use exactly the name given before.

  2. Under 2D model choose:

    • From 3db file, if you have created an internally saved 3D drawing in the sketcher.

    • One of your models created in the sketcher, which you saved into the respective directory.

      This is displayed in the list field if it is available as a .2db file in the project directory (in above figure exemplarily "senkkopf.2db)

  3. Choose Add or Replace or Overlay:

    • Add

      Is only possible if you chose a self-created view!

    • Replace

      Is only possible if you chose a standard view. The respective standard views will then be overwritten.

    • Overlay

      With the help of "overlay", extra details from a 2db file can be incorporated in a standard 2D derivation.

      The third figure exemplarily shows an overlay of standard derivation and extra 2db file.

      Standard 2D derivation

      Standard 2D derivation

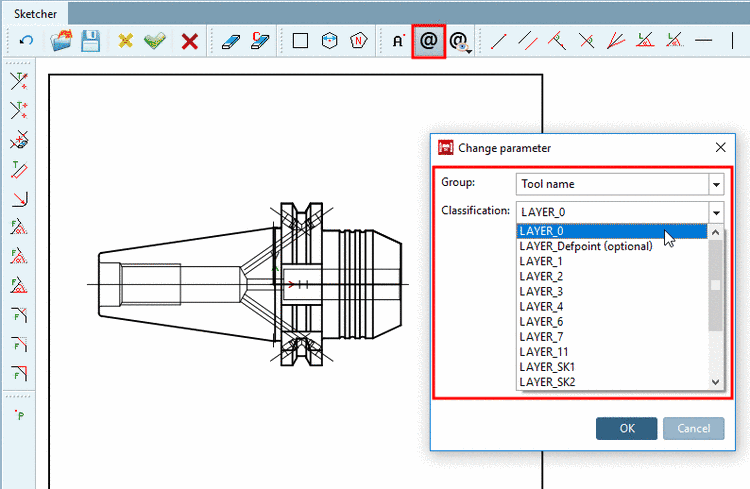

      Extra 2db

      Extra 2db

      Standard 2D derivation overlaid with extra 2db

      Standard 2D derivation overlaid with extra 2db
