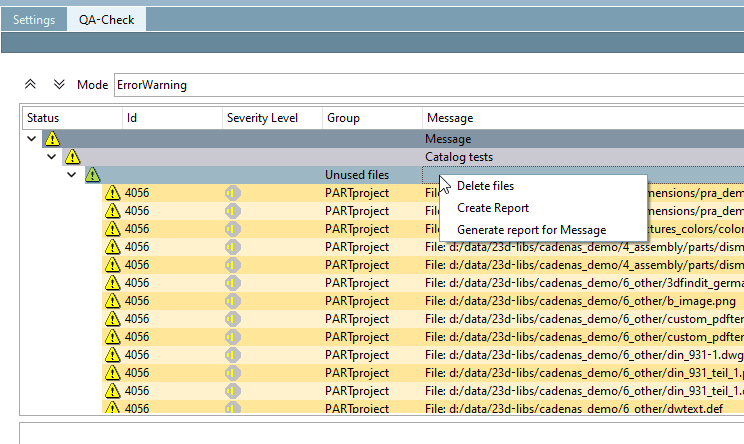

Find unused files: Finds all files which are not assigned to a project. You can either allocate such files to a project or delete them.

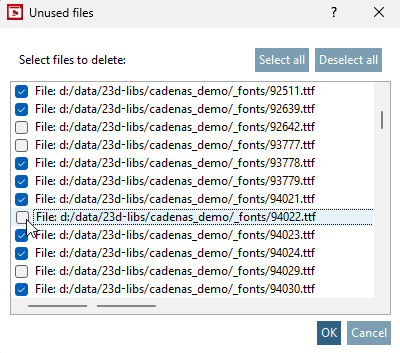

Note Please note that supposedly unused files may possibly be used in other directories. So you should only delete files where you are quite sure that they are no longer required!

Test geometry on CAD compatibility: This checks the component geometry for geometrical integrity.

Active if under tabbed page General, the option Calculate geometry is also active.

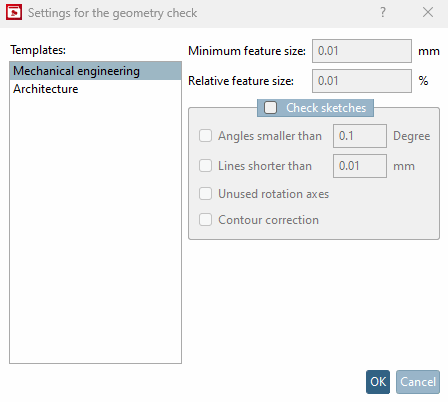

Check geometry

Select the settings for Mechanical engineering or Architecture.

Test standard part identifier: The standard part identifier, e.g. ’Hexagon nut DIN 1587 $ NENN.’(displayed in PARTdataManager, in the tab of the docking window of the 3D view), which you have entered in PARTdesigner (Identification data) may, under certain circumstances, be incomplete or incorrect. For example, if column values (representing an element of the standard part identifier) prompted in certain rows are not present.

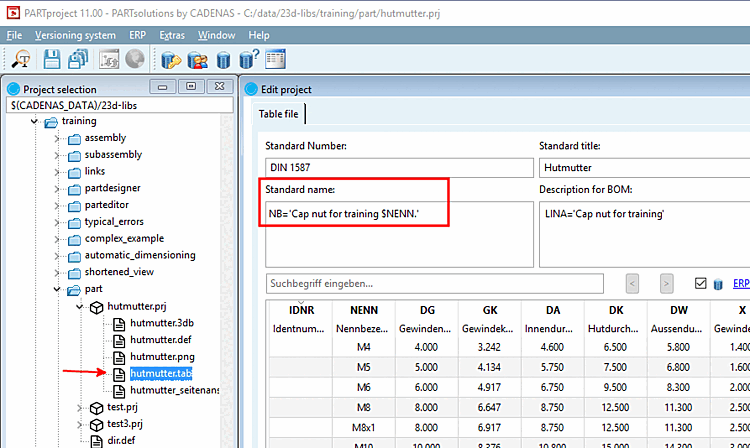

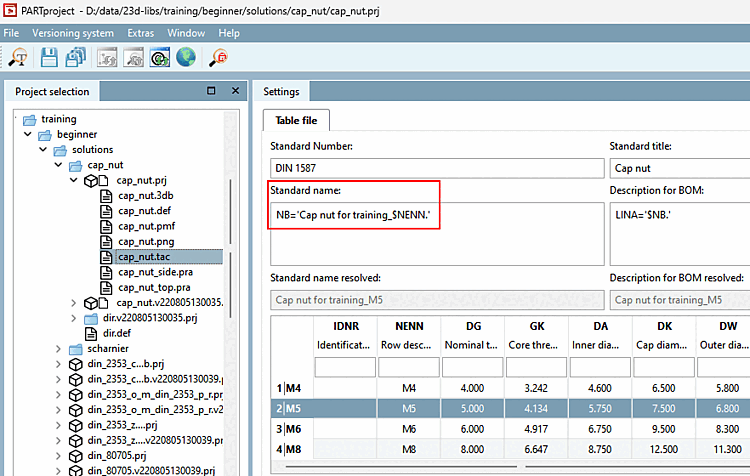

Standard name in PARTproject when selecting the tab file

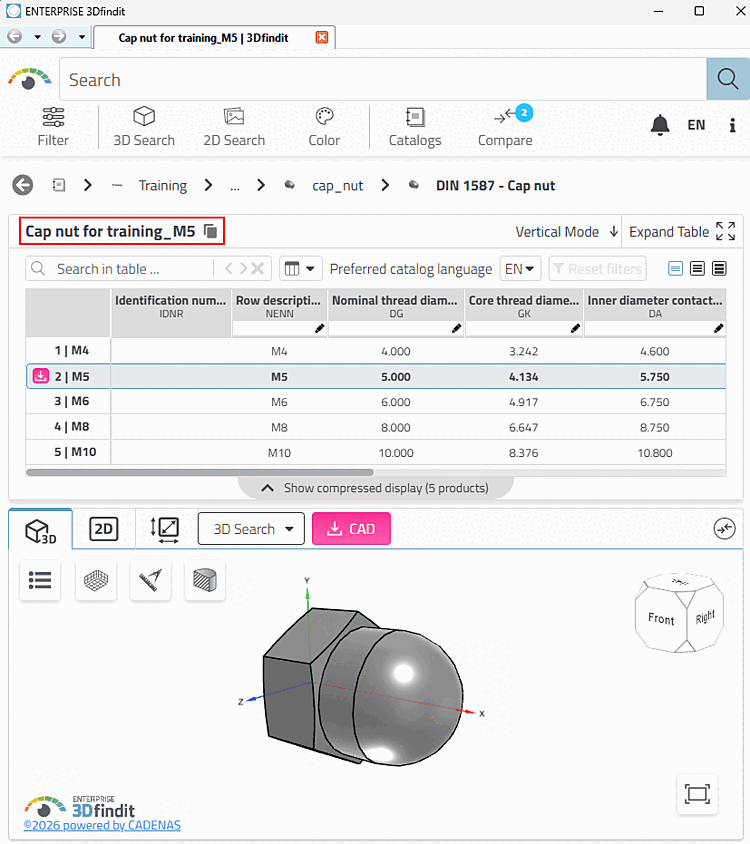

Standard name in PARTdataManager, in the tab of the docking window "3D view"

Test standard part identifier for uniqueness: ...Compares all Standard names, which may occur as the result of the various attributes (rows). If a Standard name (NB) occurs more than once, it is not unique. --> You must adapt the Standard name (NB) in a way that it is always unique!

Test short name: During the export of parts from PARTsolutions to different CAD systems, it is normal for the Standard name (NB) to be adopted as part name. As certain CAD systems have a string limit for the part name, alternatively the Short name is applied.

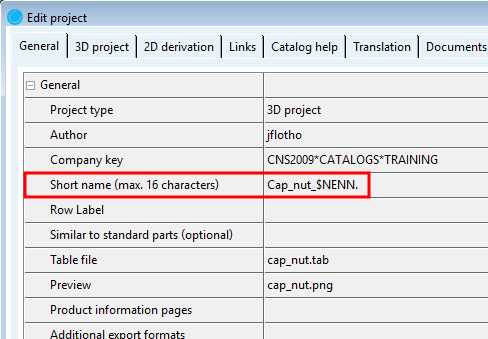

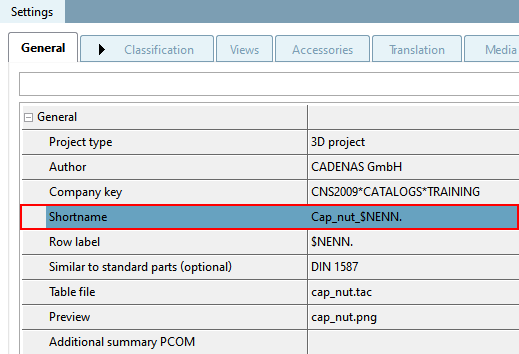

PARTproject -> Edit project -> tabbed page General -> Short name (max. 16 characters)

The Short name is a "reduced" (preferably as short as possible) version of theStandard Name (NB), limited to the - maximum length (max. 16 characters according to CAD!).

If the string of a Short name is larger than this limit, an entry is created in the log file.

Test short name based on uniqueness: The Short name must also be unique, as must the Standard name (NB).

Test name of project files for uniqueness: The name of every *.prj file must also be unique since, otherwise, an assembly may use “the wrong one” if there are two identically named *.prj files (with different content).

Test standard numbers for uniqueness: This excludes standard numbers occurring more than once.

Test order number for uniqueness: The option Test order number for uniqueness also contains a test for ReverseScripts. For this, Test value ranges has to be enabled in addition. See above.

Also see Section 5.12.7, “Classification according to CNSORDERNO / CNSTYPECODE ”.

Find unused variables in 3db files: Checks all *.3db files belonging to the selected directory in order to establish whether they contain variables which are not used. The variables found may be identified in the log and then deleted if applicable.

Delete unused variables in 3db files: If this option is checked, the variables found with Find unused variables in 3db files are deleted directly.

Important What counts for files, also counts for variables. Please remember that possibly unused variables may be linked to assemblies. Therefore only delete variables where you are absolutely sure that they are no longer needed.

Test bitmaps: PARTproject sets a limit for the bitmaps used as a preview.

Images which exceed this limit are recorded in the log. The file size (and, thus, the loading time) of the bitmap can be reduced accordingly using conventional image editing.

Find obsolete part colors in assemblies:

Test MIdent:

Test CAD formats:

Active if under tabbed page General, the option Calculate geometry is also active.

Test classifications:

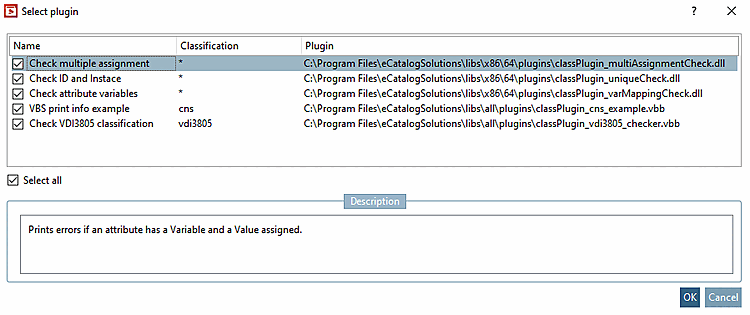

For the testing of classifications, different plugins are available. Under Classification list a short description is displayed.

-> The dialog box Select plugin is opened. Under Description, a short description is displayed after selection.

Classification list

Note These plugins displayed here have nothing to do with the ones under tabbed page Plugins.

Check script syntax:

Test custom dimensions:
