1.4.1.4.1.  "CSV source" Node

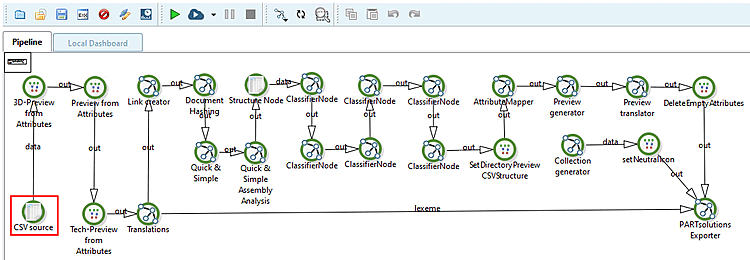

"CSV source" Node

"CSV source" Node

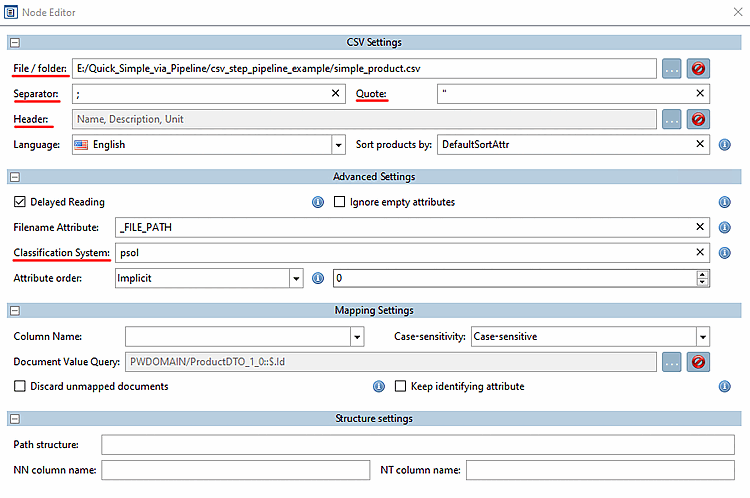

"CSV source" Node > Node Editor

"CSV source" Node > Node Editor

  • File / Folder: Select the path to the source of the CSV file.

  • Separator / Quote: Enter these according to the use in your CSV file.

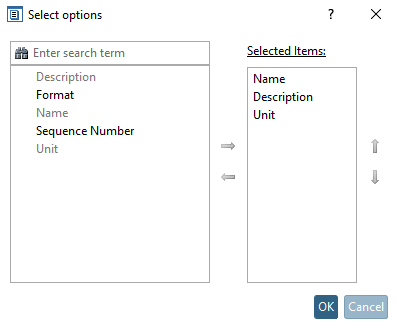

  • Header: Select the items according to the structure of your CSV file.

    • 1st row: Variable name

    • 2nd row: Variable description

    • 3rd row: Unit

  • Classification System: For this type of import, "psol" must be entered here.
