PARTadmin -> Category: PARTsolutions -> ERP environment -> Roles -> ECAT1-6

The preferred series [Preferred ranges] and export condition [Export condition] can be set independently of each other. In this example with user "ecat", both contain the same condition.

((ERP_PDM_NUMBER.NE.'').AND.(PRICE<1-6>.GT.0.0))

That means, to fulfill the condition, an ERP_PDM_NUMBER must exist and a price greater than 0 must be set.

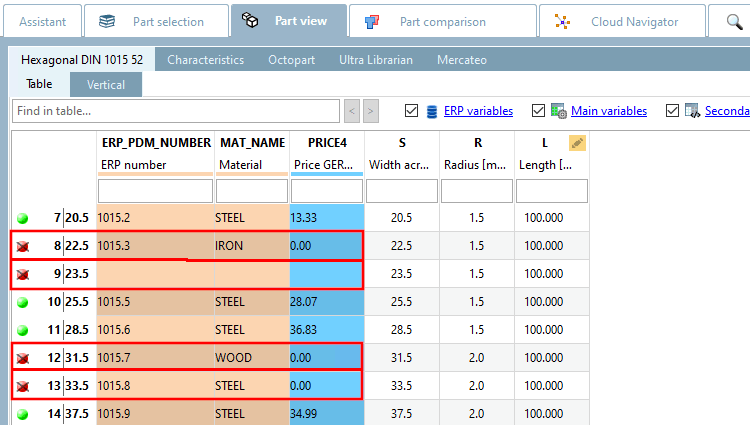

If one of the two conditions does not apply, the status light is on red. That means, respective part cannot be exported to CAD.

User: ecat - Role: Prices Country GERMANY [Prices Germany]

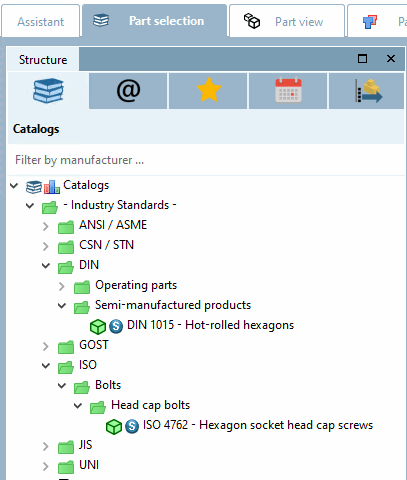

In the index tree, directories containing at least one part fulfilling the condition are depicted in green. All other directories are displayed in semi-transparent color.

When the preferred row [Preferred ranges] is switched on all rows with a red status display disappear from the table.

Only green directories and projects are displayed in the catalog index (structure tree).
