5.2.2.3.  Model rotation

model rotation [Model rotation]

[Note]Note

Views that contain a dimensioning can be recognized by a corresponding icon with a dimensioning line (in the following list below at View front (Z) [Front view (Z)] and View left (-X) [Left view (-X)] ).

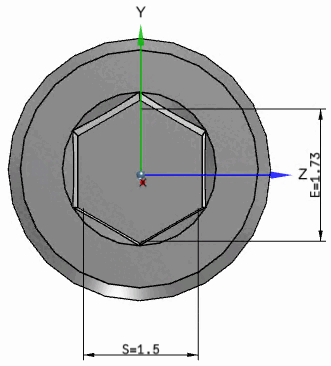

View with dimension lines

View with dimension lines

  • Front view (Z) [Front view (Z)]

  • rear view (-Z) [Rear view (-Z)]

  • View Left (-X) [Left view (-X)]

  • Right view (X) [Right view (X)]

  • View at the top (Y) [Top view (Y)]

  • view below (-Y) [Bottom view (-Y)]

  • Isometric View [Isometric view]

  • Animation
