1.1.1.3.1.10. Context menu on a surface: Align camera to surface

In the 3D view in PARTdesigner, you can now zoom directly to a surface via the context menu and center the view on this surface.

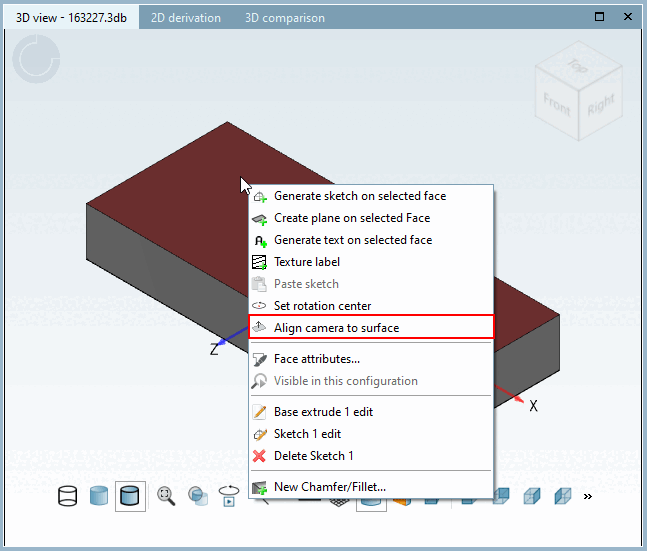

Align camera to surface Function

Align camera to surface Function

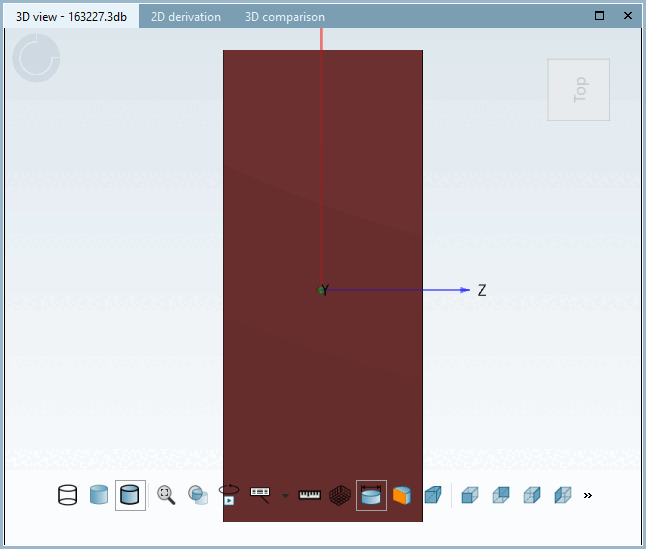

Example result of the function

Example result of the function

Further information on the functions of the context menu can be found in the chapter Section 7.7.1, “Context menu commands at single parts” in eCATALOG 3Dfindit.
