5.12.12.1.3.1. Project creation

When creating a new project the correct axes orientation should already be considered by the selecting the template.

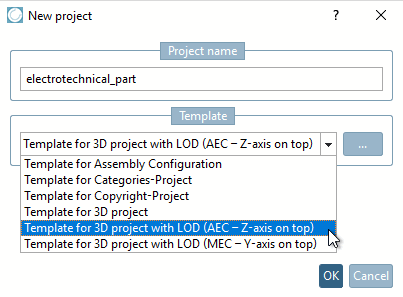

Template for 3D project with LOD (AEC – Z-axis on top)

Template for 3D project with LOD (AEC – Z-axis on top)

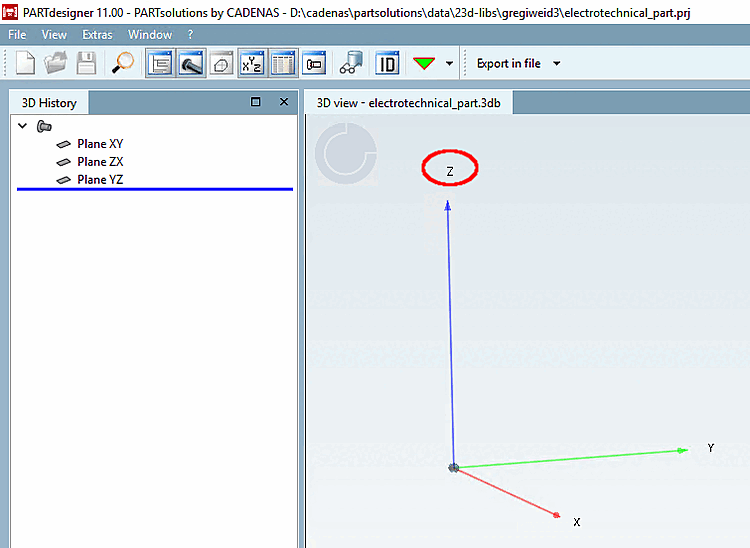

Result:

Template for 3D project with LOD (AEC – Z-axis on top)
