5.9.17.3.1. Inherit datasheet PDF template by Copy & Paste

Initial situation: A data sheet PDF template, which was created in PARTtemplateDesigner for a test project, is to be inherited to the catalog root element.

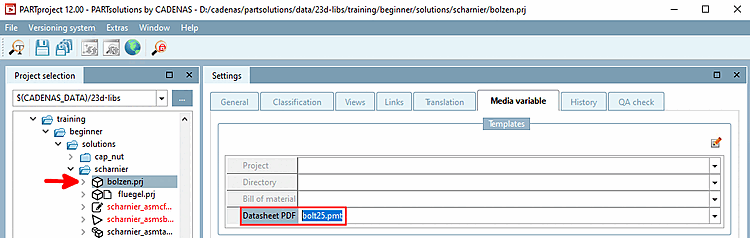

  1. Select the Media Variable tab page.

  2. In the project selection [Project selection], select the project to which the template to be inherited is assigned

  3. Copy the template in the Data sheet PDF [Datasheet PDF] line with Ctrl + C.

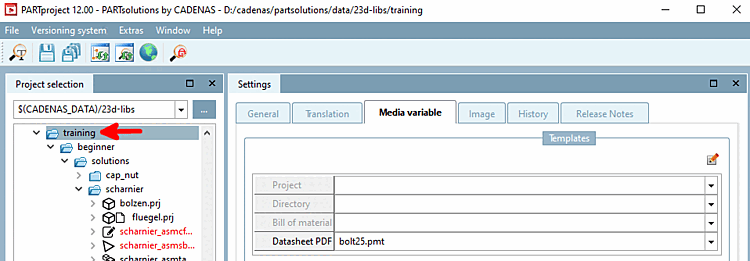

  4. Select the catalog root folder (or any other subfolder or project)

  5. Insert the template in the Data sheet PDF [Datasheet PDF] line with Ctrl + V.

  6. Save in PARTproject.
