3.1.6.7.3.  Filter

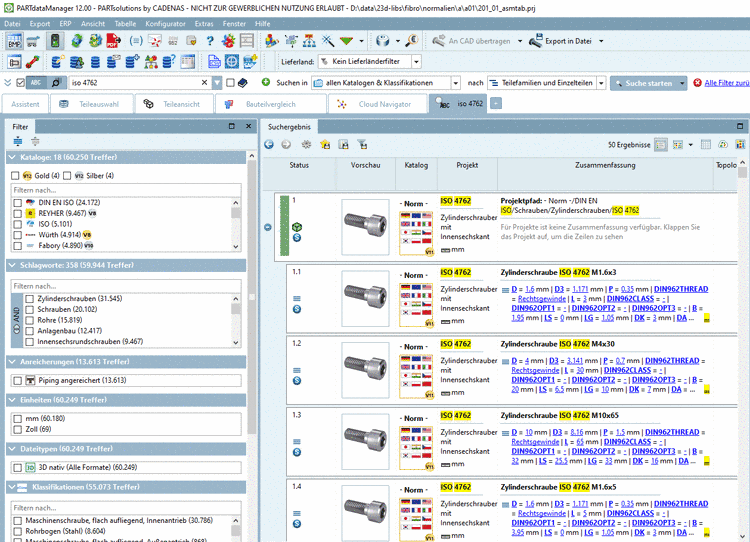

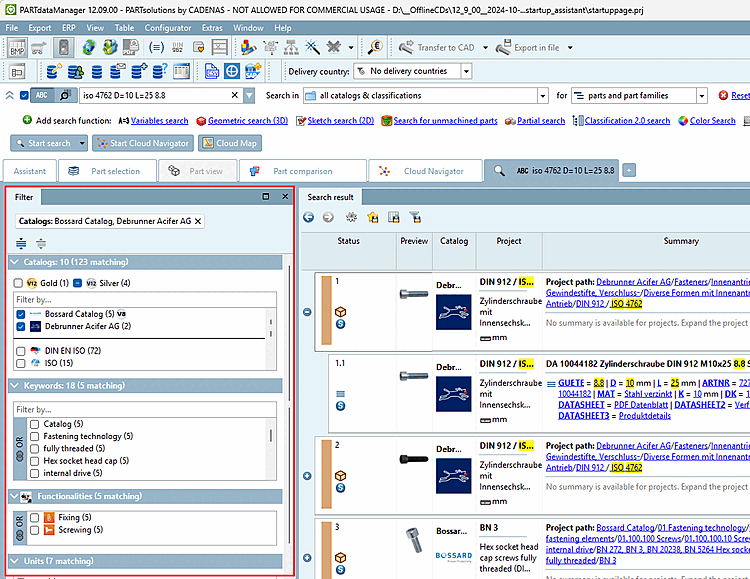

After a Full-text search or Variables search the dialog area Filter is displayed which contains following filter categories:

  • Seal

  • Manufacturer

  • Keywords

  • Units

  • File types

  • Classifications

  • Standards

  • Certificates

  • Diverse table variables like order number, customs tariff number, width, length, etc.

If hits were made over multiple catalogs, then have the possibility to restrict the results to a certain catalog (or several) subsequently.

After each new search the filter is reset.

Catalogs with quality seal are accordingly highlighted in Filter and in the list of Search results.

Icon

Meaning

Version 8/9/10/11/12 catalog quality seal gold (see Section 3.1.18.1.1, “Catalog Quality Seal ”)
Version 8/9/10/11/12 catalog quality seal silver (see Section 3.1.18.1.1, “Catalog Quality Seal ”)

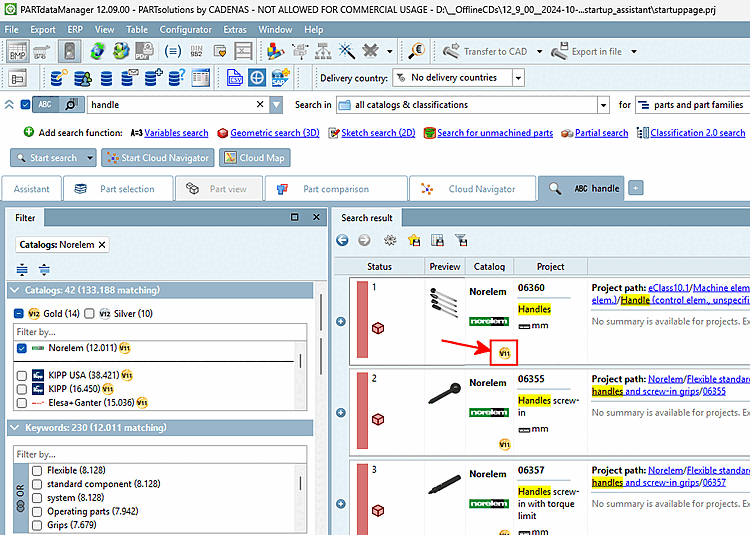

Search results in Details view

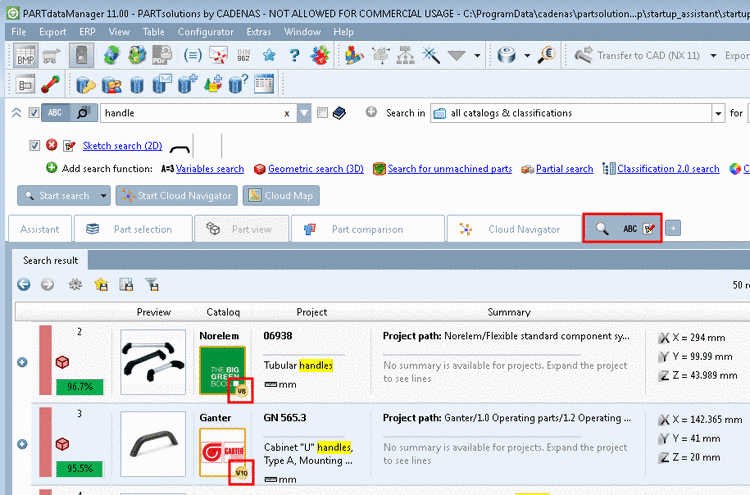

Search results in Details view

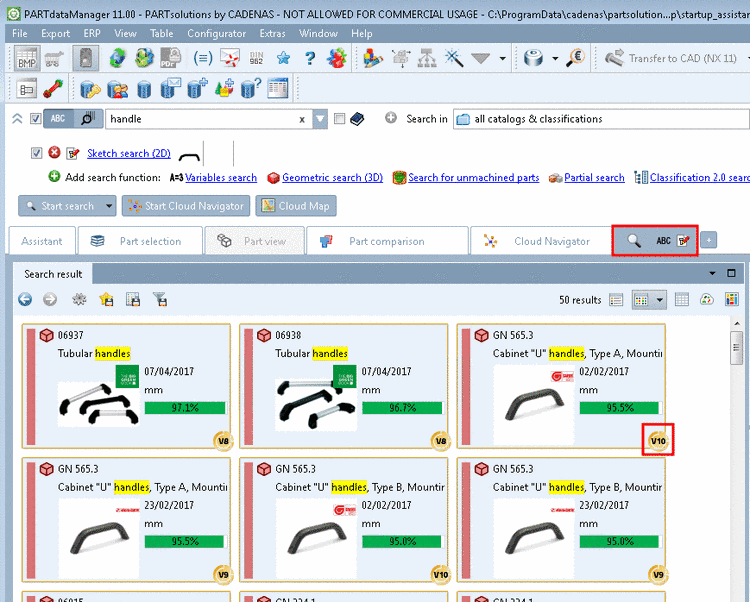

Search results in Symbols view

Search results in Symbols view
