1.2.1.2.2.13. Variable management: Coloring in the "Characteristic algorithm" window

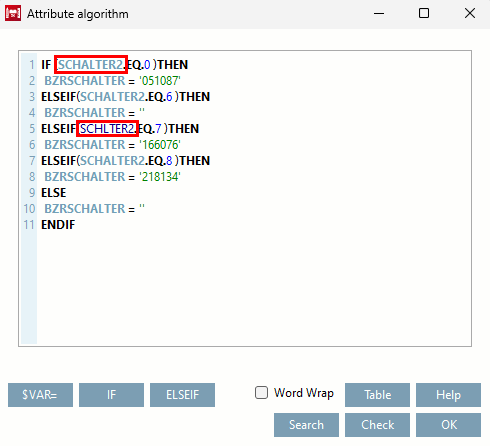

The coloring in the dialog window Characteristic algorithm [Attribute algorithm] (accessible in PARTdesigner via Variable manager [Variable Manager] > ... ) has been improved, so that variables now appear light blue if the system recognizes them. Variables that are not recognized, however, appear in dark blue.

Further information on the feature algorithms can be found in the Section 7.8.12, “ Attribute algorithms ” in eCATALOG 3Dfindit chapter.
