5.3.4. Status display in table

For all roles of the user "location" an extended status display (not only green/red as e.g. for user"ecat") is used (recognizable by the fact that there are entries on the Display tab page in PARTadmin.

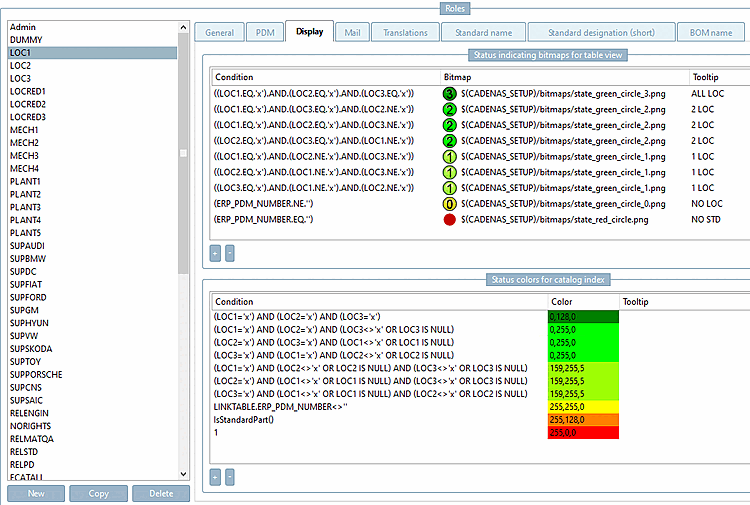

Example LOC1: Tabbed page "Display" - Conditions with assigned graphics and tooltips

Example LOC1: Tabbed page "Display" - Conditions with assigned graphics and tooltips

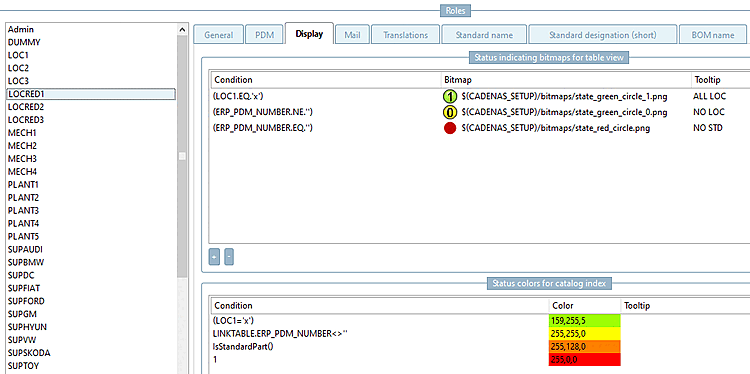

Example: LOCRED1: Tabbed page "Display" - Conditions with assigned graphics and tooltips

Example: LOCRED1: Tabbed page "Display" - Conditions with assigned graphics and tooltips

Used Icons:

  • this is NOT a standard/purchase part [No standard part]

  • : This standard/purchase part is not available at any location [This standard/manufactured part does not exist at any location]

  • : This standard/purchase part is available at one location [Part exists at one location]

  • : This standard/purchase part is available at two locations [Part exists at two locations]

  • : This standard/purchase part is available at all locations [Part exists at every location]

The export condition is independent of the display of status lights, however, should be consistently with it. See Section 5.3.7, “ Export condition ”.

For details see Section 7.2, “ Rollers: Tabbed page "Display" ”.
