1.1.1.3. CAD / PDM /
PLM 1.1.1.3.1. Inventor:
"Replace" and "Partial Search" require preselected
elements |  |
| Prev | Next |

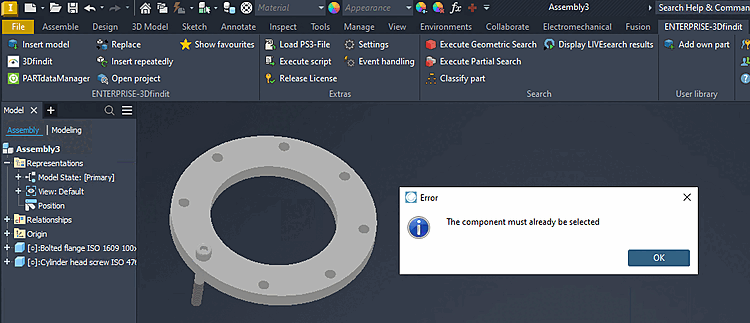

Functions such as Replace [Replace] and Partial Search [Partial search] now work exclusively with elements that have already been preselected in Inventor. If no preselection exists, a corresponding error message is displayed.
If you use the "Replace [Replace] with Selected Component" option, the process proceeds as usual; otherwise, a corresponding error message appears. For details on the "Replace" [Replace] function, see Section 3.5.6, “ Replace ” in ENTERPRISE 3Dfindit - User.
Example Partial Search [Partial search]:

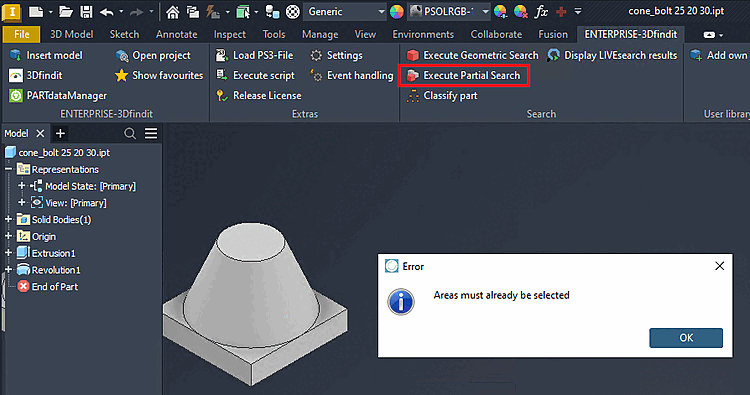

If no feature is preselected in " Partial Search [Partial search]," an error message appears.

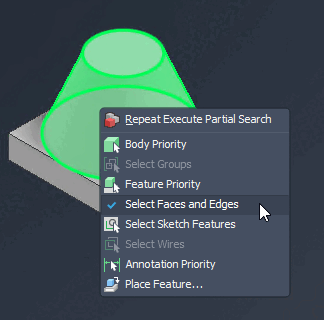

To preselect faces or edges for this function, use SHIFT + right-click in Inventor. Enable "Select Faces and Edges."

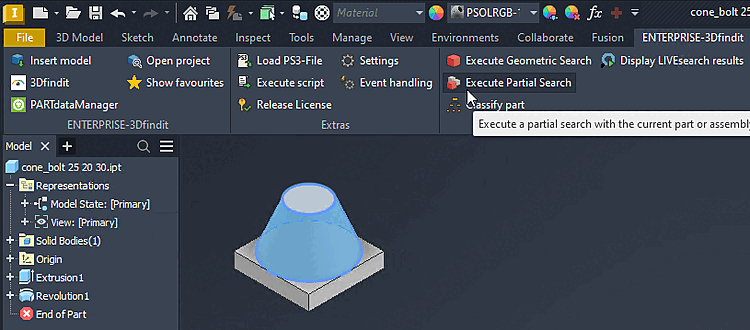

After that, you can simply select a face or edge and launch the Partial Search [Partial search].
For details on partial searches [Partial search], see " Section 3.5.12, “ Perform a partial search ” in ENTERPRISE 3Dfindit - User."
