7.16. Docking window "Dimensions "

7.16.7. Optional parameters Details

7.16.7.1. Correct display of inch variables in dimensionings

The following overview on optional parameters applies for all types of dimensioning and annotation:

Horizontal, vertical and parallel dimensions
Radial dimensions
Angular dimensions
Annotation
Partial notation

The attributes in detail:

Text
Text can be created in different ways:
- {AUTOMATIC}: An automatically generated measurement value (default)
  Example:
```
{AUTOMATIC}
```
- Any text
  Delete the expression "{AUTOMATIC}" and enter the desired text.
- Any text combined with an automatically generated value of dimensioning
  Examples:
  - The degree symbol shall be displayed in addition to the value of dimensioning.

    {AUTOMATIC} °
  - Any PARTdesigner expressions can be used.
    E.g. {partname@variable}: Part name with declaration of variable

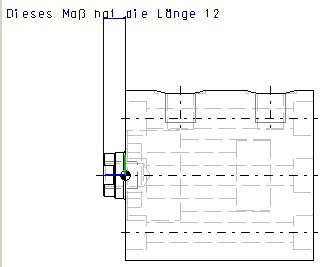

    Dieses Maß hat die Länge {RZ500@D}

    If the automatic calculation of the numerical value does not result in a satisfactory rounding (9.99999), you can use PARTdesigner-Expressions (see Section 14.1, “PARTdesigner-Expressions ”) to select a different calculation (e.g. round, shorten).
    You can also convert from inch to mm and display the unit in addition.
- Correct display of inch variables in dimensionings
Variable mapping

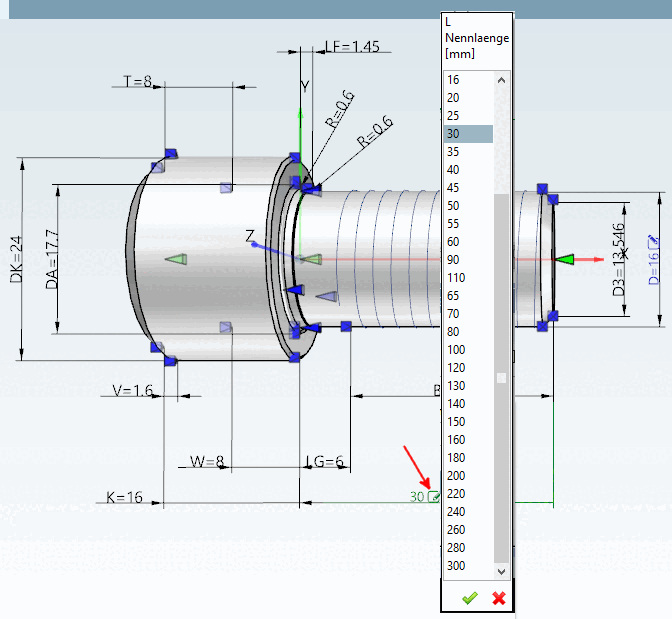

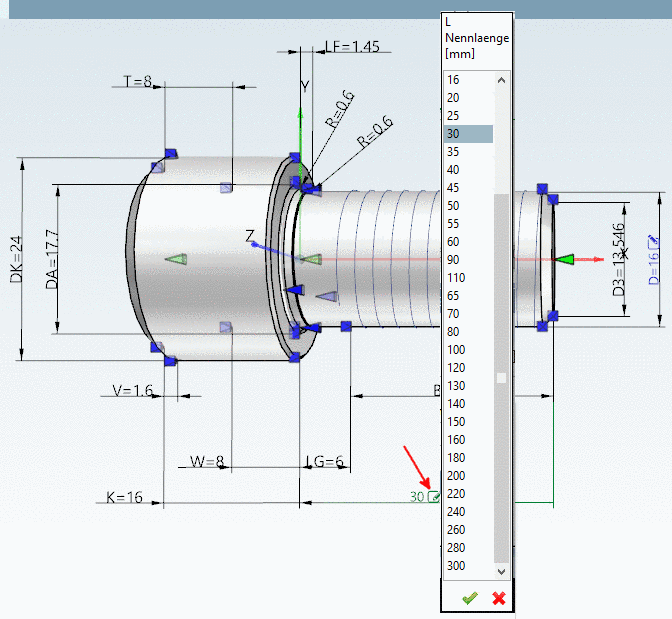

Enter the desired variable here, which should later be editable for user input. Ideally, use the same name that you used under Description. As soon as an entry has been made, the corresponding icon is displayed in the 3D view .
By clicking on the icon icon, you can adjust the characteristics directly in the 3D view.

Section 3.1.7.6.6, “Change characteristic via dimension labels ” in PARTsolutions user manual comparisons under Section 3.1.7.6.6, “Change characteristic via dimension labels ” in PARTsolutions user manual
Font size
If the specification is omitted, 3. 5 is set by default. The unit corresponds to the drawing unit.
Alternatively you can use PARTdesigner Expressions.
Example:
```
 15*RZ500@D/20
```
See Section 14.1, “PARTdesigner-Expressions ”.
Condition
You can use all PARTdesigner expressions for this. See Section 14.1, “PARTdesigner-Expressions ” Section 14.1, “PARTdesigner-Expressions ”
Examples:
```
IF SHORTVIEW@HUB2D=0 THEN AUTOMATIC ELSE AUTOMATIC+HUB-SHORTVIEW@HUB2D ENDIF
```
```
IF SHORTVIEW@HUB2D=0 THEN AUTOMATIC ELSE H2 ENDIF
```

Arrow size / Arrow factor

Note

The arrow size [Arrow size] has a defined relationship to the font size [Font size]. This means that if the font is larger, the arrow is also larger.

The proportionality between font size [Font size] and arrow size [Arrow size] is different in different versions.

9. 04 and older:
=> font size [Font size] 3.5 and arrow size [Arrow size] = 3.5 => "normal" arrow size
9.05 bis 9.07 SP0:
=> font size [Font size] 3.5 and arrow size [Arrow size] = 1 => "normal" arrow size

>= 9.07 SP1:

=> Font size 3.5 and arrow size [Arrow size] = 1 => Arrow size additionally controllable via arrow factor [Arrow factor]

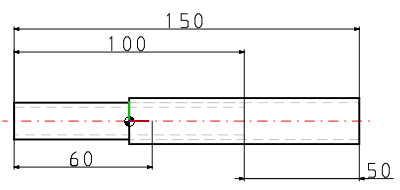

>= V9.07 SP1: Arrow factor = 1

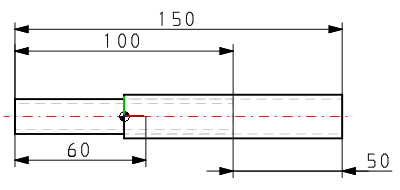

>= V9.07 SP1: Arrow factor = 0

>= 9.08 SP0:

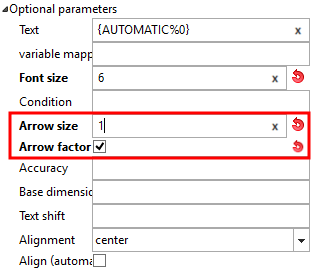

The user interface has been made clearer with V10. There is only one value to be entered under "Arrow size [Arrow size] ". This is applied as a factor to the "Font size [Font size] " if the "Arrow factor [Arrow factor] " option is activated.

Note

For new dimensions created from version >= 9.08 SP0, the arrow factor [Arrow factor] parameter should be used, i.e. the checkbox should be activated.

It is not interpreted by older versions. Versions 9.05 to 9.07 SP0 display normal arrow sizes without a special declaration. Smaller arrows are displayed for versions <= 9.04.

Arrow factor activated: The value under Arrow size [Arrow size] is interpreted as a factor. The font size (if no value is entered, 3.5 is used automatically) is multiplied by the factor.
The input may be a simple value.
```
0.5
```
Alternatively, the specification can be made with PARTdesigner-Expression.
```
15*RZ500@D/20
```
Arrow factor [Arrow factor] deactivated: The value under Arrow size is used according to the "old" proportionality of font size [Font size] and arrow size [Arrow size].

All statements concern the automatic dimensioning described here, but not the interactive dimensioning via toolbar.

Arrow position
With this function you can flip arrows to the other side of dimensioning lines while text is kept centered at the same time (due to lack of space).

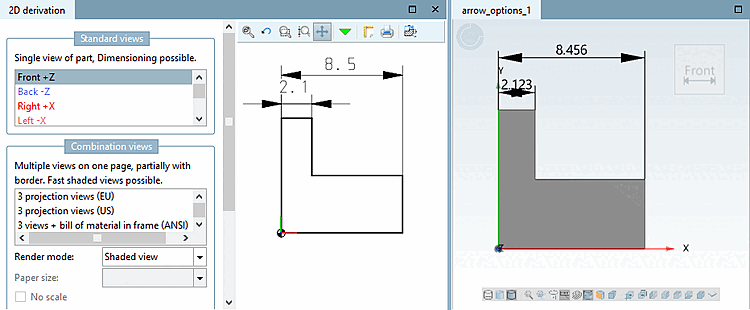

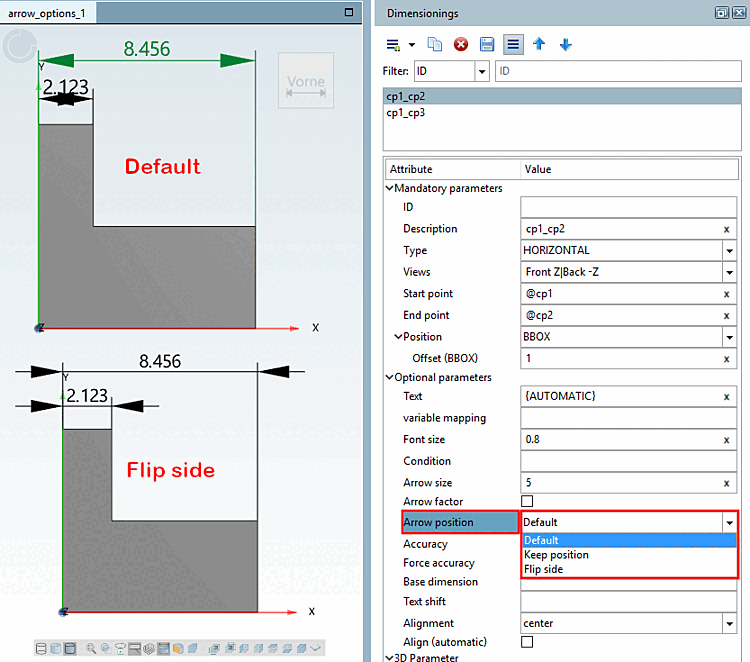

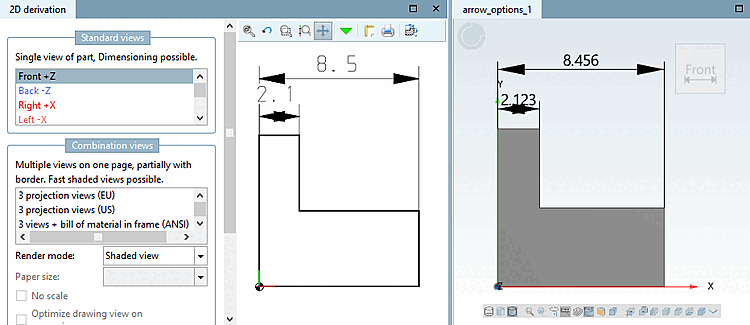

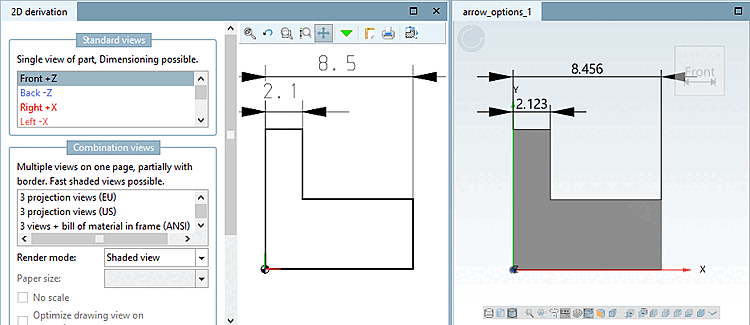

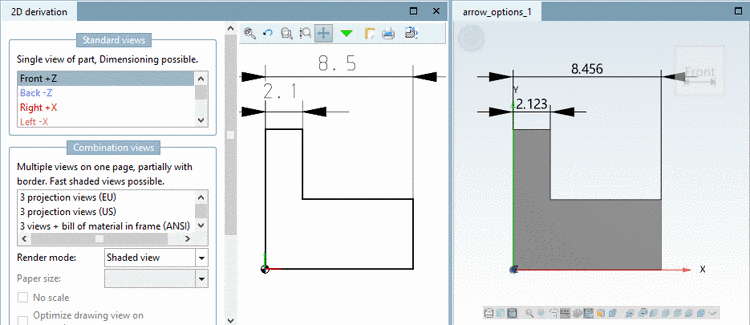

New "Arrow page [Arrow position] " option
- Standard [Default]:
  In 3D, arrows and text are inside the dimensioning lines.
  In 2D as well. However, when there is a lack of space the arrows will automatically switch to the outside.
  This behavior corresponds to that of previous versions both in 3D and 2D.

  Keep in mind that this depiction is basically used in previous versions.
- Hold [Keep position] page: Arrows keep their position in any case, both in 3D and 2D.
- Change page [Flip side]: The arrows switch to the other page, the text remains centered, both in 3D and 2D.
Accuracy
The value specifies how accurate a numerical value on the dimensioning arrow has to be.
- 1: No decimal places (default)
- 0,1: one decimal place
- 0,01: two decimal places
- etc.
