2.4.  Add row

In order not to have to define all the rows that belong to the part during the training, they are already created in a file which will be imported later on.

For the sake of training, just define one row:

  1. Click on the button Add row .

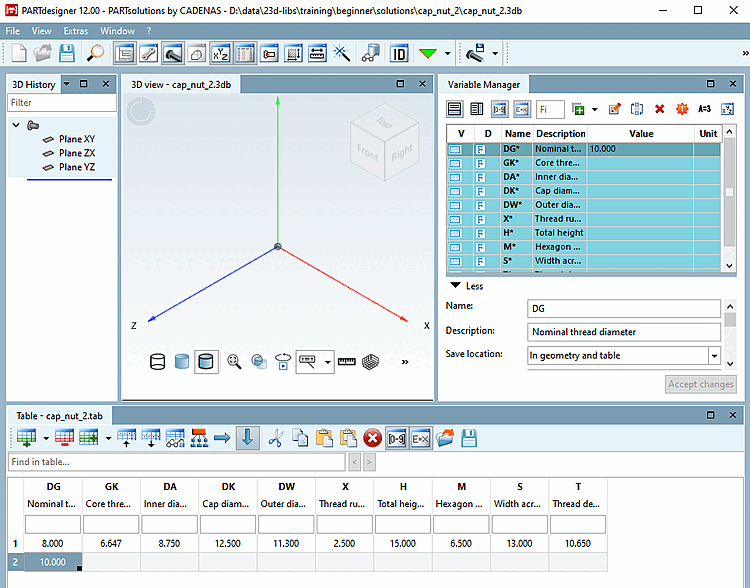

    -> A new row is added to the bottom of the table.

  2. Click the Column “NENN“ in the new Row and enter ”M5“.

  3. Enter all other values (see table of the foldout image) into the fields of the new row.

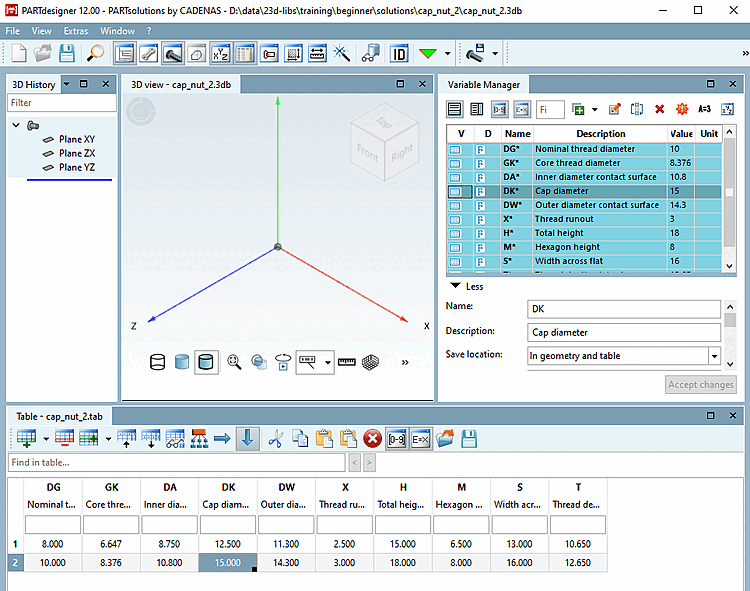

-> The table should now look as follows:
