The Variable assignment tabbed page shows up only for Project type "Assembly table".

In order to launch assemblies in the PARTdataManager as well a project - after single components and assemblies have already been created - of type "Assembly table " (asmtab.tac) is applied. For more information see under Erstellen eines Assembly-Tabellen-Projektes - Beispiel 2.

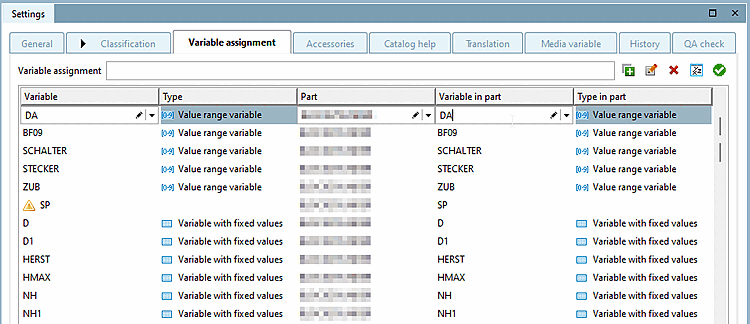

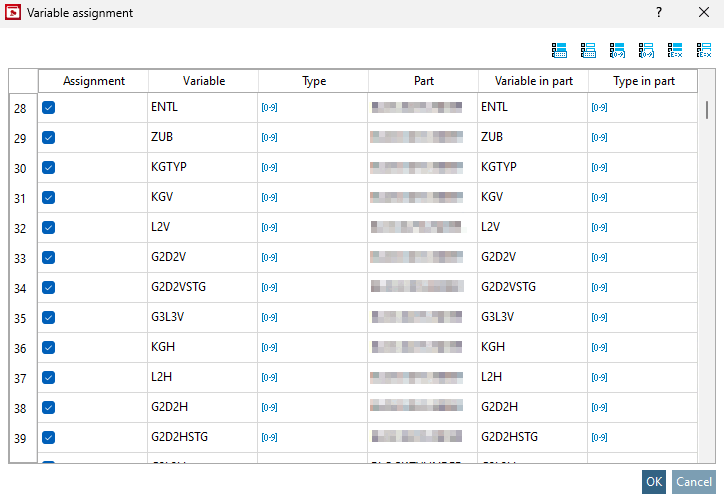

On the Variable assignment tabbed page the exact allocation of variables in the assembly table and the variable in the part can be read and edited. (Possibly needed when making changes to variable names.)
