3.1.19.2.2.1.  Transfer to CAD

The export command Transfer to CAD can be opened via the toolbar as well as via the menu.

Toolbar: Transfer to CAD

Toolbar: Transfer to CAD

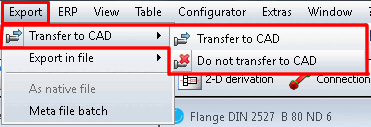

Menu: Transfer to CAD

Menu: Transfer to CAD

  • Transfer to CAD exports the selected object to the CAD system from which you have opened the PARTdataManager.

  • Do not transfer to CAD: Minimizes the PARTdataManager so that the CAD system comes back to the front. No export occurs.

Basic information regarding Export can be found under Section 3.1.8, “ Export to CAD (with and without interface) ”.
