2.3.7.2.2.2. Adding new keys

In the following example a key should be added which also shows up as additional attribute under Parameter.

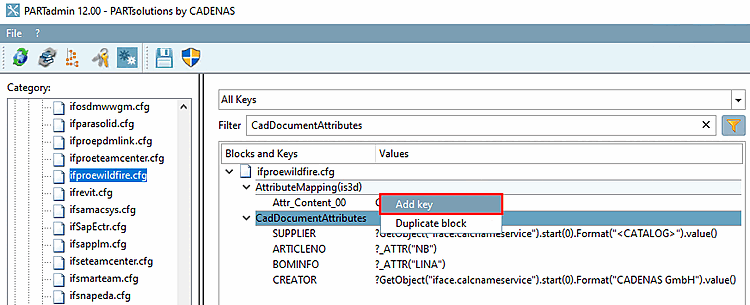

  1. Under PARTadmin -> Category -> PARTsolutions -> Configuration files -> $CADENAS_SETUP -> ifproewildfire.cfg open the block CadDocumentAttributes.

    Creo: Parameter

    Creo: Parameter

  2. Insert a key.

  3. Save the settings in PARTadmin.

  4. Export the part to Creo.

    -> The added key now shows up as a further attribute on the Parameter dialog page.

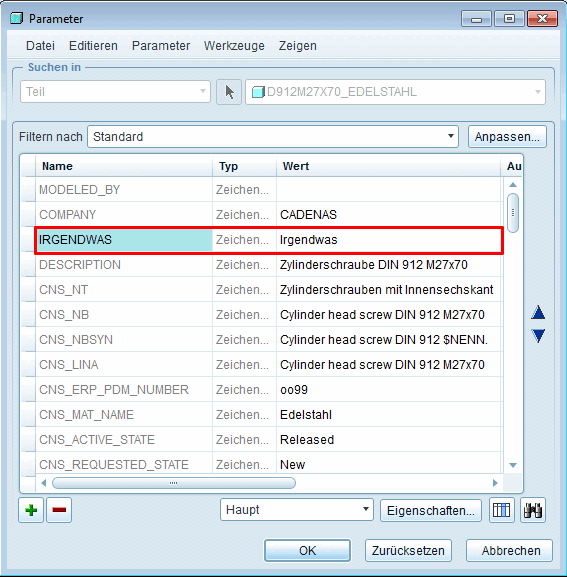

    Creo: Parameter - Extra attribute

    Creo: Parameter - Extra attribute
